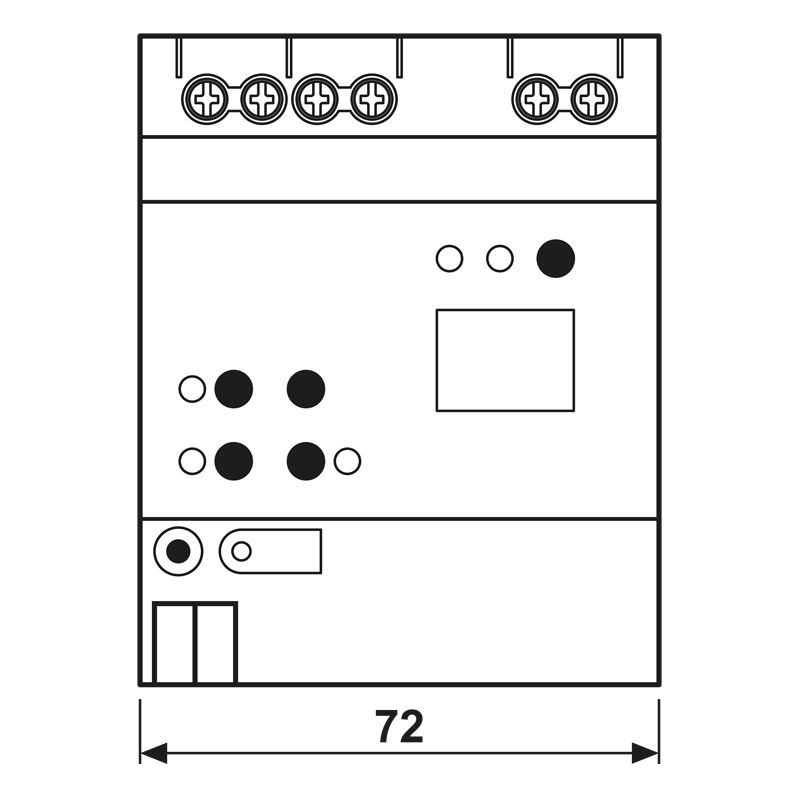

KNX DALI-2 gateway Colour 2-gang, rail mounting device, 4 rail units, Secure

30128 1S DA2 R

rail mounting device, 4 rail units

Intended use

Controlling of luminaires and other applications with DALI operating device in KNX installations e.g. electronic ballast
Mounting on DIN rail according to EN 60715 in distribution box

Product characteristics

DALI-2 certified
Control of max. 2x 64 DALI devices in max. 2x 32 groups
Setting of colour temperature or light colour (RGB, RGBW) for luminaires with DALI Device Type 8 acc. to IEC 62386-209
Short-circuit, overload and overvoltage protected
Operating hours counter
Automatic colour circle pass or brightness pass
HCL mode (Human Centric Lighting), automatic daytime colour temperature gradient
CT (Colour Transition) mode, automatic day colour gradient
Suitable for operation with DC voltage of emergency lighting systems
Individual, group or central addressing
16 light scenes per DALI system
Read out DALI device state via KNX, e.g. brightness or luminaire error
Manual operation of the DALI groups, individual devices or central (broadcast) separately for each DALI system
Forced guidance of disabling function
Feedback of switching state and brightness value in bus and manual operation
Collective feedback
Central switching and dimming function
Disabling function for each DALI group or each individual device
Separate ON and OFF delay
Staircase lighting timer with switch-off warning
Online or offline project design of the DALI devices with ETS-DCA
Standby switch-off of the DALI devices
Replacement of a single DALI device of the same type, during operation, possible without software
KNX Data Secure compatible with ETS 5.7.7 or ETS 6.3.0 or higher
Can be updated with the ETS Service App

As of device version V01 or software version V2.0.8:

Read less... Read more...

Article number:	30128 1S DA2 R
EAN/GTIN:	4011377207080

Read less... Read more...

KNX
KNX medium:	TP 256
Commissioning mode:	S-mode
Rated voltage KNX:	DC 21 ... 32 V SELV
Current consumption KNX:	4.5 ... 5 mA
Connection, KNX:	connection terminal
Power supply
Rated voltage:	AC 110 ... 240 V ~, 50/60 Hz
Rated voltage:	DC 110 ... 240 V
Power loss:	max. 3 W
DALI
Rated voltage DALI:	DC 16 V
Output current per DALI system:	typical 128 mA, max. 250 mA for short periods
Guaranteed bus current per DALI system:	148 mA
Addressable DALI operating devices:	max. 64 per DALI system
Addressable DALI sensors:	max. 32 per DALI system
DALI transmission rate:	1.2 kbit/s
DALI protocol:	EN 62386
Starting time:	max. 20 s
Cable type:	sheathed cable 230 V, e,g. NYM
Cable length DALI
with 0.5 mm²:	max. 116 m
with 0.75 mm²:	max. 174 m
with 1.0 mm²:	max. 238 m
with 1.5 mm²:	max. 300 m
Ambient conditions
Ambient temperature:	−5 ... +45 °C
Storage temperature:	−5 ... +45 °C
Transport temperature:	−25 ... +70 °C
Mounting width:	72 mm (4 rail units)
Connection, power supply and DALI
Connection mode:	screw terminals
single wire:	0.5 ... 4.0 mm²
stranded without ferrule:	0.5 ... 4.0 mm²
stranded with ferrule:	0.5 ... 2.5 mm²

Read less... Read more...

Downloads

Operating instructions	EN Select language Select language DE FR IT NL NO PT RU SE ZH
Product documentation	EN Select language Select language DE ES
Release notes	EN Select language Select language DE
Database ETS5 + ETS6	EN Select language Select language DE ES FR IT NL RU
ETS App	EN Select language Select language DE ES FR IT NL RU
Update	EN Select language Select language DE
CAD (dwg)
CAD (stp)
EPLAN Makro
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
