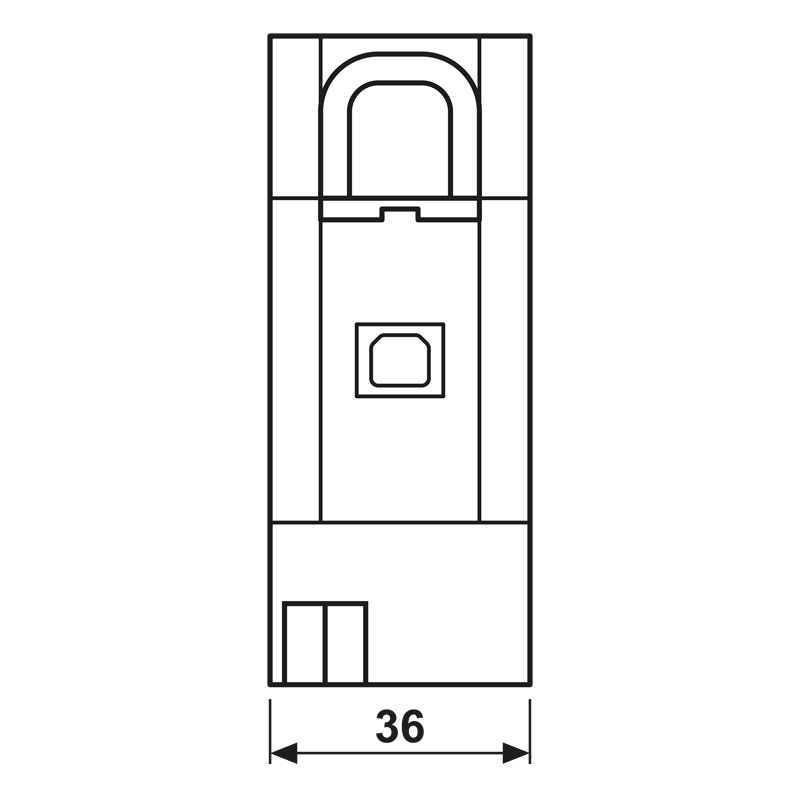

KNX USB data interface, rail mounting device, 2 rail units
2131 USBS REG
rail mounting device, 2 rail units
Intended use
Product characteristics
Intended use
- Connecting PCs to KNX systems
- Addressing, programming and diagnostics of KNX devices
- KNX Data Secure compatible with ETS 5.7.3 or higher
- Support of long frames for ETS5
- Mounting on DIN rail according to EN 60715 in distribution box
Product characteristics
- Connection with device connection terminal
- Electrical isolation of KNX and USB
- Temporary operation in unmounted condition permissible
- The firmware in the USB data interface can be updated via the ETS product database
- Power supply exclusively via the USB port
Read less...
Read more...
Information
| Article number: | 2131 USBS REG |
|---|---|
| EAN/GTIN: | 4011377171770 |
Read less...
Read more...
Technical data
| KNX medium: | TP 256 |
| Power supply: | via USB port of the PC |
| Connection | |
| Connection, KNX: | connection terminal |
| USB port: | USB port, type B |
| Transfer rate: | 9600 Baud |
| Transmission protocol: | compatible with USB 1.1/2.0 |
| Length of USB cable: | max. 5 m |
| Ambient temperature: | −5 ... +45 °C |
| Storage temperature: | −25 ... +70 °C |
| Protection class: | II |
| Mounting width: | 36 mm (2 rail units) |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Product documentation | |
| Release notes | |
| Database ETS5 + ETS6 Secure | |
| CAD (dwg) | |
| CAD (stp) | |
| EPLAN Makro | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.095 KG |
| Length | 90 MM |
| Height | 77 MM |
| Width | 55 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.095 KG |
| Length | 90 MM |
| Height | 77 MM |
| Width | 55 MM |
