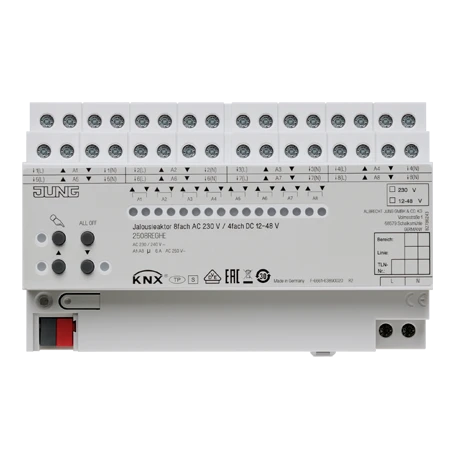

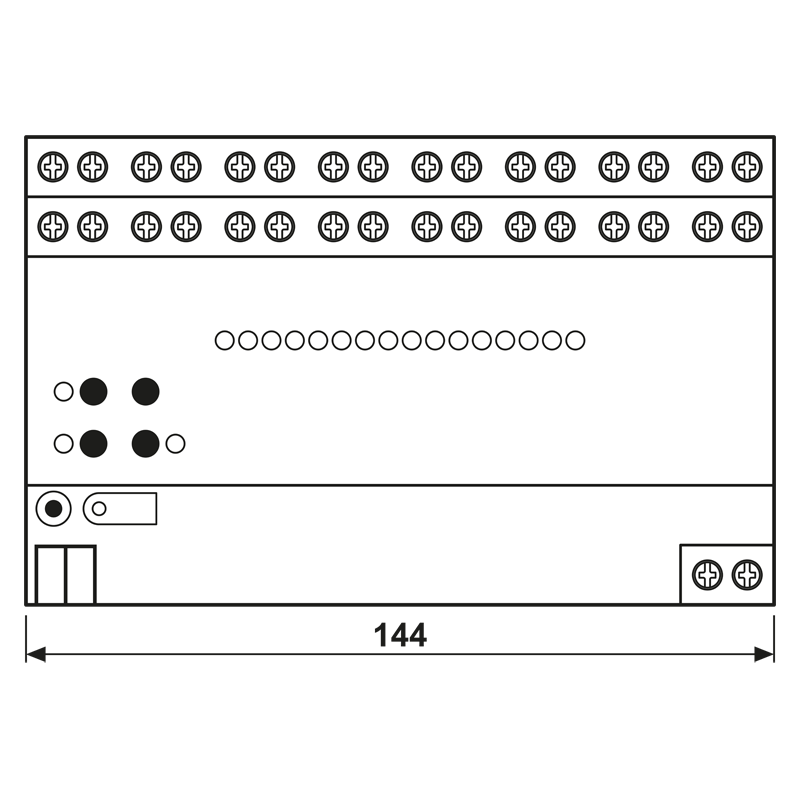

KNX blinds actuator, 8-gang AC 110-230 V, 4-gang DC 12-48 V, rail mounting device, 8 rail units
2508 REGHE
rail mounting device, 8 rail units
with manual electronic operation and LED status indication
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Shutter
Product type: Shutter
Intended use
Product characteristics
with manual electronic operation and LED status indication
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Shutter
Product type: Shutter
Intended use
- Switching of electrically driven blinds, shutters and awnings for AC 110-230 V mains voltage or DC 12-48 V extra-low voltage
- Mounting on DIN rail in distribution box
Product characteristics
- Suitable for 110 ... 230 V AC motors and 12 ... 48 V DC motors
- Automatic operation time detection for 230 V motors can be set
- Slat position directly controllable
- Acknowledgement of travelling state and slat position in bus and manual operation
- Scene function
- Top and bottom forced position via higher-level controller
- Sun protection function
Read less...
Read more...
Information
| Article number: | 2508 REGHE |
|---|---|
| EAN/GTIN: | 4011377031012 |
Read less...
Read more...
Technical data
| KNX medium: | TP 256 |
| Outputs: | 8 channels AC 110 ... 230 V, 4 channels DC 12 ... 48 V |
| Power supply mains: | AC 110 V (−10 %) ... 240 V (+10 %) |
| Mains frequency: | 50/60 Hz |
| Connection | |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.5 ... 4 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4 mm² |
| stranded with ferrule: | 1 x 0.5 ... 2.5 mm² |
| Breaking capacity AC1: | 6 A (230 V) |
| Switching current DC 12/24 V: | 6 A |
| Switching current DC 48 V: | 3 A |
| Max. blind/shutter running time: | 20 min |
| Power loss: | max. 6 W |
| Ambient temperature: | −5 ... +45 °C |
| Storage temperature: | −25 ... +70 °C |
| Approvals: | VDE |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Database ETS2 + ETS3 | |
| Product documentation | |
| Database ETS3d + ETS4 + ETS5 | |
| CAD (dwg) | |
| CAD (stp) | |
| EPLAN Makro | |
| EPLAN Makro | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
