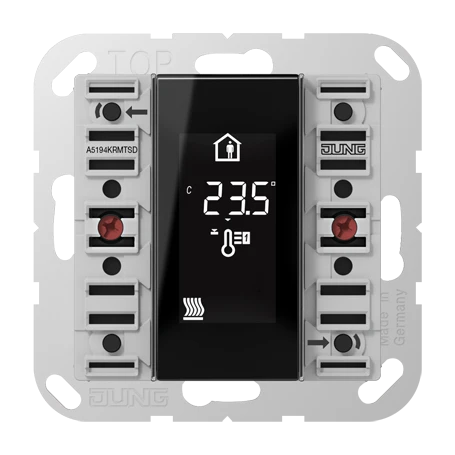

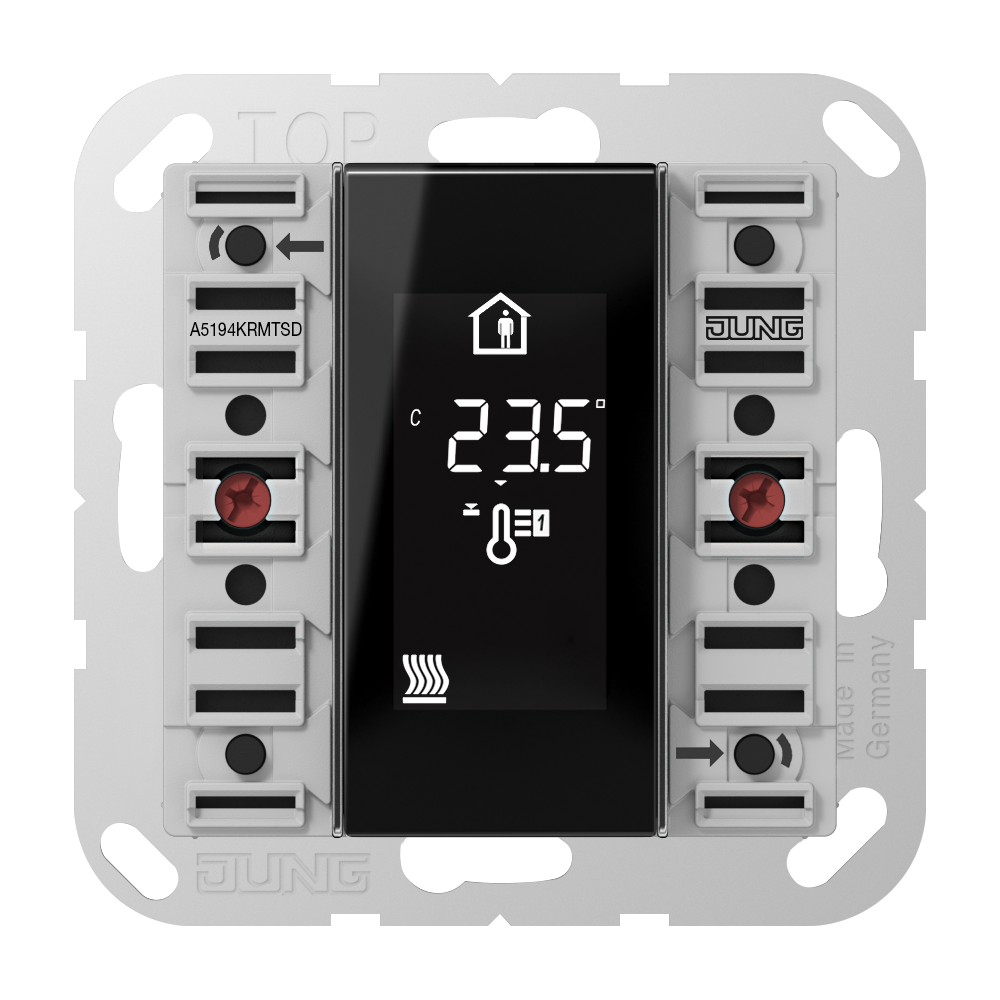

KNX room controller display compact module, 4-gang, F50, AS/A range
A 5194 KRM TS D

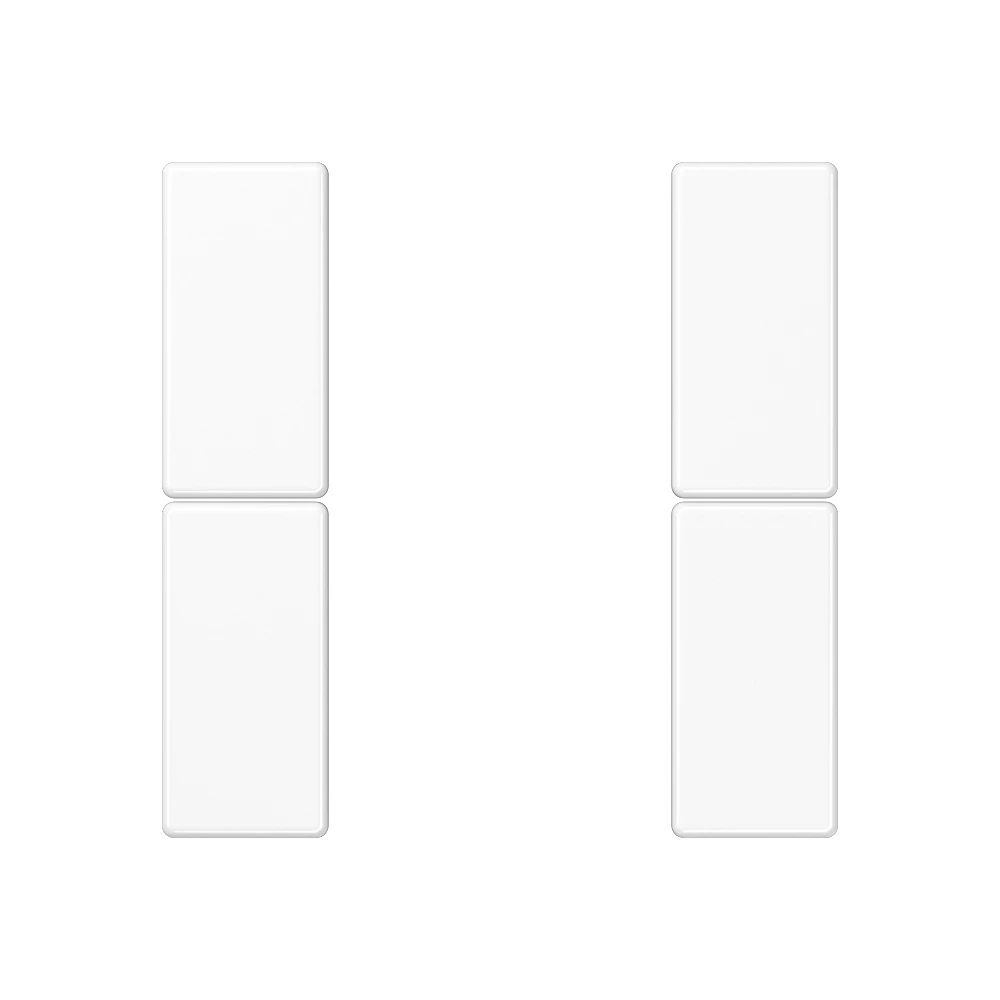

for cover kit 4-gang, ref.-no.: A 504 TSA ..
can be extended by means of a room controller extension module, ref.-no.: A 5178 TSEM
can be extended by means of a push-button extension module, ref.-no.: A 509.. TSEM
Intended use
Product characteristics
All buttons can be assigned with push-button sensor functions or functions for controller operation.
Accessories:
Accessories:
external sensor ref.-no.: FF NTC
can be extended by means of a room controller extension module, ref.-no.: A 5178 TSEM
can be extended by means of a push-button extension module, ref.-no.: A 509.. TSEM
Intended use
- Measurement and feedback control of the room temperature
- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
- Installation in flush box with dimensions according to DIN 49073
Product characteristics
All buttons can be assigned with push-button sensor functions or functions for controller operation.
- KNX medium: TP 256
- Backlit LC display
- One or two functions per button
- To be completed with cover kit
- Eight status LEDs – red, green or blue
- Brightness of status LEDs and LCD adjustable
- Integrated bus coupling unit
- Connection of extension modules
- Integrated room temperature sensor
- External temperature sensor (ref.-no.: FF NTC) can be connected
- Room temperature control with setpoint specification
- Two internal independent controllers for two independent areas – in connection with extension modules
- Display of room or set temperature (°C or °F)
- Display of outdoor temperature – with external sensor, e.g. weather station
- Display of time, in conjunction with KNX time encoder (in menu level)
- Button function or rocker function
- Disabling function: Disabling or change function mode of single or all button functions
- Alarm function, optional acknowledge by pressing any button
Accessories:
Accessories:
external sensor ref.-no.: FF NTC
Read less...
Read more...
Information
| Article number: | A 5194 KRM TS D |
|---|---|
| EAN/GTIN: | 4011377121744 |
| xFach Modul: | 4-gang |
| Successors | Art. No. A 5292 D 1ST |
Read less...
Read more...
Technical data
| Recommended mounting height: | 1.5 m |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Product documentation | |
| Product documentation | |
| Release notes | |
| Database ETS4 + ETS5 + ETS6 | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.072 KG |
| Length | 82 MM |
| Height | 45 MM |
| Width | 82 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 0.718 KG |
| Length | 235 MM |
| Height | 92 MM |
| Width | 175 MM |
