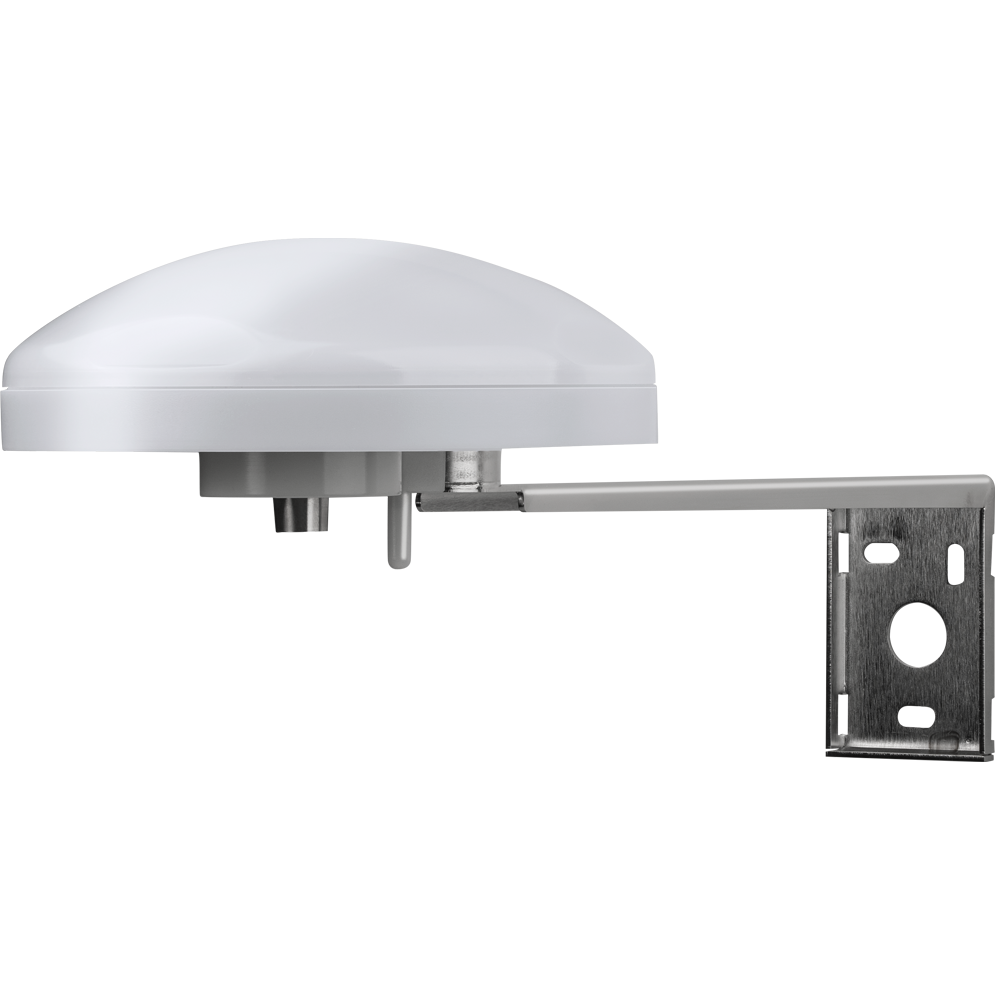

KNX universal weather station
2225 WS U
compact housing
including fastening arm and connection cable
ETS product family: Physical sensors
Product type: Weather station
Intended use
Product characteristics
The weather station needs an operating voltage supply of 24 V AC, for example power supply module ref.-no. WSSV 10.
Spare part:
fastening arm ref.-no.: 2225 BFA
including fastening arm and connection cable
ETS product family: Physical sensors
Product type: Weather station
Intended use
- Measurement and evaluation of weather data: wind speed, wind direction, precipitation, brightness, global radiation, twilight, temperature, relative air humidity and air pressure
- Installation on the outside of buildings, preferable in the roof and facade area
- Operation with additional power supply (ref.-no.: WSSV 10)
Product characteristics
- Integrated GPS/GLONASS receiver for automated positioning
- Calculation of additional weather data: absolute air humidity, chill temperature, comfort
- Function for shading control
- Integrated bus coupling unit
- Measuring and limit value monitoring
- Software logic modules for linking events
- Integrated heating
The weather station needs an operating voltage supply of 24 V AC, for example power supply module ref.-no. WSSV 10.
Spare part:
fastening arm ref.-no.: 2225 BFA
Read less...
Read more...
Der Schutzgrad IP44 ist gewährleistet (in Gebrauchslage).
Information
| Article number: | 2225 WS U |
|---|---|
| EAN/GTIN: | 4011377127562 |
Read less...
Read more...
Technical data
| Power supply | |
| Rated voltage: | AC 24 V SELV (± 10 %) DC 21 ... 32 V SELV |
| Current consumption: | 100 ... 400 mA (dependent on the weather) |
| Protection class: | III |
| Cable type: | LiYCY 4xAWG26 |
| Cable length: | 5 m |
| Total length per line: | 15 m |
| Number of weather stations: | max. 3 (per line) |
| KNX medium: | TP 256 |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | max. 5 mA |
| Ambient temperature: | −30 ... +60 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| Degree of protection: | IP44 |
| Dimensions (Ø x H): | 130 x 68 mm |
| Wind direction sensor | |
| Measuring range: | 1 ... 360° |
| Resolution: | 1° |
| Accuracy: | ± 10 % (laminar wind stream) |
| Wind speed sensor | |
| Measuring range: | approx. 0 ... 40 m/s |
| Resolution: | 0.1 m/s |
| Accuracy (≤ 10 m/s): | ± 1 m/s |
| Accuracy (> 10 m/s): | ± 5 % |
| Temperature sensor | |
| Measuring range: | −30 ... +60 °C |
| Resolution: | 0.1 K |
| Accuracy: | ± 1 K (wind > 2 m/s, for −5 ... +25 °C) |
| Precipitation sensor | |
| Measuring range: | yes / no |
| Accuracy: | fine drizzle |
| Brightness sensors | |
| Number: | 4 |
| Measuring range: | approx. 0 ... 150 klx |
| Resolution: | 1 klx |
| Accuracy: | ± 3 % |
| Spectral range: | 475 ... 650 nm |
| Dawn sensor | |
| Measuring range: | approx. 0 ... 900 lx |
| Resolution: | 1 lx |
| Accuracy: | ± 10 lx |
| Air pressure sensor | |
| Measuring range: | 300 ... 1100 hPa |
| Resolution: | 0.01 hPa |
| Accuracy: | ± 0.5 hPa (20 °C) |
| Humidity sensor | |
| Measuring range: | 0 ... 100 % relative humidity (r. h.) |
| Resolution: | 0.1 % relative humidity (r. h.) |
| Accuracy: | ± 10 % rel. humidity (20 °C) |
| Absolute humidity: | 0 ... 400 g/m³ |
| Resolution: | 0.01 g/m³ |
| Global radiation | |
| Measuring range: | 0 ... 1300 W/m² |
| Resolution: | 1 W/m² |
| Accuracy: | ± 10 % |
| Spectral range: | 350 ... 1100 nm |
| All accuracy specifications relate to the respective measuring range end value. | |
