DALI-2 single-masterIntended use- Brightness setting for luminaires with DALI interface
- Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
- Installation in flush box with dimensions according to DIN 49073

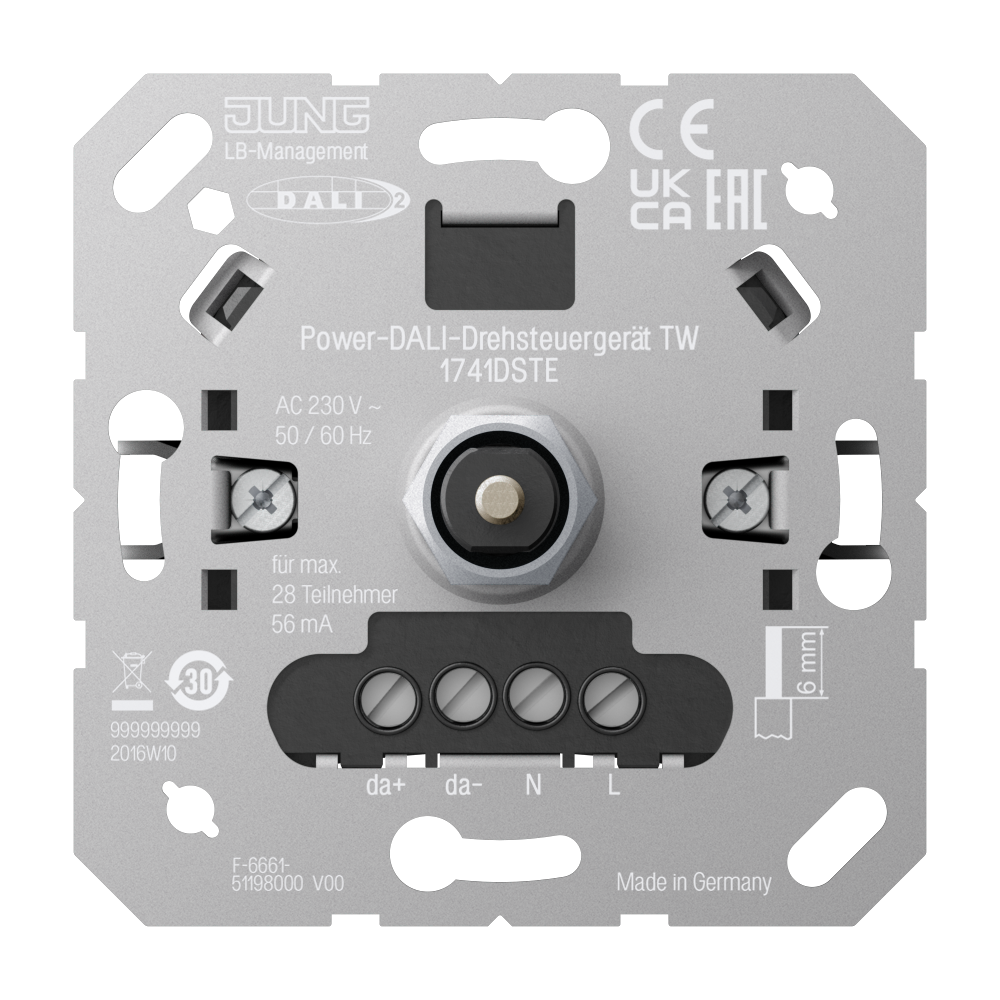

Product characteristics- The Power DALI rotary controller TW supplies the control current for up to 28 DALI devices.
- Saving of colour temperature limiting values
- Saving of basic brightness and switch-on brightness
- Certified acc. to IEC 62386-101 and -103 (Single Master)
- The device functions as a DALI-2 single-master and should not be combined with other DALI controllers

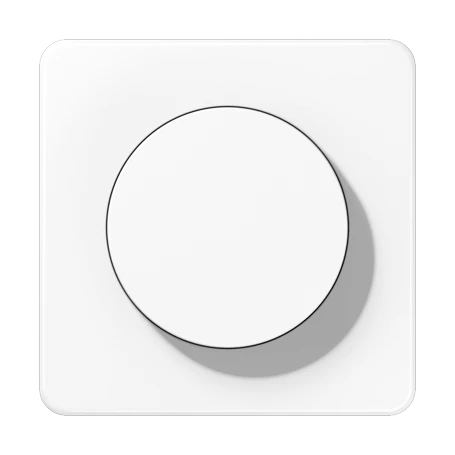

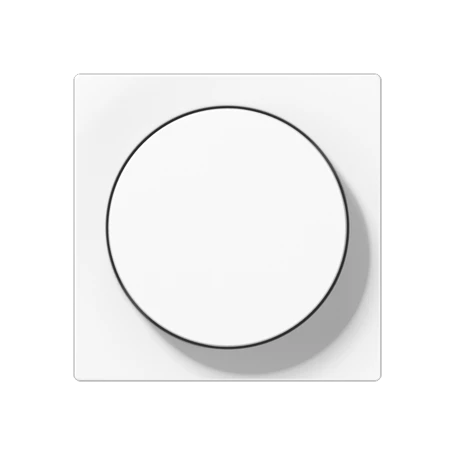

Centre plates:AS / A ranges: ref.-no. A 1740 ..
CD range: ref.-no. CD 1740 ..
LS range: ref.-no. LS 1740 .., .. 1740 ..
