Power supply for wireless charging

WC 230-15

Power supply for wireless charging
arrow-slider
arrow-slider
  • Power supply for wireless charging
arrow-left-slim
arrow-right-slim
  • Power supply for wireless charging
WC 230-15
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim

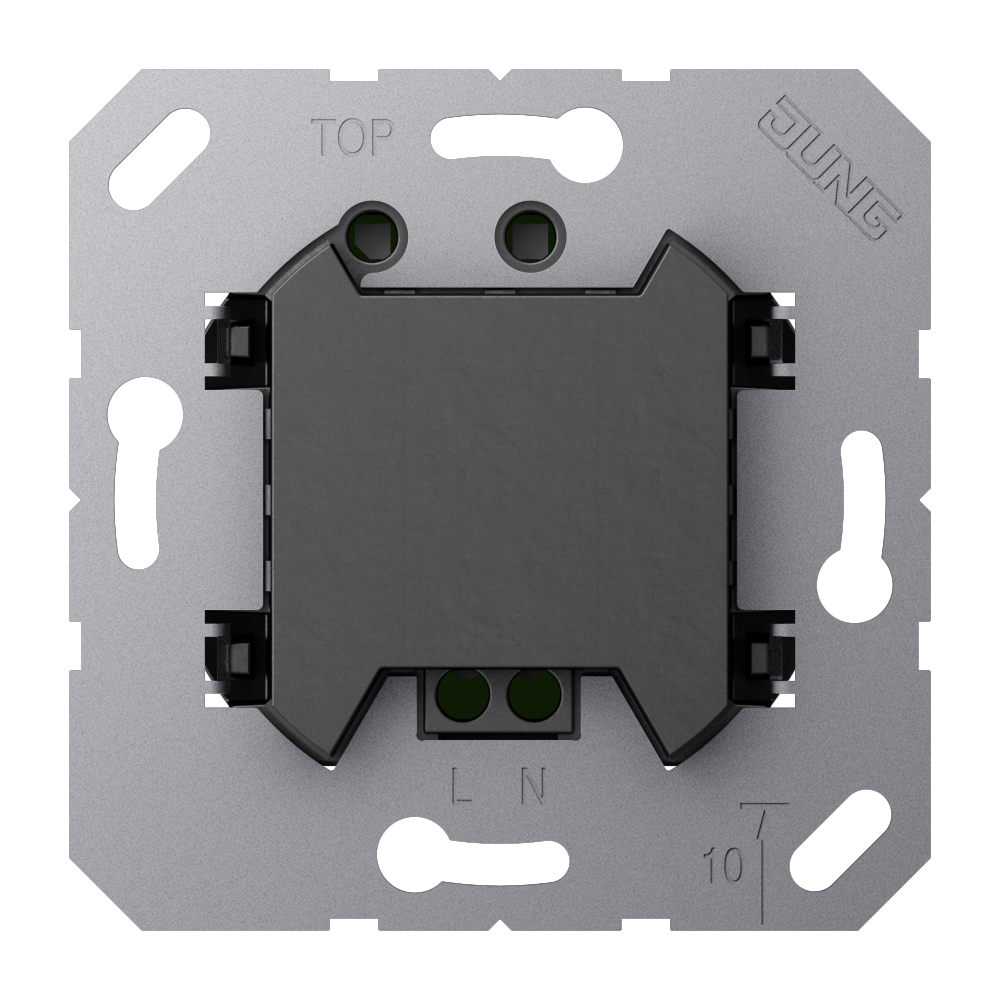

  • Power supply for wireless charging
screw fixing only, without claws

Intended use
  • Wireless charging station for batteries (rechargeable) of mobile devices with magnetic attachment
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics
  • Inductive charging according to Qi2 standard
  • High charging efficiency is ensured by magnetic alignment with MagSafe
  • Charging capacity up to 15 W
Read less... Read more...
new
BPIK_Elektrogeraete_Ruecknahme

Information

Article number: WC 230-15
EAN/GTIN: 4011377362819
Read less... Read more...

Technical data

Rated voltage:AC 220 ... 230 V ~
Mains frequency:50/60 Hz
Ambient temperature:−5 ... +35 °C
Storage/transport temperature:−20 ... +70 °C
Connectionscrew terminals
Terminals for:0.25 ... 2.5 mm²
Output voltage:DC 9 V
Output current:2.2 A
Charging capacity:max. 15 W
Stand-by power:< 0.1 W
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FR
NL
NO
RU
ZH
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AT
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.008 KG
Length 71 MM
Height 33 MM
Width 71 MM
Carton
Packaging unit 1 pc.
Weight 0.109 KG
Length 85 MM
Height 73 MM
Width 85 MM
Read less... Read more...
