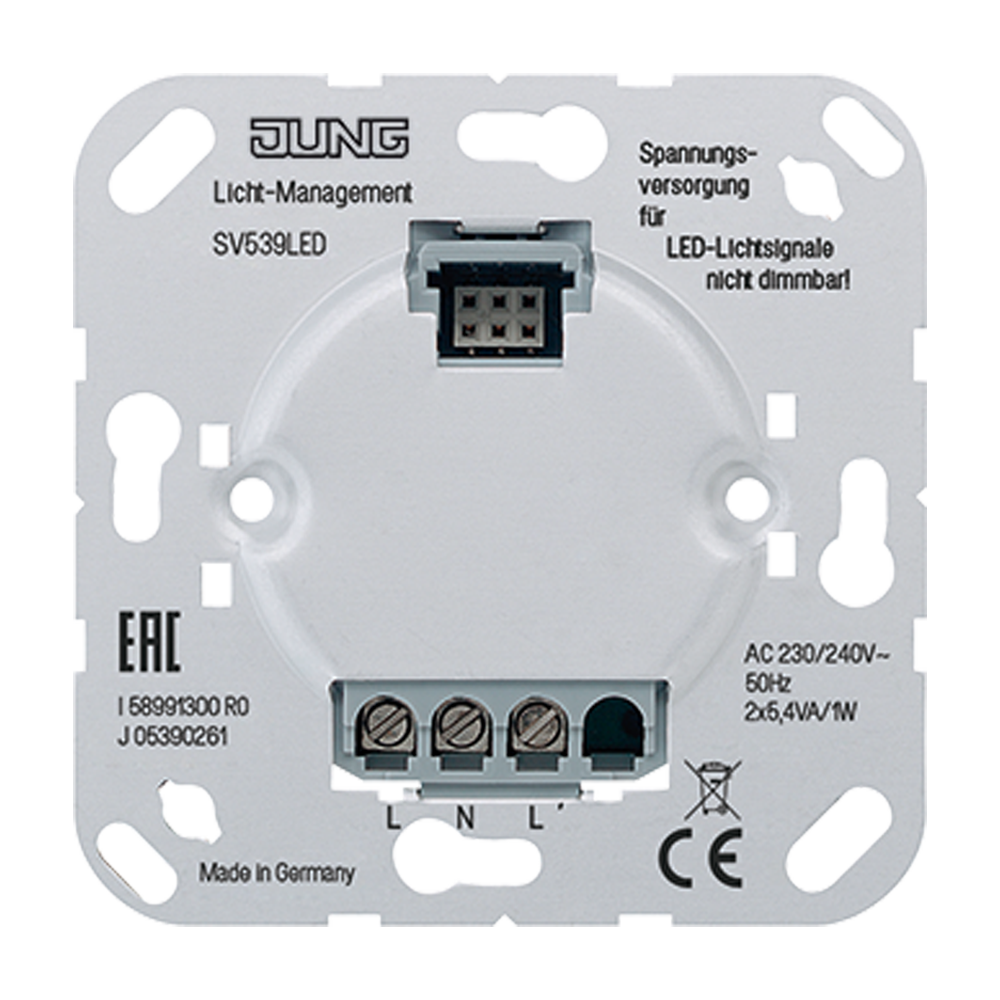

Power supply insert, for LED pilot lights, AC 230 V ~

SV 539 LED

Power supply insert, for LED pilot lights, AC 230 V ~
arrow-slider
arrow-slider
  • Power supply insert, for LED pilot lights, AC 230 V ~
arrow-left-slim
arrow-right-slim
  • Power supply insert, for LED pilot lights, AC 230 V ~
SV 539 LED
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • Power supply insert, for LED pilot lights, AC 230 V ~
screw fixing only, without claws
The LED power supply insert is exclusively used for LED pilot light and LED info signs (ref.-no. ..539..).
The device is not dimmable.
Read less... Read more...
BPIK_Elektrogeraete_Ruecknahme

Information

Article number: SV 539 LED
EAN/GTIN: 4011377992986
Read less... Read more...

Technical data

Rated voltage:AC 230 ... 240 V ~
Mains frequency:50 Hz
Ambient temperature:0 ... +40 °C
Terminals:L, N, L'
Protection class (with mounted cover):II
Power consumption (with mounted cover):typ. 2 x 5.4 VA / 2 x 1.0 W
Connectionscrew terminals
Terminals for:2 x 2.5 mm² or 1 x 4 mm²
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
NL
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AT
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.057 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.668 KG
Length 235 MM
Height 92 MM
Width 175 MM
Outer carton
Packaging unit 100 pc.
Weight 7.141 KG
Length 460 MM
Height 245 MM
Width 360 MM
Read less... Read more...
