LB Management
//
Switch

Pulse insert

1708 IE

Pulse insert
arrow-slider
arrow-slider
  • Pulse insert
arrow-left-slim
arrow-right-slim
  • Pulse insert
1708 IE
arrow-left-slim
arrow-right-slim
  • Pulse insert
for covers LB Management ref.-no.: .. 1700 .., .. 17180 .., .. 17280 ..

Intended use
  • Manual or automatic control of the power unit ref.-no. 1208 REG
  • Operation with suitable cover
  • Installation in flush box with dimensions according to DIN 49073

Product characteristics
  • Manual switching in combination with LB Management push-button 1-gang ref.-no.: .. 1700 .., .. 1700 P ..
  • Automatic switching in combination with motion detectors of the LB Management
  • Operation in 3- or 4-conductor circuit
  • Insert designed with 2-wire technology
Read less... Read more...

Information

Article number: 1708 IE
EAN/GTIN: 4011377166967
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50 Hz
Power consumption:0.25 ... 0.45 W
Current consumption:approx. 2.8 mA
Ambient temperature:−5 ... +45 °C
Pulse duration:approx. 60 ms
Pulse interval:approx. 8 s
Connectionscrew terminals
single wire:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded without ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded with ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 1.5 mm²
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 99 G
Length 80 MM
Height 80 MM
Width 40 MM
Carton
Packaging unit 10 pc.
Weight 1.117 KG
Length 220 MM
Height 87 MM
Width 170 MM
Outer carton
Packaging unit 100 pc.
Weight 8.641 KG
Length 460 MM
Height 245 MM
Width 360 MM
Read less... Read more...

Covers

All products
LS 1700 WW

LB Management push-button, white
LB Management push-button, white
AS 1700 WW

LB Management push-button, white
LB Management push-button, white
A 1700 WW

LB Management push-button, white
LB Management push-button, white
A 1700 BF WW

LB Management push-button, Thermoplastic, white
LB Management push-button, Thermoplastic, white

Covers

LS 1700 WW

LB Management push-button, white
LB Management push-button, white
AS 1700 WW

LB Management push-button, white
LB Management push-button, white
A 1700 WW

LB Management push-button, white
LB Management push-button, white
A 1700 BF WW

LB Management push-button, Thermoplastic, white
LB Management push-button, Thermoplastic, white
CD 1700 WW

LB Management push-button, white
LB Management push-button, white
LS 17180 WW

LB Management motion detector (SENS.), Standard, 1.10 m, white
LB Management motion detector (SENS.), Standard, 1.10 m, white
LS 17182 WW

LB Management motion detector (TIME), Standard, 1.10 m, white
LB Management motion detector (TIME), Standard, 1.10 m, white
LS 17180 WU WW

LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
LS 17280 WW

LB Management motion detector, Standard, 2.20 m, white
LB Management motion detector, Standard, 2.20 m, white
A 17182 WW

LB Management motion detector (TIME), Standard, 1.10 m, white
LB Management motion detector (TIME), Standard, 1.10 m, white
A 17180 WU WW

LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
A 17180 WW

LB Management motion detector (SENS.), Standard, 1.10 m, white
LB Management motion detector (SENS.), Standard, 1.10 m, white
A 17280 WW

LB Management motion detector, Standard, 2.20 m, white
LB Management motion detector, Standard, 2.20 m, white
CD 17182 WW

LB Management motion detector (TIME), Standard, 1.10 m, white
LB Management motion detector (TIME), Standard, 1.10 m, white
CD 17180 WU WW

LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
LB Management motion detector (SENS.), Standard, IP 44, 1.10 m, white
CD 17180 WW

LB Management motion detector (SENS.), Standard, 1.10 m, white
LB Management motion detector (SENS.), Standard, 1.10 m, white
CD 17280 WW

LB Management motion detector, Standard, 2.20 m, white
LB Management motion detector, Standard, 2.20 m, white

Frames

All products
LS 981 WW

Frame 1-gang, white
Frame 1-gang, white
LSP 981 GLAS

Glass frame 1-gang, soft white
Glass frame 1-gang, soft white
LSP 981 GL WW

Glass frame 1-gang, white
Glass frame 1-gang, white
LSD 981 WW

Frame 1-gang, white
Frame 1-gang, white

Frames

LS 981 WW

Frame 1-gang, white
Frame 1-gang, white
LSP 981 GLAS

Glass frame 1-gang, soft white
Glass frame 1-gang, soft white
LSP 981 GL WW

Glass frame 1-gang, white
Glass frame 1-gang, white
LSD 981 WW

Frame 1-gang, white
Frame 1-gang, white
AS 581 WW

Frame 1-gang, white
Frame 1-gang, white
AS 581 NA WW

Frame 1-gang, white
Frame 1-gang, white
AS 581 BF WW

Frame 1-gang, white
Frame 1-gang, white
AS 581 BF INA WW

Frame 1-gang, white
Frame 1-gang, white
A 5581 BF WW

Frame 1-gang, white
Frame 1-gang, white
A 5581 BF NA WW

new
Frame 1-gang, white
Frame 1-gang, white
AF 581 BF WW

Frame 1-gang, white
Frame 1-gang, white
AC 581 WW

Frame 1-gang, white
Frame 1-gang, white
AC 581 BF WW

Frame 1-gang, white
Frame 1-gang, white
AC 581 BFNA WW

Frame 1-gang, white
Frame 1-gang, white
AC 581 GL WW

Glass frame 1-gang, white
Glass frame 1-gang, white
AC 581 GL NB

Glass frame 1-gang, night blue
Glass frame 1-gang, night blue
AC 581 GL KG

Glass frame 1-gang, crystal grey
Glass frame 1-gang, crystal grey
AC 581 GL SG

Glass frame 1-gang, emerald green
Glass frame 1-gang, emerald green
AV 581 GLM WW

Glass frame 1-gang, white
Glass frame 1-gang, white
AV 581 GLM NB

Glass frame 1-gang, night blue
Glass frame 1-gang, night blue
AV 581 GLM KG

Glass frame 1-gang, crystal grey
Glass frame 1-gang, crystal grey
AV 581 GLM SG

Glass frame 1-gang, emerald green
Glass frame 1-gang, emerald green
CD 581 WW

Frame 1-gang, white
Frame 1-gang, white
CD 581 WU WW

Frame 1-gang, white
Frame 1-gang, white
CDP 581 WW

Frame 1-gang, white
Frame 1-gang, white
CD 581 K WW

Frame for cable duct installation 1-gang, white
Frame for cable duct installation 1-gang, white
LS 581 A WW

Surface cap 1-gang, white
Surface cap 1-gang, white
AS 581 A WW

Surface cap 1-gang, white
Surface cap 1-gang, white
AS 581 ANA WW

Surface cap 1-gang, white
Surface cap 1-gang, white
A 5581 BF A WW

Surface cap 1-gang, white
Surface cap 1-gang, white
CD 581 A WW

Surface cap 1-gang, white
Surface cap 1-gang, white

Additional items

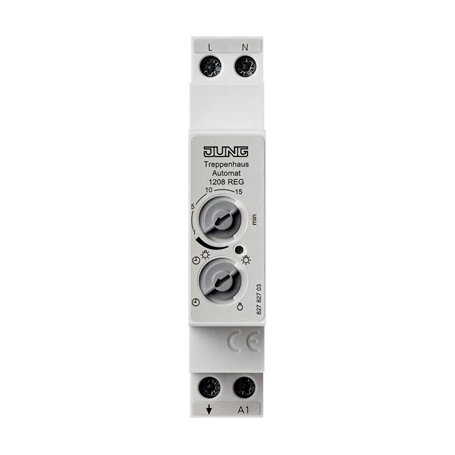

1208 REG
