For architects

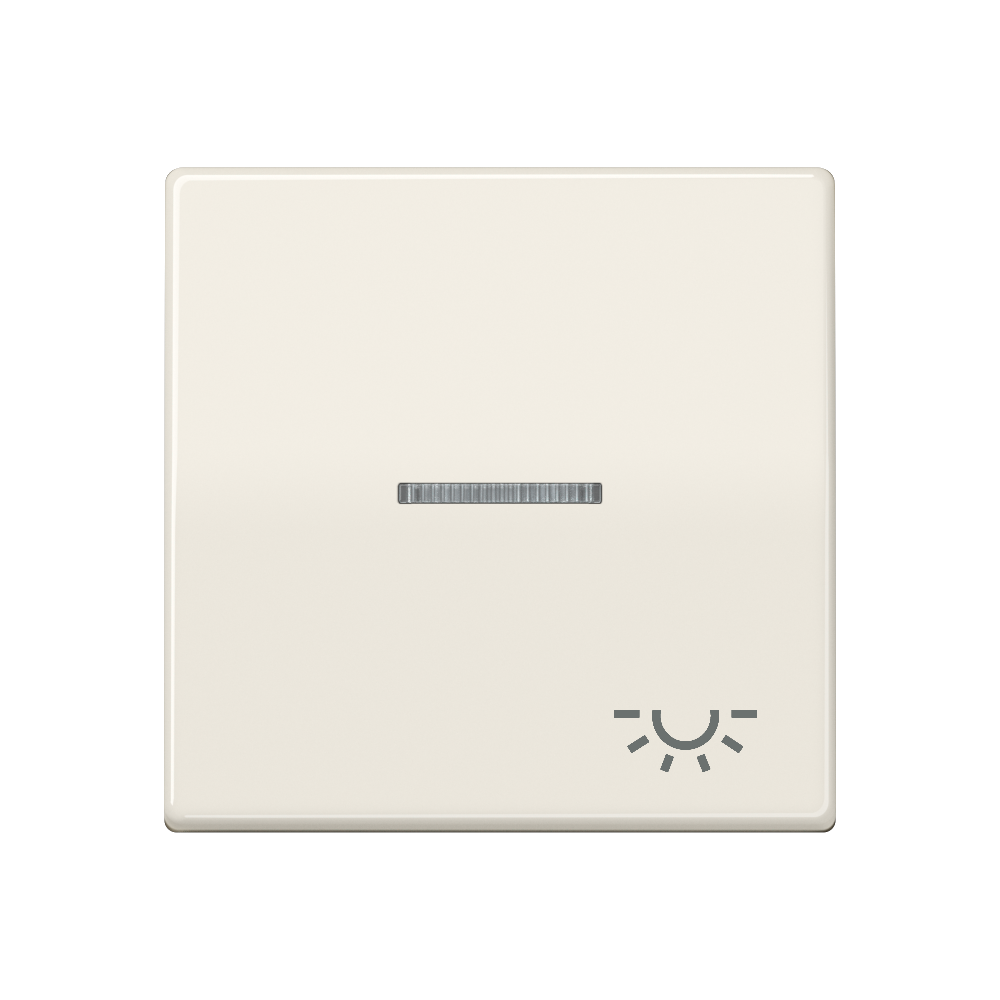

Rocker 1-gang, symbol "light", with lens, duroplastic antibacterial, AS range, ivory

ABAS 591 KO5L

Rocker, symbol "light", with lens, ivory

ABAS 591 KO5L

for switch with indicator light ref.-no.: 502 KOU, 503 KOU, 506 KOU, 501-20 KOU, 502-20 KOU, 506-20 KOU
for push-button ref.-no.: 531 U, 533 U, 533-2 U, 534 U

Duroplastic (scratch-proof) glossy – antibacterial

Spare part:
Spare part:
holder plate ref.-no.: AS 90 HP

Read less... Read more...

discontinued

Date of discontinuation 11.09.2026

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Information

Article number:	ABAS 591 KO5L
EAN/GTIN:	4011377999916
Colour:	ivory
Material:	duroplastic antibacterial
Width:	55 mm
Height:	55 mm
Date of discontinuation:	11.09.2026

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT ES EE FR IT LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.027 KG
Length	54 MM
Height	24 MM
Width	54 MM
Carton
Packaging unit	10 pc.
Weight	0.268 KG
Length	208 MM
Height	94 MM
Width	96 MM

Read less... Read more...

Inserts

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX 250 V ~

Inserts

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 2-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 10 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 2-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 3-pole, 1-way, 16 AX 400 V ~

1-gang switch (insert) with indicator light, 3-pole, 1-way, 16 AX 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 1-way NO contact with separate contacts for indicator light, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 1-way, 20 AX 250 V ~

1-gang switch (insert) with indicator light, 1-pole, 1-way, 20 AX 250 V ~
