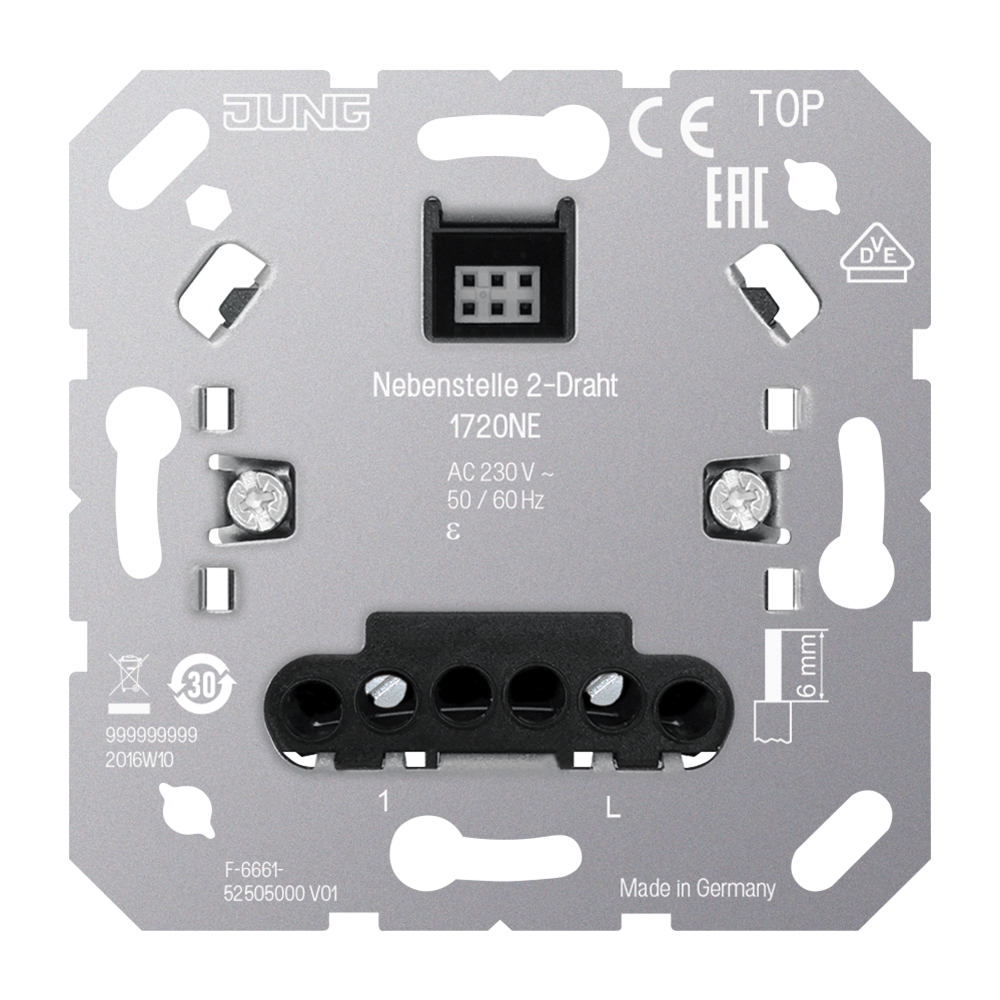

Satellite insert 2-wire

1720 NE

Satellite insert 2-wire
arrow-slider
arrow-slider
  • Satellite insert 2-wire
arrow-left-slim
arrow-right-slim
  • Satellite insert 2-wire
1720 NE
arrow-left-slim
arrow-right-slim
  • Satellite insert 2-wire
for covers LB Management ref.-no.: .. 1700 ..

Intended use
  • Satellite operation of suitable inserts
  • Operation with LB Management push-button
  • Installation in flush box with dimensions according to DIN 49073


Centre plates:
Centre plate: .. 1700 ..

Read less... Read more...

Information

Article number: 1720 NE
EAN/GTIN: 4011377166943
Read less... Read more...

Technical data

Rated voltage:AC 230 V ~
Mains frequency:50/60 Hz
Ambient temperature:−20 ... +45 °C
Connectionscrew terminals
single wire:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded without ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 2.5 mm²
stranded with ferrule:1 x 0.5 ... 4.0 mm²
2 x 0.5 ... 1.5 mm²
Total length of satellite cable:max. 100 m
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.08 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.927 KG
Length 235 MM
Height 92 MM
Width 175 MM
Read less... Read more...
