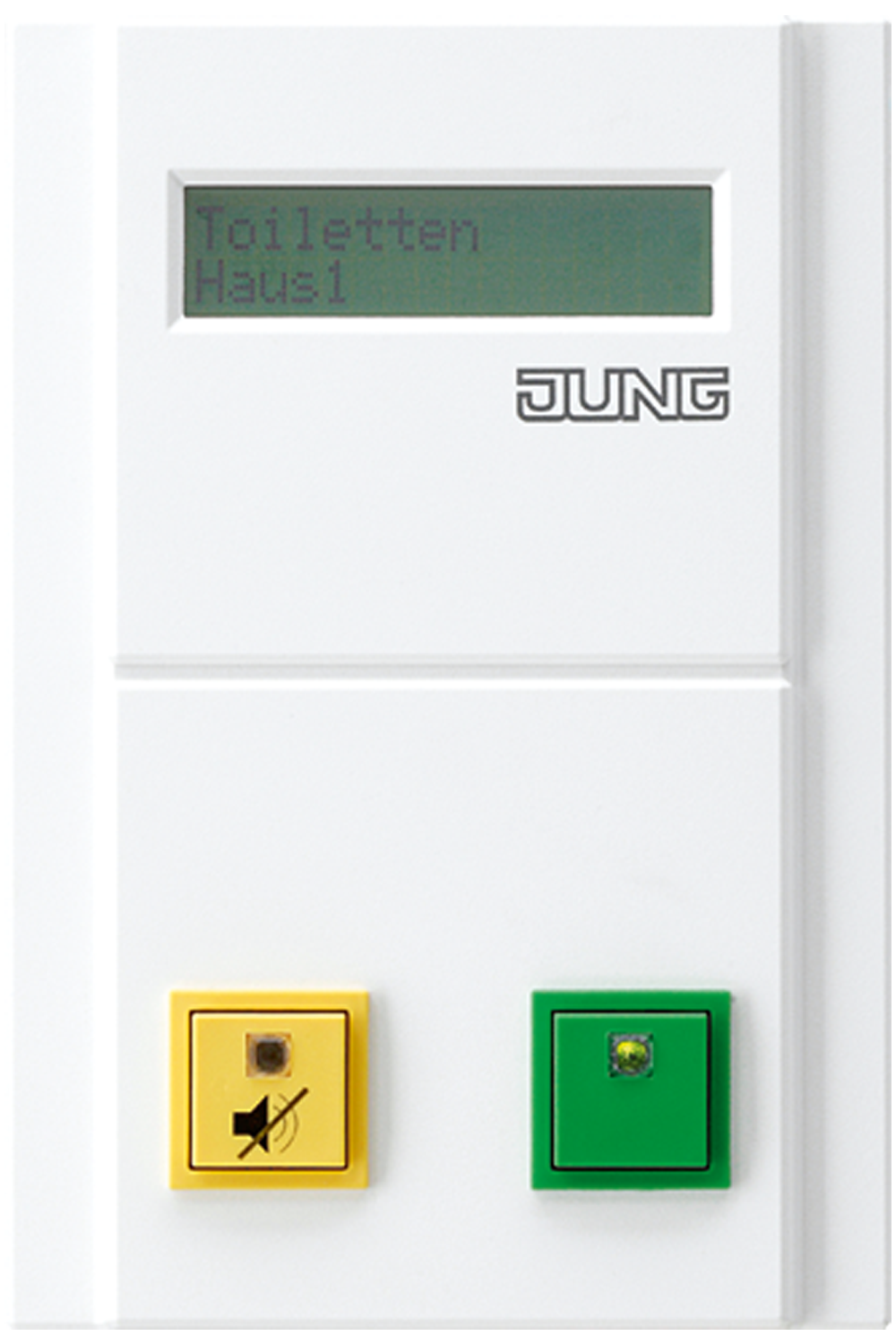

Service terminal, thermoplastic, white
NRS DZT 20 WW
- Central remote signalling from up to 20 alarms
- Optical and acoustical signalling
- Two-line display for indication of the alarms
- Programmable alarm messages with up to 16 characters for allocating the alarms
- 20 electrically isolated inputs with one ground
- Evaluation of stand-by current or operating current
- Suppression of the acoustical alarms for 20 seconds
- Green presence push-button
- Yellow alarm suppression push-button
- Programmable with the PC
- USB-cable and Software (multi-language) included
- Power supply 24 V DC
- Inputs 24 V DC
- For screw-fixing in a wall box without claws
- Dimensions: 100 x 148 x 26 mm (W x H x D)
Thermoplastic (breakproof) high-gloss
Read less...
Read more...
Information
| Article number: | NRS DZT 20 WW |
|---|---|
| EAN/GTIN: | 4011377103146 |
| Colour: | white |
Read less...
Read more...
Technical data
| Supply voltage: | DC 24 V ± 12.5 % |
| Current consumption: | max. 30 mA |
| Ambient temperature: | +5 ... +40 °C |
| Connection mode: | screwless terminals |
| single wire: | Ø 0.3 ... 1.4 mm |
| Cable type: | J-Y(St)Y |
| Distance emergency signal – service terminal: | max. 500 m |
| Inputs | |
| Voltage range: | DC 24 V ± 12.5 % |
| Current consumption: | typical 2 mA |
Read less...
Read more...
Downloads
| Manual | |
|---|---|
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.484 KG |
| Length | 190 MM |
| Height | 100 MM |
| Width | 155 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.484 KG |
| Length | 190 MM |
| Height | 100 MM |
| Width | 155 MM |
