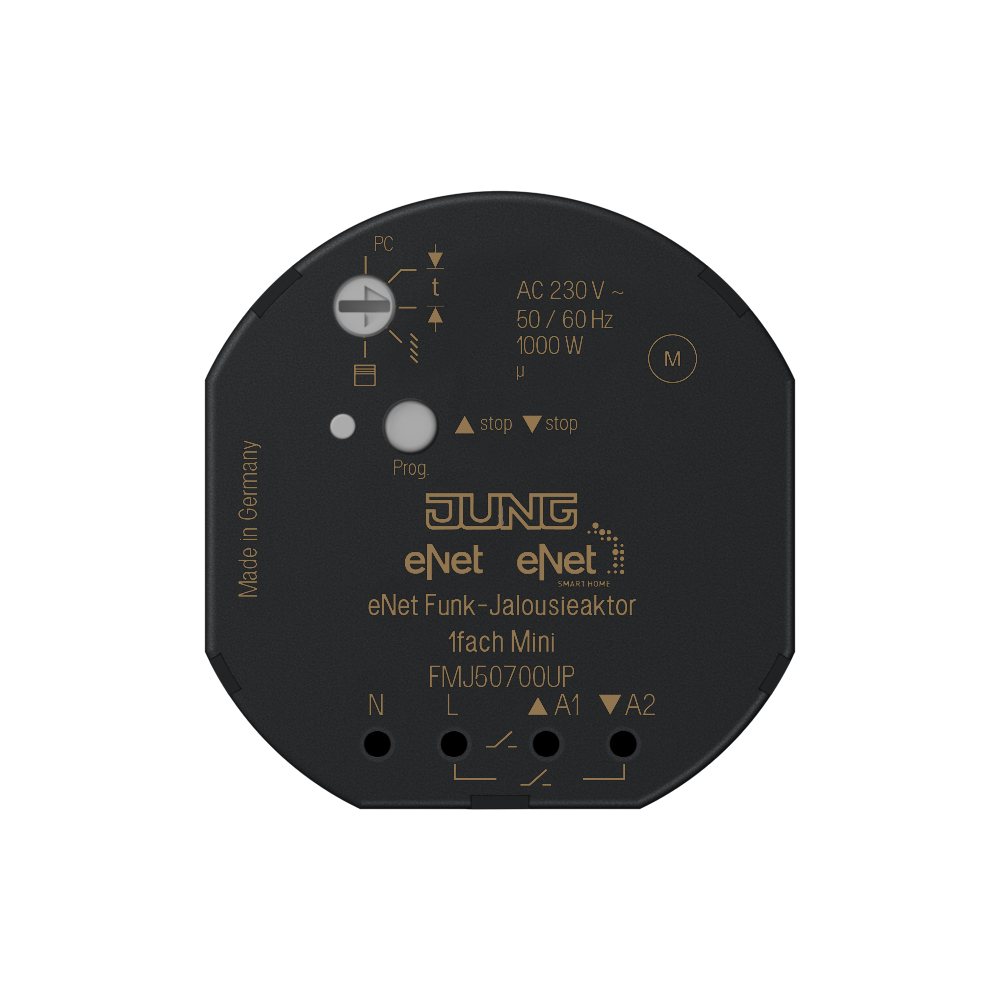

eNet radio blinds actuator 1-gang mini
FM J 50700 UP
Intended use
Product characteristics
Can be set with eNet server:
- Controlling electrically driven blinds, shutters and awnings
- Operation with suitable eNet radio transmitters
- Installation in flush box with dimensions according to DIN 49073 in combination with a suitable cover
- Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
Product characteristics
- Operating mode switch for switch-over to blind actuator, shutter actuator or parameterisation via eNet server
- Positioning of the blind and slats via light scene recall
- Position for sun protection and twilight can be saved
- Status feedback to radio transmitter
- Switchable output with Prog button
- Blind/shutter running time can be saved
- Slat change-over time can be saved
- Fabric-stretching for awnings
- Status indication with LED
Can be set with eNet server:
- Change-over time for direction change
- Running direction invertible
- Operating locks
- Position for sun protection, twilight, lock-out protection and wind alarm
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
- Repeater function
- Reading of error memory
Read less...
Read more...
Information
| Article number: | FM J 50700 UP |
|---|---|
| EAN/GTIN: | 4011377086906 |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Ambient temperature: | −25 ... +70 °C |
| Minimum actuation time in operating mode | |
| Blind: | 0.1 s |
| Shutter: | 0.3 s |
| Contact type: | µ |
| Stand-by power: | max. 0.5 W |
| Running time: | 1 ... 600 s |
| Running time default setting: | 120 s |
| Slat adjusting time: | 0 ... 10 s |
| Connected load | |
| Motors: | 1000 W |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.75 ... 4 mm² |
| stranded with ferrule: | 1 x 0.75 ... 2.5 mm² |
| Dimensions (Ø x H): | 53 x 28 mm |
| Radio frequency: | 868.0 ... 868.6 MHz |
| Transmitting power: | max. 20 mW |
| Transmission range in free field: | typical 100 m |
| Receiver category: | 2 |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Operating instructions | |
| Manual | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 99 G |
| Length | 81 MM |
| Height | 40 MM |
| Width | 81 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 99 G |
| Length | 81 MM |
| Height | 40 MM |
| Width | 81 MM |
| Outer carton | |
| Packaging unit | 10 pc. |
| Weight | 1104 G |
| Length | 220 MM |
| Height | 87 MM |
| Width | 170 MM |
