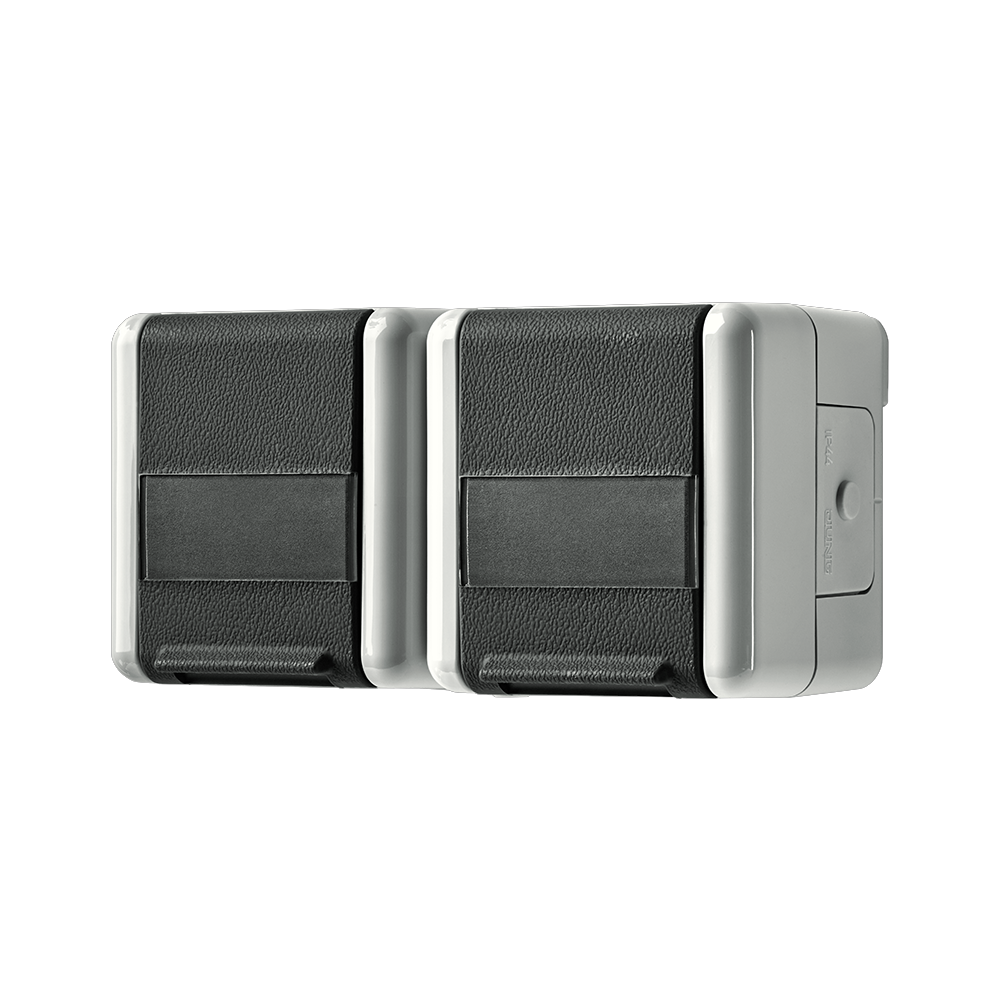

2-gang SCHUKO® socket, wired, 16 A 250 V ~, Safety Plus, with inscription field, horizontal , IP 44, WG 800

8220 KINAW

2-gang SCHUKO® socket, wired, Safety Plus, with inscription field

8220 KINAW

wired
with two inscription fields 22 x 48 mm
with enhanced contact protection (shutter)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

for horizontal installation, housing 151 x 75 x 58 mm

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Degree of protection IP44 is ensured.

Individual inscription of paper inlays for incription fields possible

Article number:	8220 KINAW
EAN/GTIN:	4011377084377
Version:	4 inlets, 2 single covers with enhanced contact protection (shutter)

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.29 KG
Length	149 MM
Height	62 MM
Width	74 MM
Carton
Packaging unit	5 pc.
Weight	1.438 KG
Length	320 MM
Height	88 MM
Width	170 MM
Palette
Packaging unit	720 pc.
Weight	232 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
