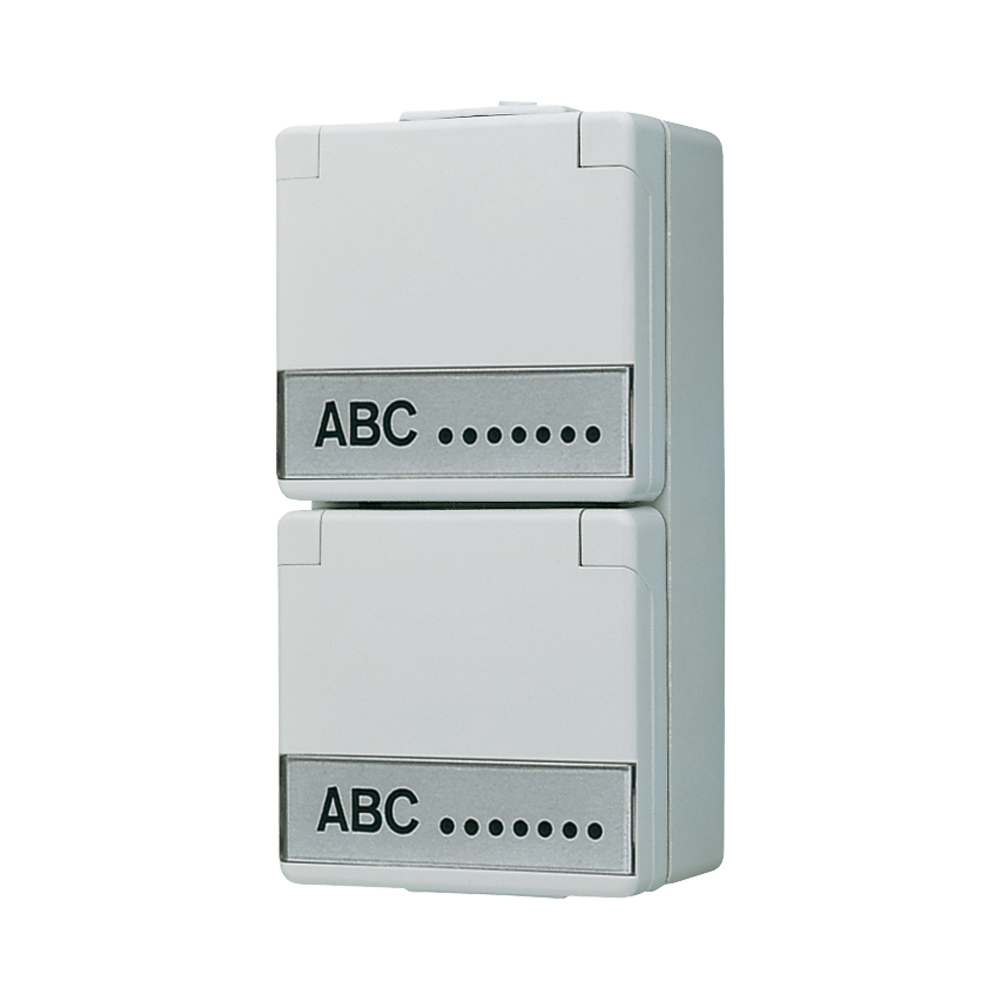

2-gang SCHUKO® socket, wired, 16 A 250 V ~, screw terminals, with inscription field, vertical, IP 44, WG 600

622 NAW

2-gang SCHUKO® socket, wired, screw terminals, with inscription field

622 NAW

wired
with screw terminals for rigid and flexible wires up to 2.5 mm²

Spare part:
Transparent cover with paper inlay ref.-no.: 606 NA

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

discontinued

Successors Art. No. 822 NAW Date of discontinuation 31.10.2026

Degree of protection IP44 is ensured.

Individual inscription of paper inlays for incription fields possible

Article number:	622 NAW
EAN/GTIN:	4011377315600
Version:	for vertical installation, with inscription field 17 x 72 mm
Successors	Art. No. 822 NAW
Date of discontinuation:	31.10.2026

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.276 KG
Length	142 MM
Height	50 MM
Width	70 MM
Carton
Packaging unit	5 pc.
Weight	1.382 KG
Length	264 MM
Height	82 MM
Width	156 MM
Outer carton
Packaging unit	50 pc.
Weight	15.5 KG
Length	530 MM
Height	165 MM
Width	390 MM
