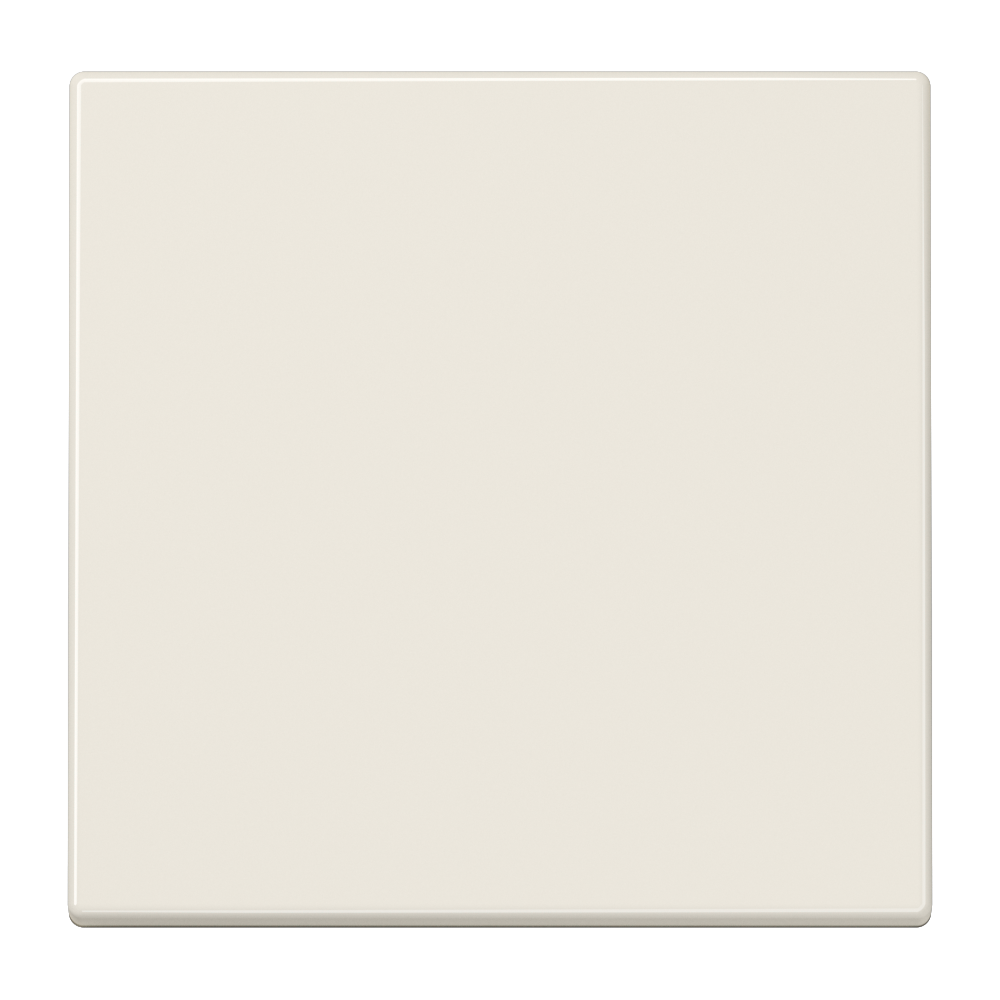

Bluetooth® Low Energy radio transmitter, 2-channel, thermoplastic, LS range, ivory

BLE LS 990

BLE LS 990

2-channel
including mounting plate, adhesive film and retaining screw

Smart switch for wireless device control using wireless standard Bluetooth^® Low Energy (BLE)
For switching, dimming and controlling individual light scenes
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Battery-free device without external power supply
Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
Encrypted transmission with AES-128 (CBC mode) and sequence counter
Compatible with these wireless Bluetooth^® systems: Casambi, XICATO Controls, Häfele Connect, WiSilica, Wirepas, Blu2Light (Vossloh Schwabe), Aruba, Fulham, Helvar
Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
Automatic range extension (depending on the system) via BT Mesh devices connected to the mains

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Radio frequency:	2.402 ... 2.480 GHz
Transmission range
in free field:	up to 75 m
in buildings:	approx. 15 m
Transmitting power:	4 dBm / 2.5 mW
Ambient temperature:	−5 ... +45 °C
Storage/transport temperature:	−25 ... +65 °C
Atmospheric humidity:	0 ... 95 % (no condensation)

Read less... Read more...
