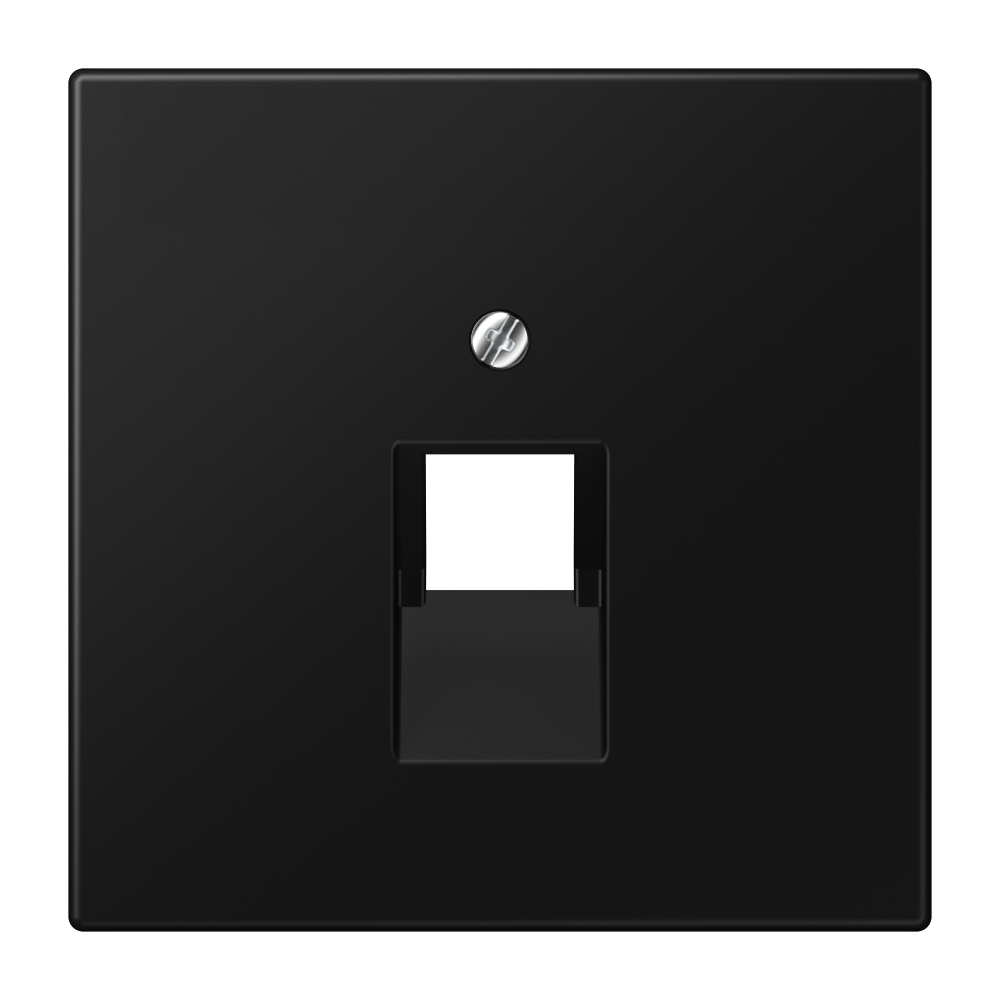

Centre plate for IAE/UAE sockets, 1 x 8-pole, thermoplastic lacquered, LS range, matt graphite black

LS 969-1 UA SWM

Centre plate for IAE/UAE sockets, 1 x 8-pole, matt graphite black

LS 969-1 UA SWM

for 1-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 8 UPO
for sockets Cat. 6 ref.-no.: UAE 8 UPOK6

Suitable inserts:
Rutenbeck: UAE 8(4) UPO, UAE 8(8) UPO, UAE-Cat.5e-8 UPO OK, UAE-real.Cat.6-8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 1 x RJ 45 (TYP 8)

matt lacquered

Read less... Read more...

Individual colour printing possible

Article number:	LS 969-1 UA SWM
EAN/GTIN:	4011377186712
Colour:	matt graphite black
Material:	thermoplastic lacquered
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.019 KG
Length	70 MM
Height	14 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	0.197 KG
Length	159 MM
Height	92 MM
Width	92 MM
Palette
Packaging unit	4800 pc.
Weight	168.032 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
