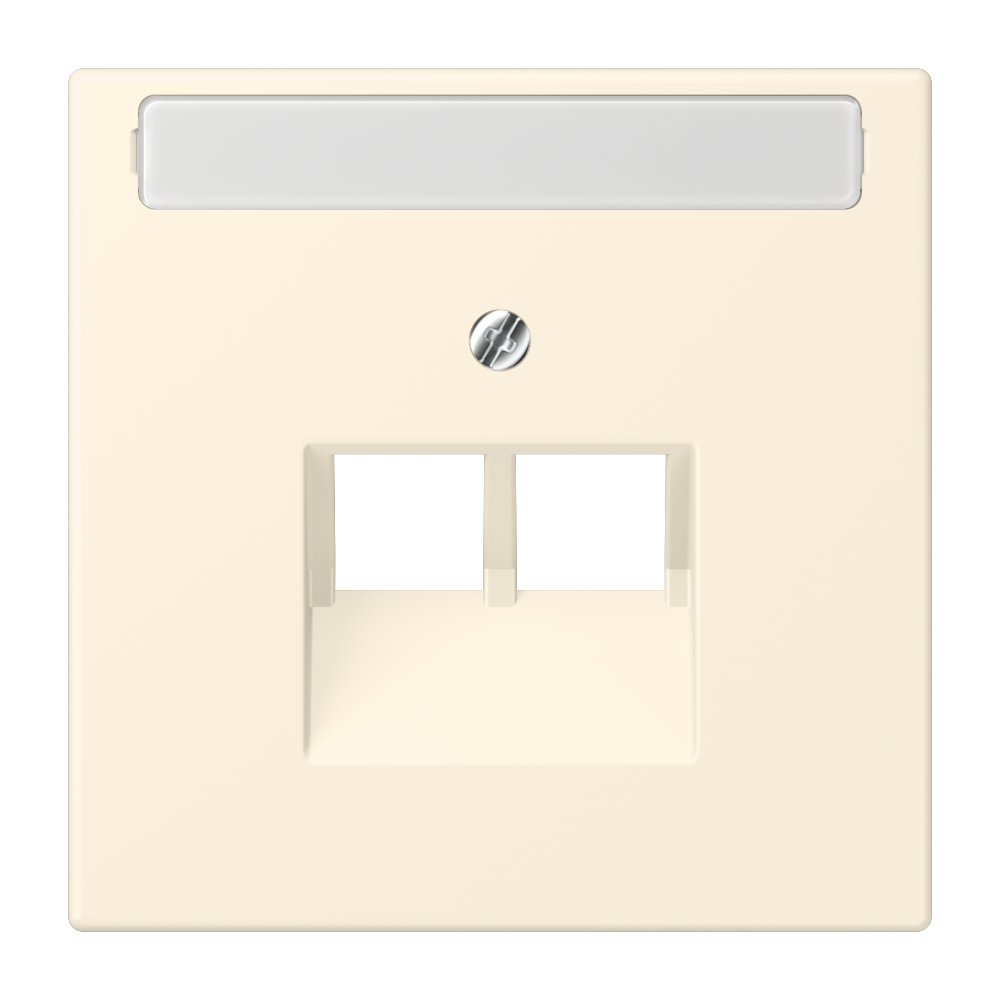

Centre plate for IAE/UAE sockets, 2 x 8-pole, with inscription field, thermoplastic lacquered, LS range, blanc ivoire (4320B)

LC 969-2 NAUA 245

Centre plate for IAE/UAE sockets, 2 x 8-pole, blanc ivoire (4320B)

LC 969-2 NAUA 245

for 2-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 2 x 8 UPO, UAE 8-8 UPO
for sockets Cat. 6 ref.-no.:UAE 8-8 UPOK6

Suitable inserts:
METZ CONNECT (BTR): 1307441001-i or 1307441200-i; E-Dat design 8/8(8), Class E
Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8)
Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

matt lacquered

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Article number:	LC 969-2 NAUA 245
EAN/GTIN:	4011377290334
Colour:	blanc ivoire
Material:	thermoplastic lacquered
Width:	70 mm
Height:	70 mm
