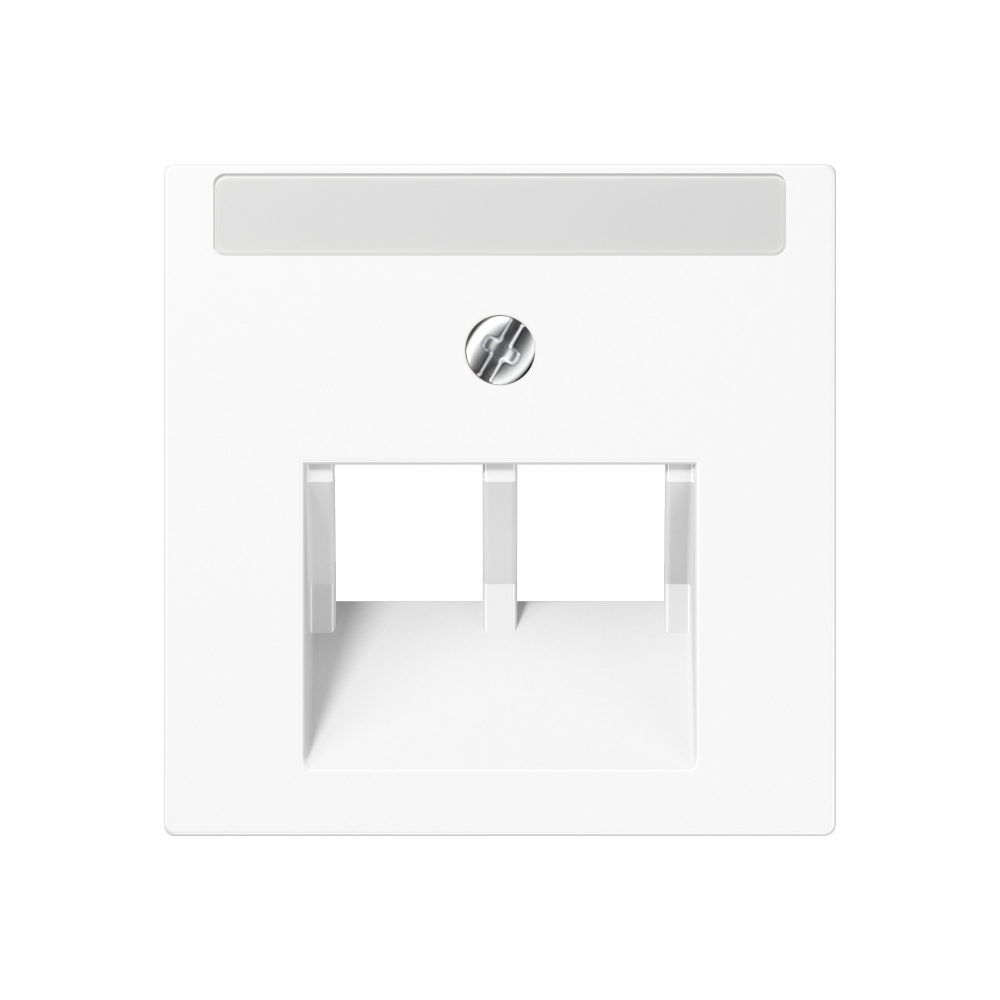

Centre plate for IAE/UAE sockets, 2 x 8-pole, with inscription field, thermoplastic, AS/A range, white

A 569-2 NA PLUA WW

Centre plate for IAE/UAE sockets, 2 x 8-pole, white

A 569-2 NA PLUA WW

with inscription field 6 x 46 mm
for 2-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 2 x 8 UPO, UAE 8-8 UPO
for sockets Cat. 6 ref.-no.:UAE 8-8 UPOK6

Suitable inserts:
METZ CONNECT (BTR): 1307441001-i or 1307441200-i; E-Dat design 8/8(8), Class E
Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8)
Spare part:
Transparent cover with paper inlay ref.-no.: A 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Article number:	A 569-2 NA PLUA WW
EAN/GTIN:	4011377206397
Colour:	white
Material:	thermoplastic
Width:	55 mm
Height:	55 mm

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Single item
Packaging unit	1 pc.
Weight	0.017 KG
Length	55 MM
Height	15 MM
Width	55 MM
Carton
Packaging unit	10 pc.
Weight	0.168 KG
Length	159 MM
Height	92 MM
Width	92 MM
Palette
Packaging unit	4800 pc.
Weight	155.44 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
