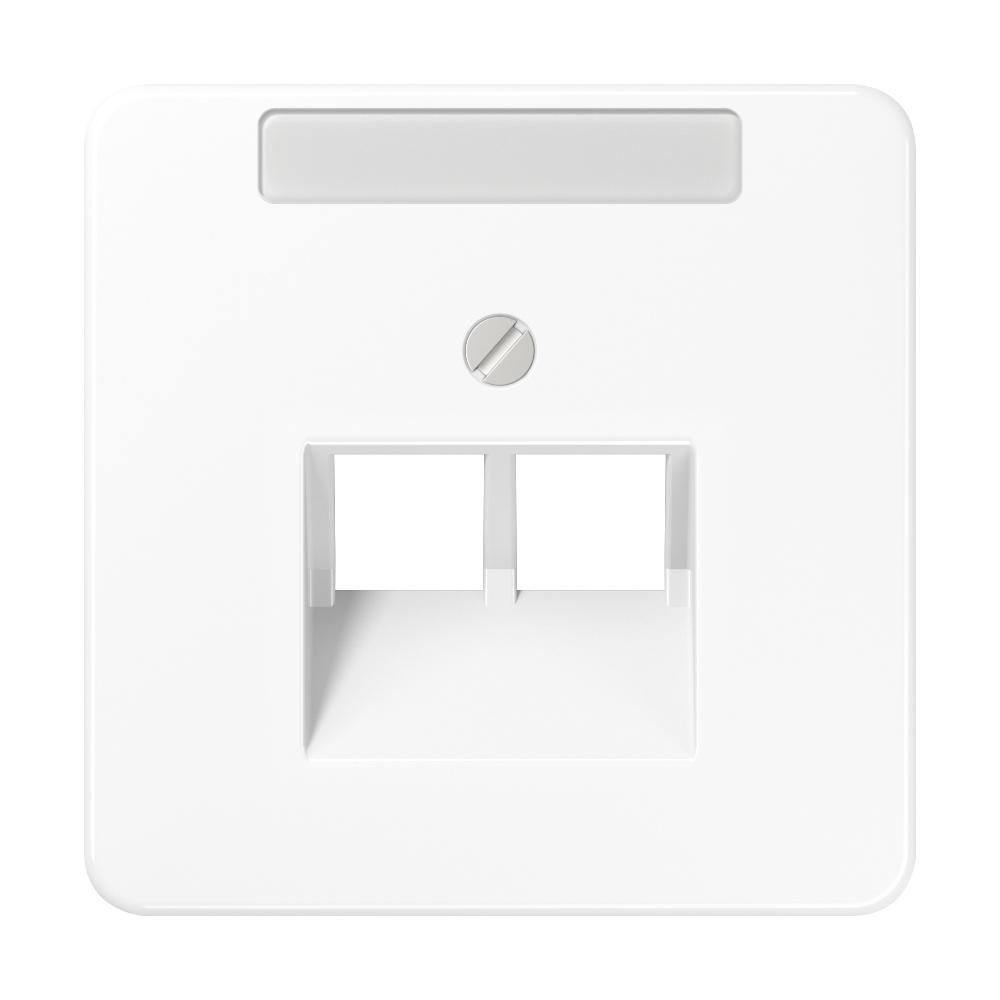

Centre plate for IAE/UAE sockets, 2 x 8-pole, with inscription field, thermoplastic, CD range, white

CD 569-2 NAUA WW

Centre plate for IAE/UAE sockets, 2 x 8-pole, white

CD 569-2 NAUA WW

for 2-gang modular jack sockets
IAE/UAE sockets ref.-no.: UAE 2 x 8 UPO, UAE 8-8 UPO
for sockets Cat. 6 ref.-no.:UAE 8-8 UPOK6

Suitable inserts:
METZ CONNECT (BTR): 1307441001-i or 1307441200-i; E-Dat design 8/8(8), Class E
Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8)
Spare part:
Transparent cover with paper inlay ref.-no.: CD 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	CD 569-2 NAUA WW
EAN/GTIN:	4011377684300
Colour:	white
Material:	thermoplastic
Width:	67 mm
Height:	67 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.018 KG
Length	68 MM
Height	17 MM
Width	68 MM
Carton
Packaging unit	10 pc.
Weight	0.182 KG
Length	159 MM
Height	92 MM
Width	92 MM
Outer carton
Packaging unit	100 pc.
Weight	2.004 KG
Length	460 MM
Height	190 MM
Width	192 MM
Palette
Packaging unit	6400 pc.
Weight	150.256 KG
Length	1200 MM
Height	1400 MM
Width	800 MM
