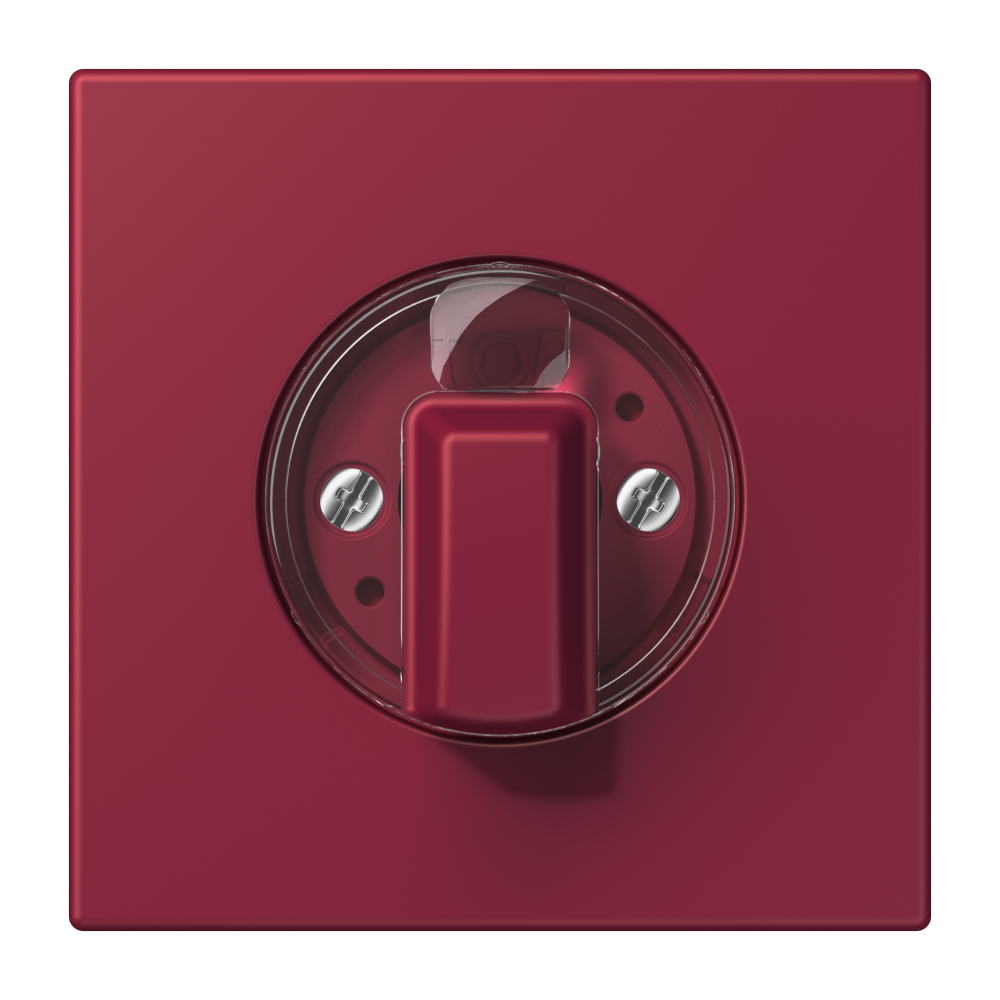

Centre plate for rotary switch insert, duroplastic lacquered, LS range, le rubis (4320M)

LC 1941 255

Centre plate, for rotary switch insert, le rubis (4320M)
arrow-slider
arrow-slider
  • Centre plate, for rotary switch insert, le rubis (4320M)
arrow-left-slim
arrow-right-slim
  • Centre plate, for rotary switch insert, le rubis (4320M)
LC 1941 255
arrow-left-slim
arrow-right-slim
  • Centre plate, for rotary switch insert, le rubis (4320M)
for rotary switch ref.-no.: 1101-4, 1101-20, 1101-32
for timer switch ref.-no.: 11015, 11120-20, 11030, 11030-20, 11060
for rotary blind switch ref.-no.: 1234.10, 1234.20

also for volume control WHD type: LST..JU UP and LR..JU UP and for program selection WHD type: PRO 3 JU..

matt lacquered
Read less... Read more...
Individual colour printing possible
More articles

Information

Article number: LC 1941 255
EAN/GTIN: 4011377241633
Colour: le rubis
Material: duroplastic lacquered
Width: 70 mm
Height: 70 mm
Read less... Read more...
Downloads
Show all downloads
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AT
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.052 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.647 KG
Length 235 MM
Height 92 MM
Width 175 MM
