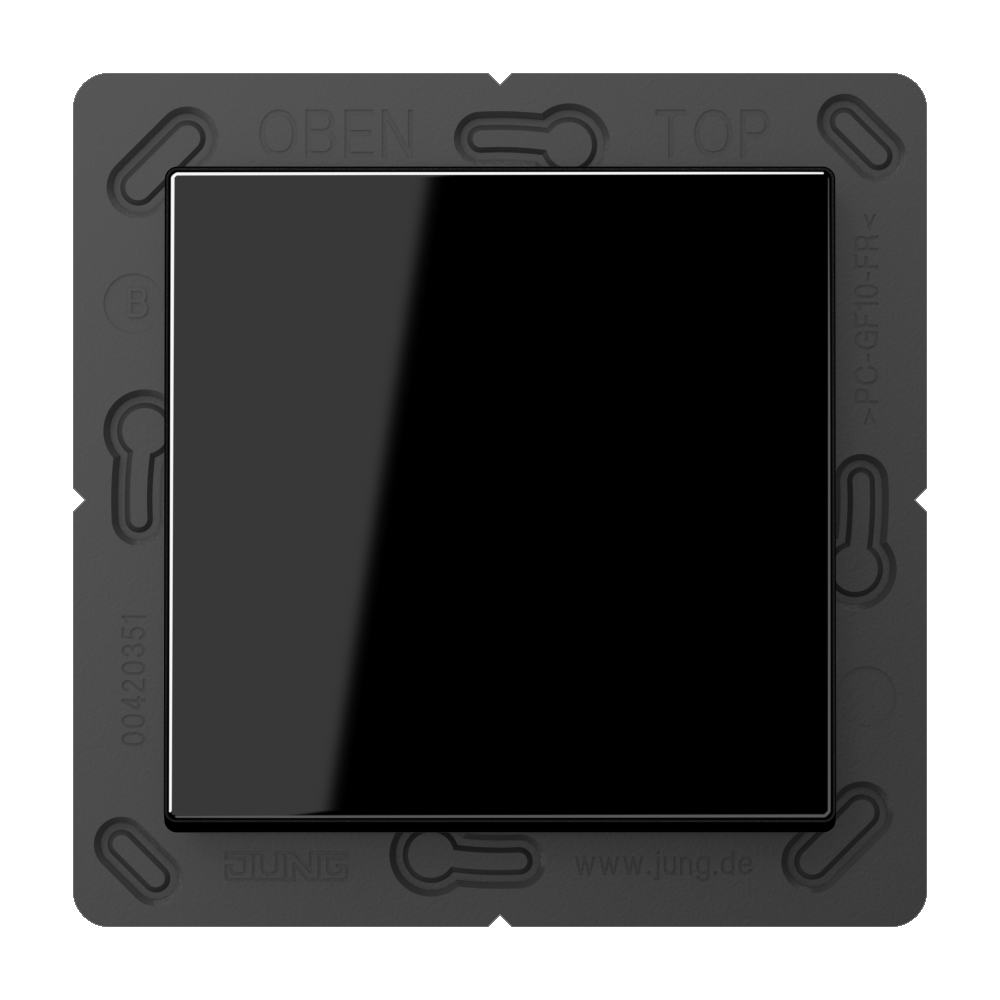

EnOcean radio transmitter, 2-channel, thermoplastic, A range, black

ENO A 590 SW

ENO A 590 SW

2-channel
including mounting plate, adhesive film and retaining screw

Intended use

Radio transmitter for the transmission of switching, dimming or shutter commands to radio receivers of the EnOcean radio system
Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)

Product characteristics

Battery-free device without external power supply
Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
Optional: Encrypted transmission with AES-128 and sequence counter

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Read less... Read more...

Carrier frequency:	868 MHz (ASK)
Transmission range
in free field:	up to 300 m
Transmission range in buildings:	approx. 30 m
Transmitting power:	−1.9 dBm / 0.7 mW
Ambient temperature:	−5 ... +45 °C
Storage/transport temperature:	−25 ... +65 °C
Atmospheric humidity:	0 ... 95 % (no condensation)

Read less... Read more...

Downloads

Operating instructions	EN Select language Select language DE ES FI FR NL
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
