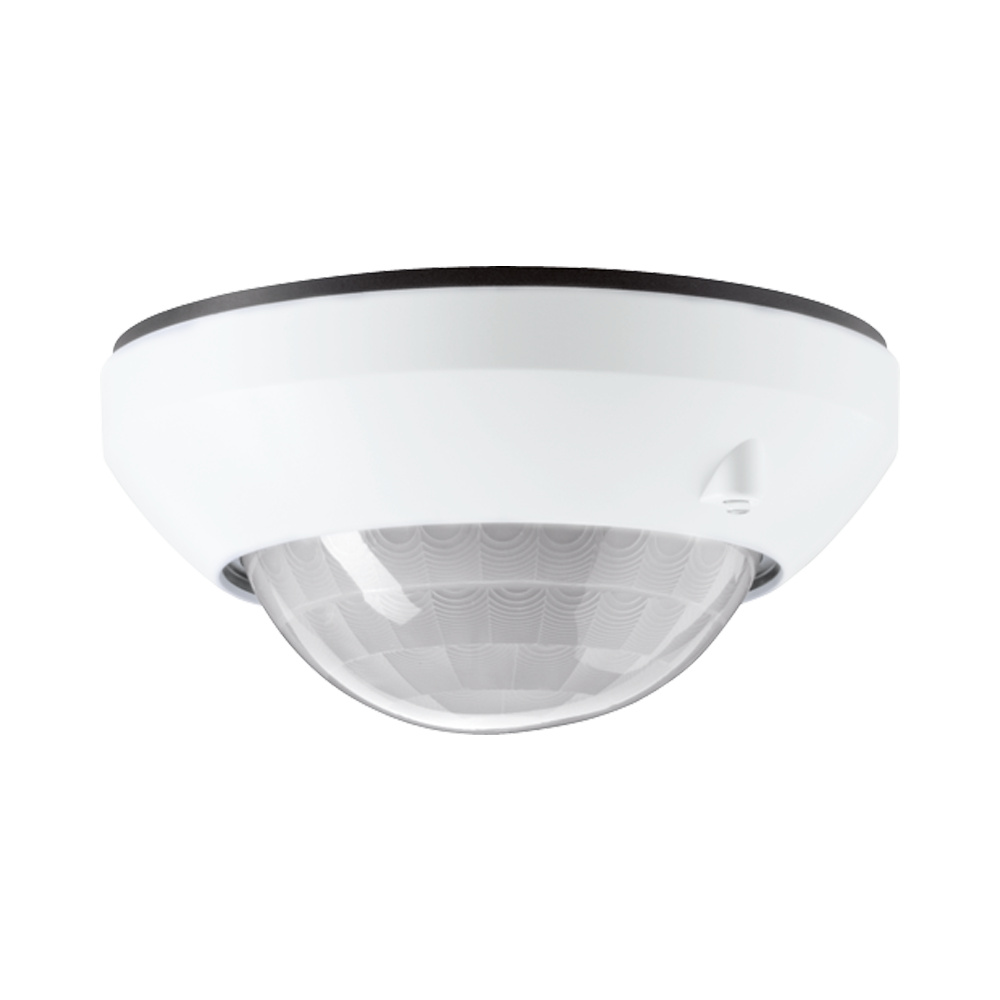

JUNG HOME presence detector, 3.00 m, white
BT 17361 WW
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1712 DE, 1713 DSTE, 1723 NE
Intended use
Product characteristics
Available in future via update:
(Notes on updates and schedules can be found at jung.group/junghome)
Accessories:
Accessories:

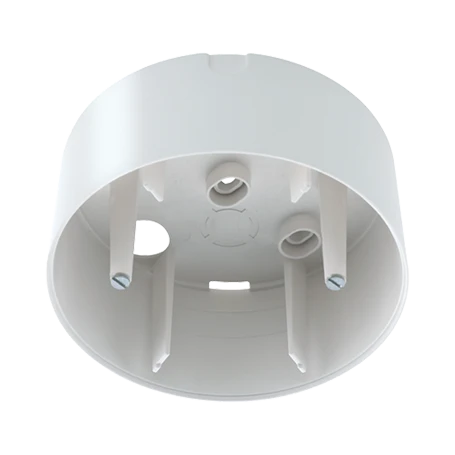

surface-mounted housing ref.-no.: PM-KAPPE, PM-KAPPE AL
Accessories:
protection cage ref.-no.: SK 180-90 WW
Intended use
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- Wireless linking with JUNG HOME system devices
- Operation with system insert for switching or dimming or satellite insert 3-wire
- Ceiling installation on system insert
Product characteristics
- Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
- Detection range extended by combining several JUNG HOME presence detectors or via satellite input
- Screen for limiting the detection area
- Multi-coloured status indicator
- Disabling the Prog button
- Free linking of the motion sensor with actuator in the insert or wirelessly with other JUNG HOME devices
- Up to 16 time programs control the functions of the respective insert (ON/OFF switching)
- Staircase lighting function (automatic switch-off) with switch-off warning
- Run-on time, switch-on delay, switch-off delay
- Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
- Activate/deactivate automatic functions using the JUNG HOME app
- Automatic date and time update when connecting with mobile device
- Time programs with sunrise or sunset (astro timer)
- Maximum and minimum brightness adjustable, with dimming insert
- Switch-on with last brightness or fixed switch-on brightness, with dimming insert
- Warm dimming (changing of the colour temperature with simultaneous brightness increase), with DALI insert
- Including the load in areas (groups), central functions and scenes
- Evaluation of the satellite inputs (if present) for controlling the system insert
- Bluetooth® Mesh for fully encrypted wireless communication and repeater function
- Can be updated using JUNG HOME app
Available in future via update:
(Notes on updates and schedules can be found at jung.group/junghome)
- Night light function with period for brightness reduction, with dimming insert
- Hotel function (orientation light instead of OFF), with dimming insert
- Constant light regulation
- Calling a scene with movement
Accessories:
Accessories:
surface-mounted housing ref.-no.: PM-KAPPE, PM-KAPPE AL
Accessories:
protection cage ref.-no.: SK 180-90 WW
Read less...
Read more...
More articles
Information
| Article number: | BT 17361 WW |
|---|---|
| EAN/GTIN: | 4011377202641 |
| Colour: | white |
| Material: | plastic |
Read less...
Read more...
Technical data
| Ambient temperature: | −5 ... +45 °C |
| Transport temperature: | −25 ... +70 °C |
| Storage temperature: | −5 ... +45 °C |
| Relative humidity: | 20 ... 70 % (no condensation) |
| Accuracy per month: | ± 13 s |
| Power reserve: | min. 4 h |
| Dimensions (Ø x H): | 103 x 66 mm |
| Detection angle: | 360° |
| Detection range: | Ø approx. 20 m (mounting height 3 m) |
| Sensitivity: | 0, 25, 50, 75, 100 % |
| Brightness setting: | approx. 5 ... 1,000 lx (and daytime operation) |
| Run-on time: | approx. 1 s ... 240 min |
| Radio frequency: | 2402.0 ... 2480.0 MHz |
| Transmitting power: | max. 10 mW (class 1.5) |
| Transmission range | |
| in buildings: | approx. 30 m |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Workbook |
Select language
|
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.159 KG |
| Length | 105 MM |
| Height | 70 MM |
| Width | 105 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.159 KG |
| Length | 105 MM |
| Height | 70 MM |
| Width | 105 MM |
