for rockers ref.-no. .. 101 .., .. 101 KO5 .. of the CD and LS ranges
project design and commissioning with ETS5 or a more recent version
ETS product family: Push-button

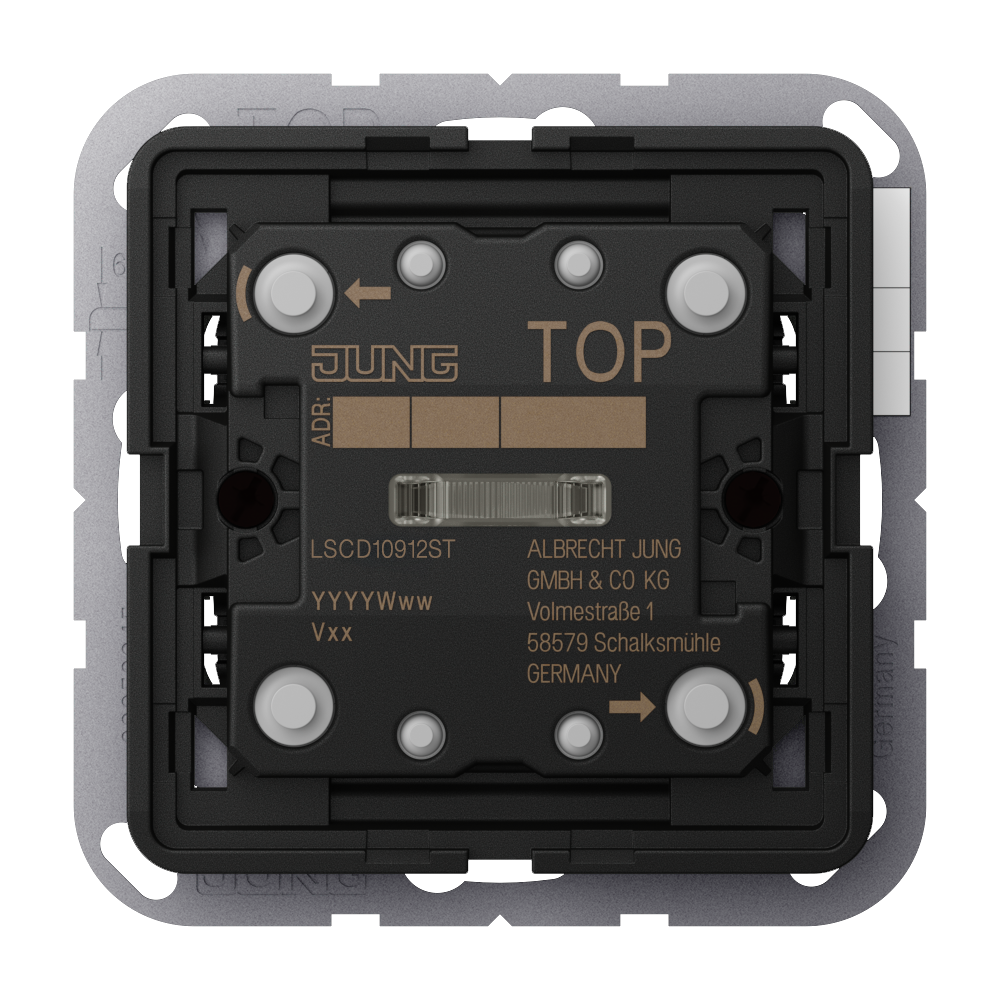

Product type: 1-gang push-button
Intended use- Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
- Installation in flush box with dimensions according to DIN 49073
Product characteristics- Operating concept (rocker or button) adjustable for each operating area
- Button evaluation (single-area operation or dual-area operation) adjustable
- One or two functions per operating area
- One status LED per operating area – red, green or blue, adjustable
- Integrated bus coupling unit
- Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
- Brightness of status LEDs adjustable; switchable while in operation, e.g. during the night
- Measurement of room temperature
- Extension unit for room temperature controller
- Disabling function: Disabling or change function mode of single or all button functions
- Alarm function, optional acknowledge by pressing any button
- Energy saving mode
- KNX Data Secure compatible with ETS 5.7.7 or ETS 6.4.0 or higher
- Can be updated with the ETS Service App
Accessories:Screw assortment for sensors, ref.-no.: S-BOX TSM RT ZN
