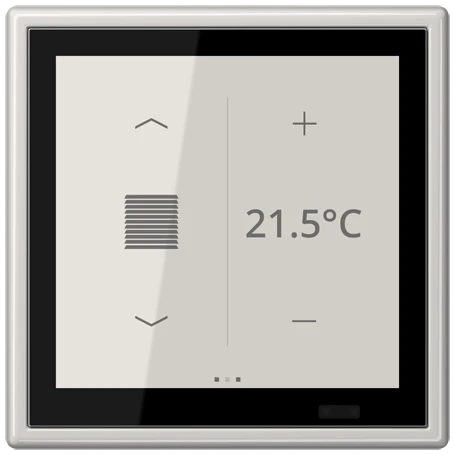

KNX room controller LS TOUCH with frame LS 990, Secure, thermoplastic, light grey
LS 459 D 1S LG
with integrated 1-gang frame LS 990
Only install as a single device, not suitable for combinations!
Intended use
Product characteristics
Thermoplastic (breakproof) high-gloss
Only install as a single device, not suitable for combinations!
Intended use
- Operation of loads (light switching, dimming, controlling blinds and shutters etc.)
- Visualisation of system statuses and information (e.g. temperature and brightness)
- Measurement and feedback control of the room temperature
- Installation in flush box with dimensions according to DIN 49073
Product characteristics
- High resolution IPS colour display
- Capacitive touchscreen
- Function of favourites page adjustable (without ETS)
- Max. 32 operating functions switching, dimming, controlling blinds, value transmitters, calling up light scenes, etc.
- Integrated room temperature sensor
- Room temperature control with setpoint specification
- Control of split units (only with update, available since July 2024)
- Alarm function (optical and/or acoustic)
- Max. 8 timer functions can be activated and set (depending on time, astronomical clock or random)
- Integrated proximity and brightness sensor
- Integrated bus coupling unit
- Connection of installation buttons or reed contacts possible
- Commissioning and support of KNX Data Secure with ETS from version 5.7.4
- Can be updated
- Display of room temperature and setpoint temperature
- External temperature sensor (ref.-no.: FF NTC) can be connected
- Display of outdoor temperature – with external sensor, e.g. weather station
- In combination with JUNG Smart Visu Server: music play control and volume control
Thermoplastic (breakproof) high-gloss
Read less...
Read more...
More articles
Information
| Article number: | LS 459 D 1S LG |
|---|---|
| EAN/GTIN: | 4011377194885 |
| Colour: | light grey |
| KNX Secure: | Secure |
Read less...
Read more...
Technical data
| Screen diagonal: | 86 mm / 3.4’’ |
| Resolution: | 320 x 310 |
| Recommended mounting height: | 1.5 m |
| KNX | |
| KNX medium: | TP 256 |
| Security: | X-mode |
| Commissioning mode: | S-mode |
| Rated voltage: | DC 21 ... 32 V SELV |
| Current consumption KNX: | 60 mA |
| Connection, KNX: | connection terminal |
| Connection cable: | EIB-Y (St)Y 2x2x0.8 |
| Protection class: | III |
| Connecting external switching contacts | |
| Number: | max. 20 |
| Connection cable: | EIB-Y (St)Y 2x2x0.8 |
| Cable length: | max. 25 m |
| Ambient conditions | |
| Ambient temperature: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| Relative humidity: | 30 % ... 70 % |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Product documentation | |
| Release notes | |
| Database ETS5 + ETS6 Secure | |
| Update | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.106 KG |
| Length | 78 MM |
| Height | 28 MM |
| Width | 78 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.156 KG |
| Length | 84 MM |
| Height | 70 MM |
| Width | 82 MM |
| Outer carton | |
| Packaging unit | 10 pc. |
| Weight | 1.686 KG |
| Length | 360 MM |
| Height | 90 MM |
| Width | 175 MM |
