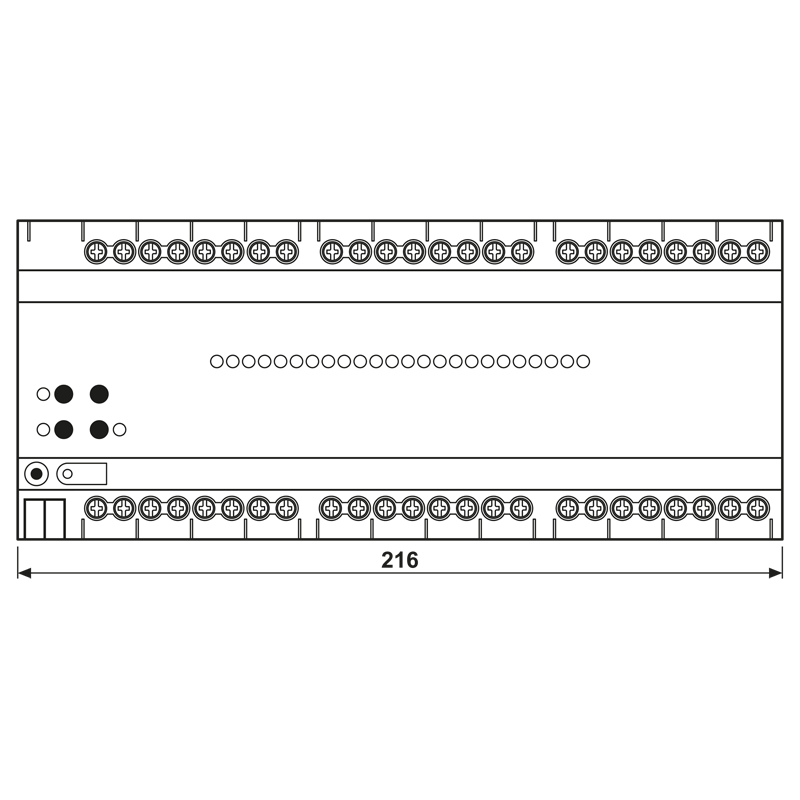

KNX switch / blinds actuator, 24/12-gang, rail mounting device, 12 rail units, Secure
23024 1S R
rail mounting device, 12 rail units
with manual electronic operation and LED status indication
project design and commissioning with ETS5 or a more recent version
ETS product family: Output
Product type: Binary output mix
Intended use
Product characteristics
Characteristics switching operation
Characteristics blinds operation
The total current of two adjacent outputs must not exceed 20 A.
with manual electronic operation and LED status indication
project design and commissioning with ETS5 or a more recent version
ETS product family: Output
Product type: Binary output mix
Intended use
- Switching of electrical loads with floating contacts
- Switching of electrically driven blinds, shutters and awnings
- Mounting on DIN rail according to EN 60715 in distribution box
Product characteristics
- Outputs can be operated manually, construction site mode
- Feedback in manual operation and in bus operation
- Disabling of individual outputs manually or via bus
- Central functions
- Cyclical monitoring
- KNX Data Secure compatible with ETS 5.7.3 or higher
- Can be updated with the ETS Service App
Characteristics switching operation
- Operation as 1-way NO or 1-way NC contacts
- Feedback function
- Logic operation and forced guidance
- Central switching function with collective feedback
- Time functions: switch-on delay, switch-off delay, staircase lighting timer with switch-off warning
- Scene function
- Operating hours counter
Characteristics blinds operation
- Suitable for 230 V AC motors
- Operating modes ‘Blind with slats’, ‘Shutter/awning’, ‘Ventilation flap/skylight’
- Blind/shutter position directly controllable
- Slat position directly controllable
- Feedback of movement status, blind/shutter position and slat position
- Cyclical feedback during movement
- Forced position through higher-level controller
- Safety function: rain alarm, frost alarm, 3 independent wind alarms
- Sun protection function with auto Heating/Cooling
The total current of two adjacent outputs must not exceed 20 A.
Read less...
Read more...
More articles
Information
| Article number: | 23024 1S R |
|---|---|
| EAN/GTIN: | 4011377179134 |
| Mounting width: | 12 rail units |
Read less...
Read more...
Technical data
| Ambient temperature: | −5 ... +45 °C |
| Storage/transport temperature: | −25 ... +70 °C |
| KNX | |
| KNX medium: | TP 256 |
| Rated voltage KNX: | DC 21 ... 32 V SELV |
| Current consumption KNX: | 4 ... 24 mA |
| Outputs | |
| Switching voltage: | AC 250 V ~ |
| Switching current AC1 (cos ϕ > 0.8): | 16 A |
| Fluorescent lamps: | 16 AX |
| Current carrying capacity | |
| Neighbouring outputs: | Σ 20 A |
| Loads per output | |
| Ohmic load: | 3000 W |
| Capacitive load: | 16 A / 140 µF |
| Motors: | 1380 VA |
| Switch-on current 200 µs: | max. 800 A |
| Switch-on current 20 ms: | max. 165 A |
| Lamp loads 230 V | |
| Incandescent lamps: | 2300 W |
| HV halogen lamps: | 2300 W |
| HV LED lamps: | max. 400 W |
| LV halogen lamps with | |
| electronic transformers: | 1500 W |
| inductive transformers: | 1200 VA |
| Fluorescent lamps T5/T8 | |
| non-compensated: | 1000 W |
| parallel compensated: | 1160 W / 140 µF |
| lead-lag circuit: | 2300 W / 140 µF |
| Compact fluorescent lamps | |
| non-compensated: | 1000 W |
| parallel compensated: | 1160 W / 140 µF |
| Mercury vapour lamps | |
| non-compensated: | 1000 W |
| parallel compensated: | 1160 W / 140 µF |
| Mounting width: | 216 mm (12 rail units) |
| Connection, power supply and load | |
| Connection mode: | screw terminals |
| single wire: | 1 x 0.5 ... 4 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4 mm² |
| stranded with ferrule: | 1 x 0.5 ... 2.5 mm² |
| KNX: | KNX bus connection block |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Operating instructions | |
| Product documentation | |
| Product documentation | |
| Release notes | |
| Database ETS5 + ETS6 Secure | |
| How-to | |
| Update | |
| CAD (dwg) | |
| CAD (stp) | |
| EPLAN Makro | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.89 KG |
| Length | 247 MM |
| Height | 85 MM |
| Width | 114 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.89 KG |
| Length | 247 MM |
| Height | 85 MM |
| Width | 114 MM |
