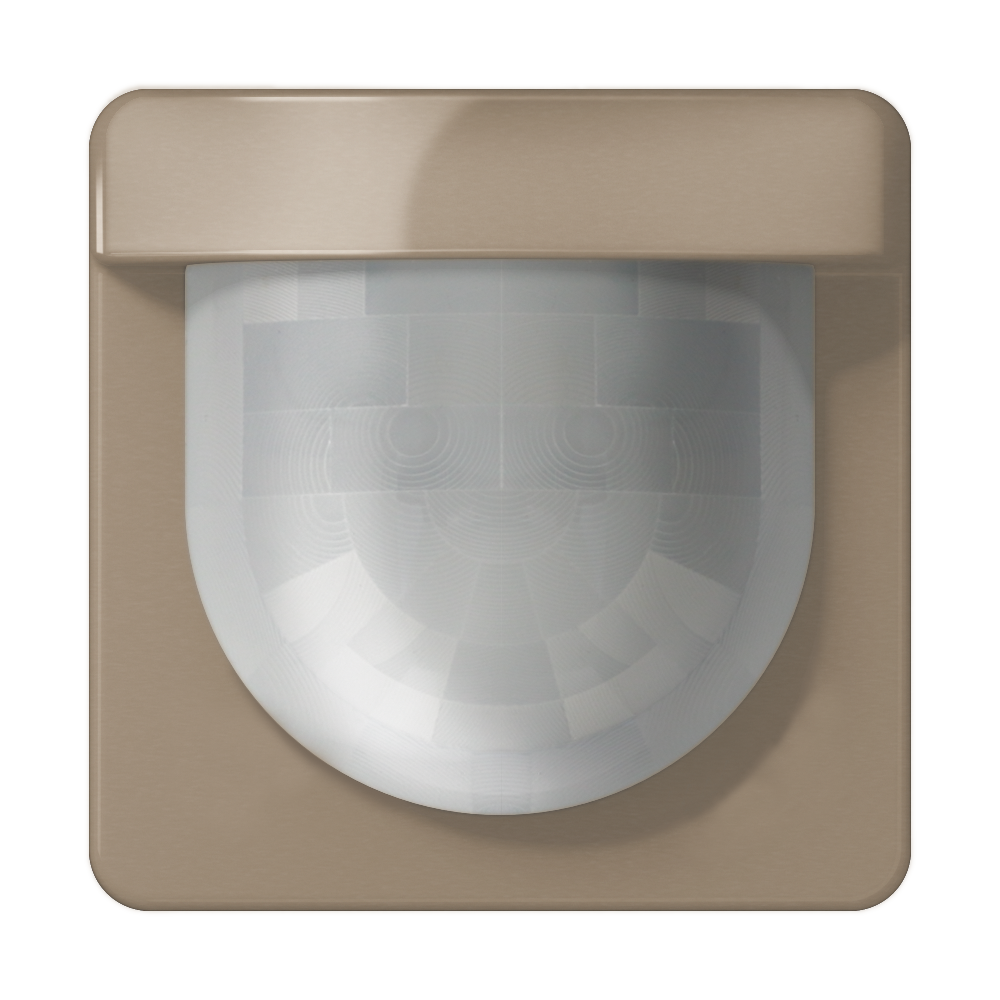

LB Management motion detector, Standard, 2.20 m, thermoplastic, CD range, gold-bronze

CD 17280 GB

LB Management motion detector, Standard, 2.20 m, gold-bronze
arrow-slider
arrow-slider
  • LB Management motion detector, Standard, 2.20 m, gold-bronze
arrow-left-slim
arrow-right-slim
  • LB Management motion detector, Standard, 2.20 m, gold-bronze
CD 17280 GB
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • LB Management motion detector, Standard, 2.20 m, gold-bronze
Sensitivity and brightness threshold adjustable
for inserts "light" ref.-no.: 1701 SE, 1701 PSE, 1704 ESE, 1702 SE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
IP44 suitable only for interiors

Intended use
  • Automatic switching of lighting depending on the thermal movement and ambient brightness
  • Operation with system insert for switching or dimming or satellite insert 3-wire
  • Wall installation on system insert

Product characteristics
  • Extension of the detection area in combination with 3-wire satellite insert
  • Operation with 2-wire or 3-wire satellite insert, rotary satellite insert or push-button
  • Brightness threshold adjustable
  • Sensitivity selectable
  • Fixed run-on time
  • Switch-on with last brightness or fixed switch-on brightness, with dimming insert
  • Switch-on brightness can be saved permanently via satellite unit, with dimmer insert
  • Dimming light via satellite unit, with dimmer insert


metal colours (thermoplastic lacquered)
Read less... Read more...
discontinued
Date of discontinuation 31.10.2026
Degree of protection IP44 is ensured with sealing kit ref.-no. AS CD 50 DS and "IP44 frame" of the respective design range.
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: CD 17280 GB
EAN/GTIN: 4011377168176
Colour: gold-bronze
Material: thermoplastic
Date of discontinuation: 31.10.2026
Read less... Read more...

Technical data

Ambient temperature:−20 ... +45 °C
Storage/transport temperature:−25 ... +70 °C
Brightness setting:approx. 5 ... 1,000 lx (and daytime operation)
Sensitivity:25, 50, 75, 100 %
Run-on time:approx. 2 min
Mounting height:1.10 / 2.20 m
Detection angle:180°
Detection range (2.2 m mounting height)
Sensitivity 25 %:max. 7 m
Sensitivity 50 %:max. 11 m
Sensitivity 75 %:max. 13 m
Sensitivity 100 %:max. 15 m
Detection range (1.1 m mounting height)
Sensitivity 25 %:max. 7 m
Sensitivity 50 %:max. 8 m
Sensitivity 75 %:max. 9 m
Sensitivity 100 %:max. 10 m
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
IT
NL
NO
PT
RU
SE
ZH
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.034 KG
Length 66 MM
Height 48 MM
Width 66 MM
Carton
Packaging unit 1 pc.
Weight 0.074 KG
Length 82 MM
Height 72 MM
Width 82 MM
Outer carton
Packaging unit 10 pc.
Weight 0.866 KG
Length 360 MM
Height 90 MM
Width 175 MM
