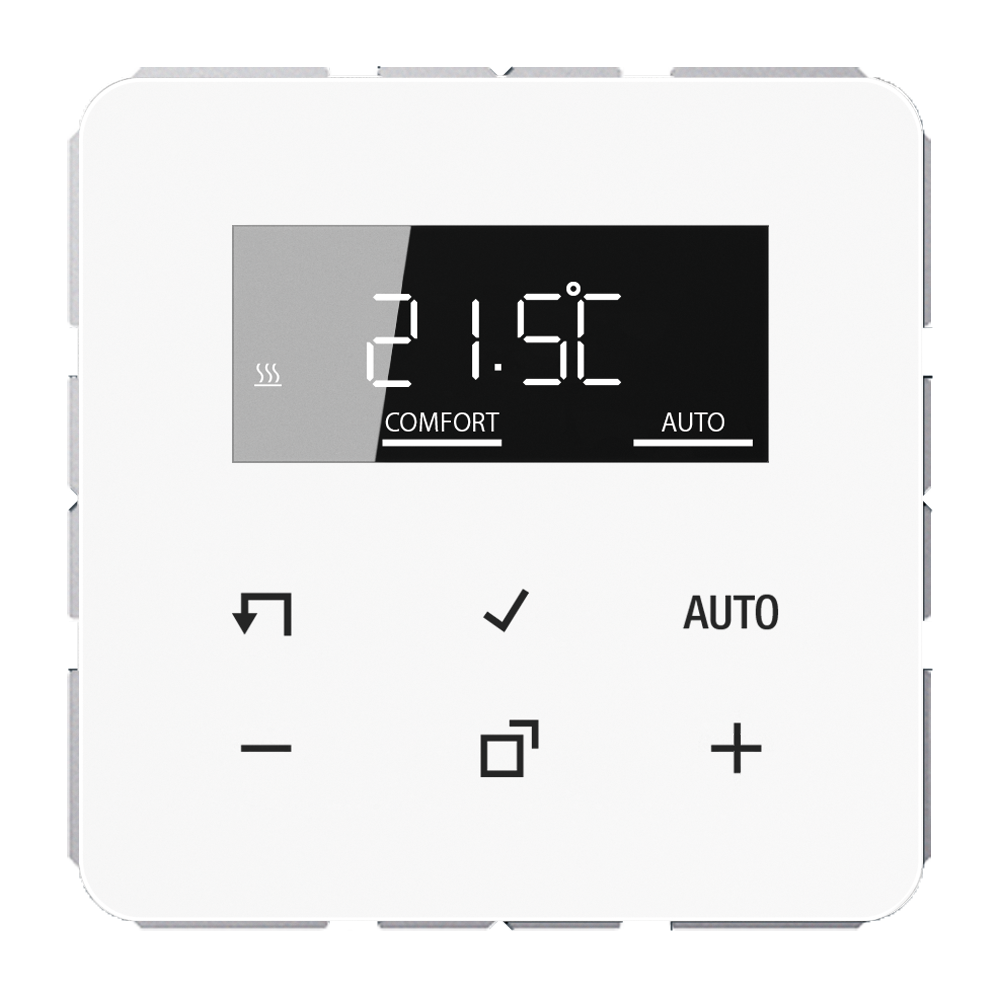

LB Management room thermostat set, CD range, white
TR D CD 1790 WW
More articles
Information
| Article number: | TR D CD 1790 WW |
|---|---|
| EAN/GTIN: | 4011377172203 |
| Colour: | white |
| Range: | CD range |
| Material: | glass |
Read less...
Read more...
Technical data
| Rated voltage: | AC 230 V ~ |
| Mains frequency: | 50/60 Hz |
| Stand-by power depending on the cover: | approx. 0.1 ... 0.5 W |
| Switching current 230 V AC1: | 10 mA ... 16 A |
| Connected load: | max. 3,600 W |
| Connection | |
| single wire: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded without ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 2.5 mm² |
| stranded with ferrule: | 1 x 0.5 ... 4.0 mm² 2 x 0.5 ... 1.5 mm² |
| Ambient temperature: | −5 ... +45 °C |
| Accuracy per month: | ± 10 s |
| Power reserve: | > 4 h |
| Regulator class (EU 811/2013): | nicht relevant |
| Contribution to energy efficiency: | 2 % |
Read less...
Read more...
Downloads
| Operating instructions | |
|---|---|
| Operating instructions | |
| Tendering text | |
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.19 KG |
| Length | 85 MM |
| Height | 90 MM |
| Width | 85 MM |
| Carton | |
| Packaging unit | 1 pc. |
| Weight | 0.19 KG |
| Length | 85 MM |
| Height | 90 MM |
| Width | 85 MM |
