Adapter frames are included in delivery:
ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range.
AS / A ranges without adapter frame.

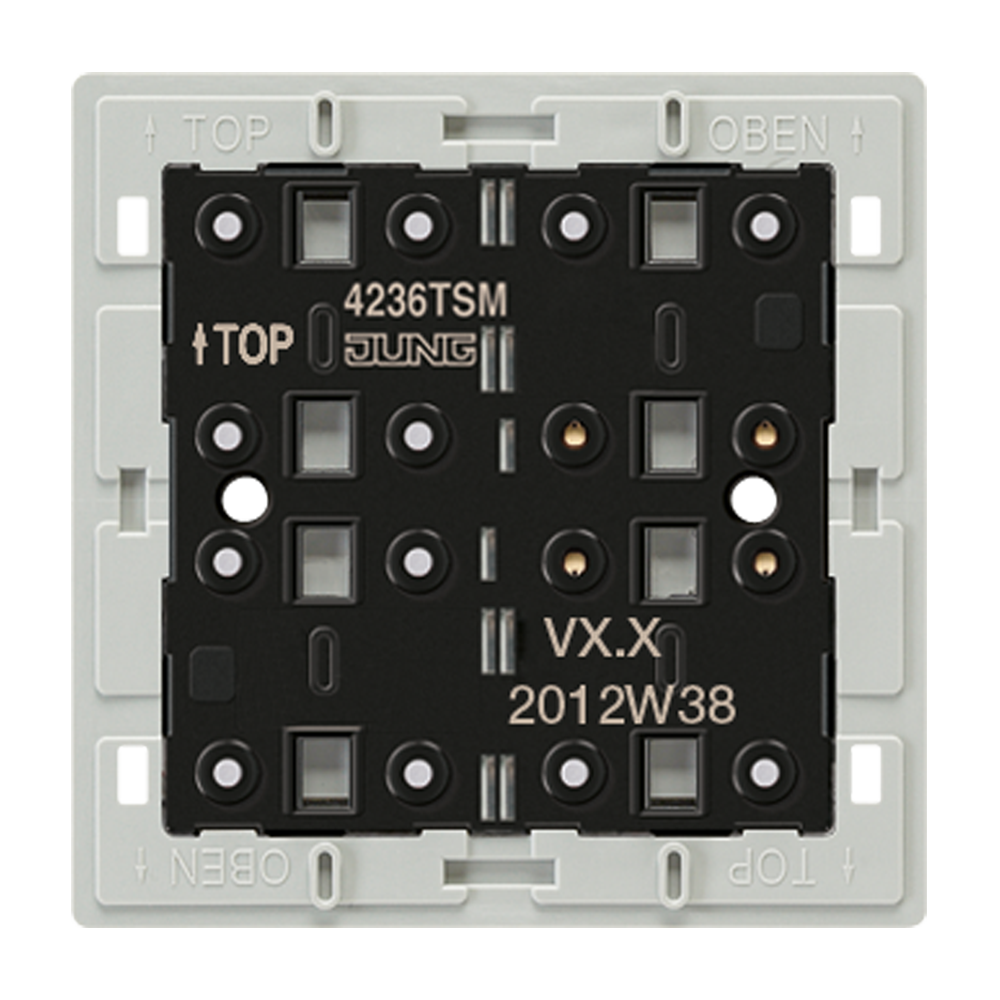

F 40 Push-button modules for connection to relay station ref.-no. RS 8 REGHE, dimming station ref.-no. UDS 4 REGHE or other control systems with control voltage of max. 24 V AC/DC (SELV), 20 mA.
The module is connected by means of a connection block at the back.
To each push-button two red LEDs are assigned for status indication.
In combination with the PHC system of the company PEHA the proper functioning of the status LED cannot be guaranteed. Please contact our technical service line.
Accessories:
Accessories:
Screw assortment for sensors, ref.-no.: S-BOX TSM RT ZN
