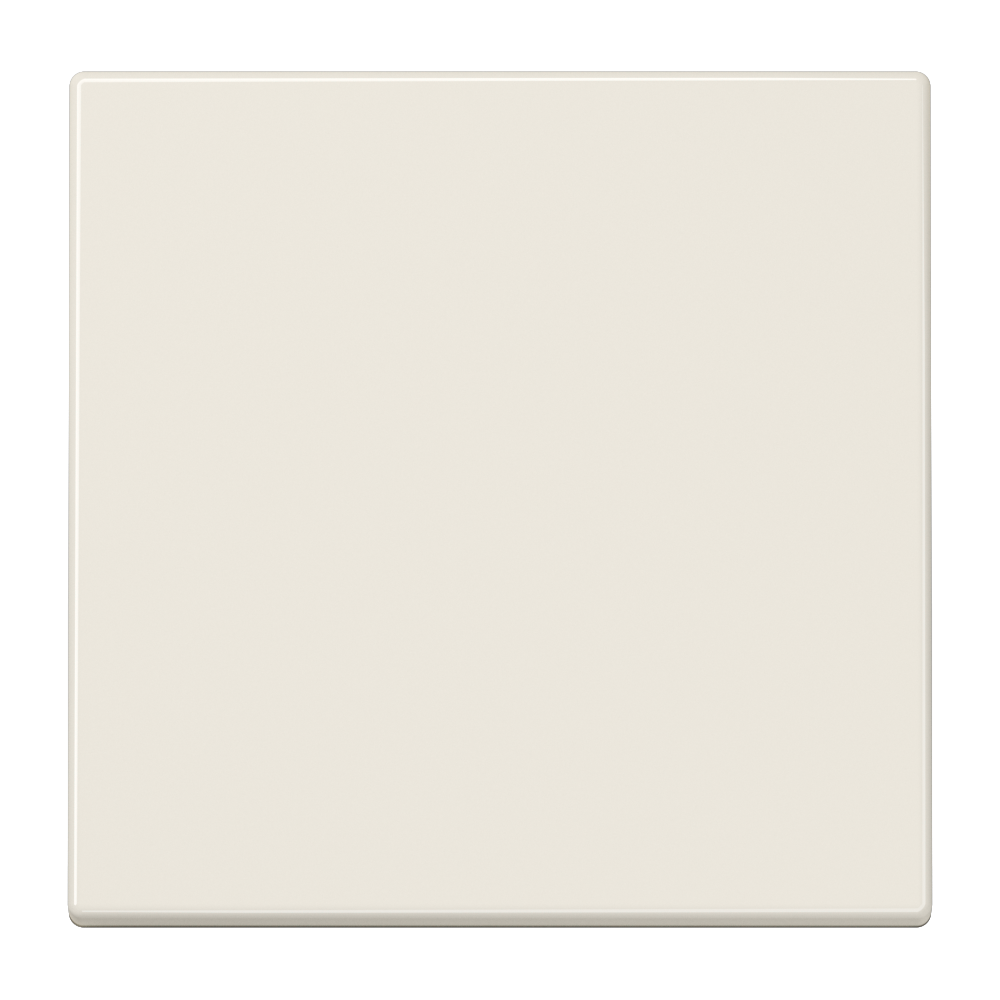

Rocker 1-gang, duroplastic, LS range, ivory

LS 990

Rocker 1-gang, ivory

LS 990

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
for multi push-button ref.-no.: 531-41 U (not metal versions)
in combination with multi push-button no IP44 possible

Duroplastic (scratch-proof) glossy

Spare part:
holder plate ref.-no.: CD 90 HP
For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

More articles

Information

Article number:	LS 990
EAN/GTIN:	4011377121904
Colour:	ivory
Material:	duroplastic
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.037 KG
Length	70 MM
Height	21 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	0.371 KG
Length	210 MM
Height	90 MM
Width	90 MM
Outer carton
Packaging unit	100 pc.
Weight	3.98 KG
Length	455 MM
Height	215 MM
Width	185 MM
Palette
Packaging unit	4800 pc.
Weight	213.04 KG
Length	1200 MM
Height	1250 MM
Width	800 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

Frames

Frame 1-gang, ivory

Frame 1-gang, ivory

Frame 1-gang, ivory

Frame 1-gang, ivory

Surface cap 1-gang, ivory

Surface cap 1-gang, ivory
