For architects

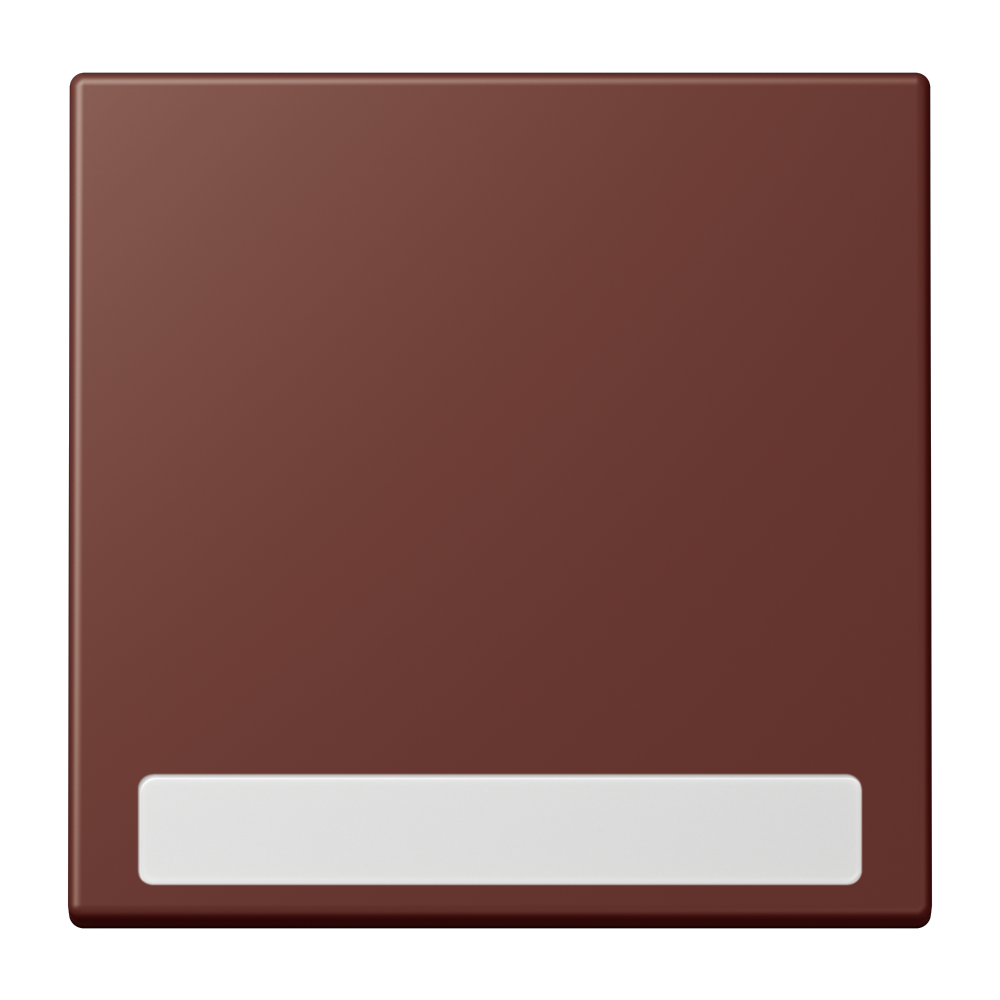

Rocker 1-gang, with inscription field, duroplastic lacquered, LS range, terre sienne brûlée 31 (32120)

LC 990 NA 235

Rocker 1-gang, terre sienne brûlée 31 (32120)

LC 990 NA 235

for switch ref.-no.: 501 U, 502 U, 503 U, 506 U, 507 U, 501-20 U, 506-20 U, 507-20 U
for push-button ref.-no.: 531 U, 532 U, 533 U, 533-2 U
for multi push-button ref.-no.: 531-41 U
in combination with multi push-button no IP44 possible

Spare part:
Transparent cover with paper inlay ref.-no.: CD 90 NA

matt lacquered

Spare part:
holder plate ref.-no.: CD 90 HP
Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

More articles

Information

Article number:	LC 990 NA 235
EAN/GTIN:	4011377290914
Colour:	terre sienne brûlée 31
Range:	LS range
Material:	duroplastic lacquered
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.049 KG
Length	82 MM
Height	45 MM
Width	82 MM
Carton
Packaging unit	10 pc.
Weight	0.617 KG
Length	235 MM
Height	92 MM
Width	175 MM

Read less... Read more...

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

Inserts

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), intermediate, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang switch (insert), 3-pole, 1-way, 16 AX, 400 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 1-pole, 2-way with terminal for N conductor, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 1-way NO contact, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang push-button, 2-pole, 2-way, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang multi push-button (insert), 1-pole, 2-way push-button with 2 x 2 NO contacts, rocker in neutral position, 10 A, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 2-way, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), intermediate, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 20 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 2-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

1-gang switch (insert), 1-pole, 1-way, 10 AX, 250 V ~

Frames

Frame 1-gang, terre sienne brûlée 31 (32120)

Frame 1-gang, terre sienne brûlée 31 (32120)

Frame 1-gang, terre sienne brûlée 31 (32120)

Frame 1-gang, terre sienne brûlée 31 (32120)

Surface cap 1-gang, terre sienne brûlée 31 (32120)

Surface cap 1-gang, terre sienne brûlée 31 (32120)

Additional items

Spare parts

Transparent cover with white paper inlay

Transparent cover with white paper inlay
