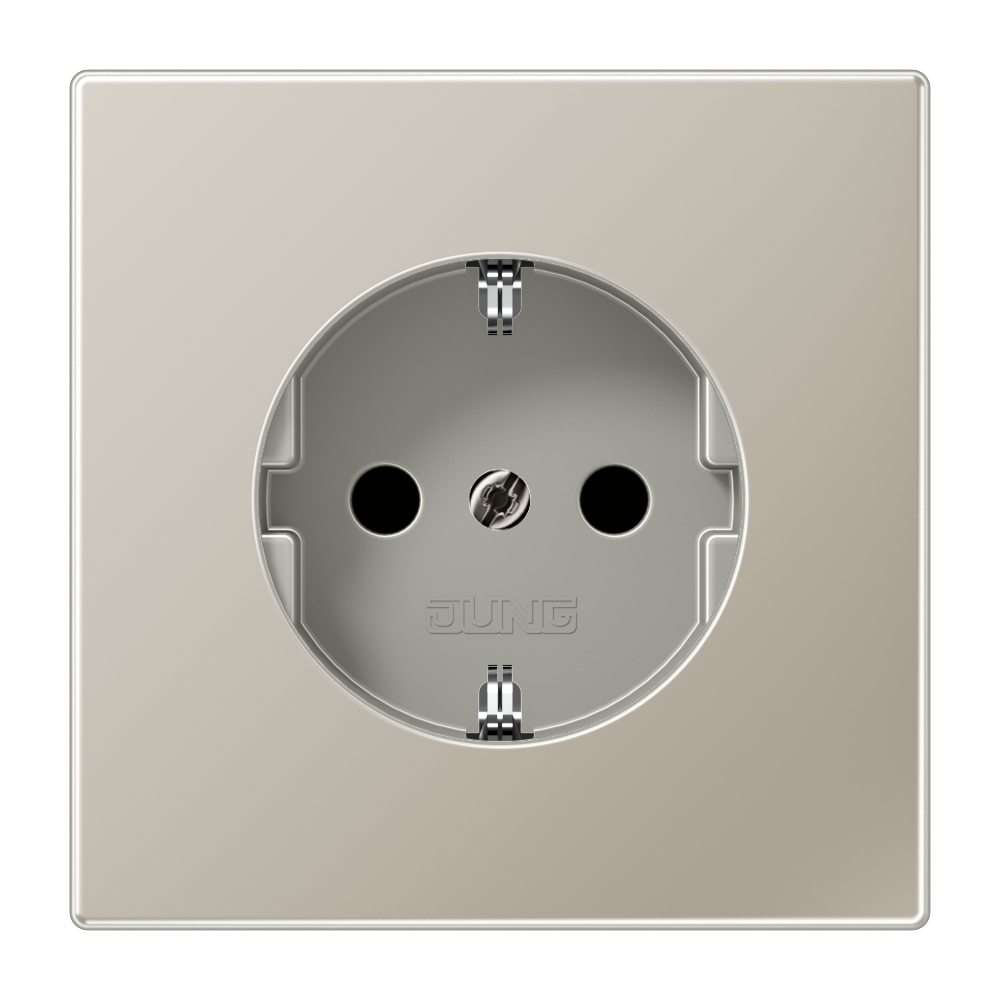

SCHUKO® socket, 16 A 250 V ~, Safety Plus, LS range, stainless steel

ES 1520 KI

SCHUKO® socket, Safety Plus, stainless steel

ES 1520 KI

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	ES 1520 KI
EAN/GTIN:	4011377063099
Colour:	stainless steel
Material:	stainless steel 1.4303 X4 CrNi 18-12
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.106 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.162 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	100 pc.
Weight	12.046 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	407.472 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
