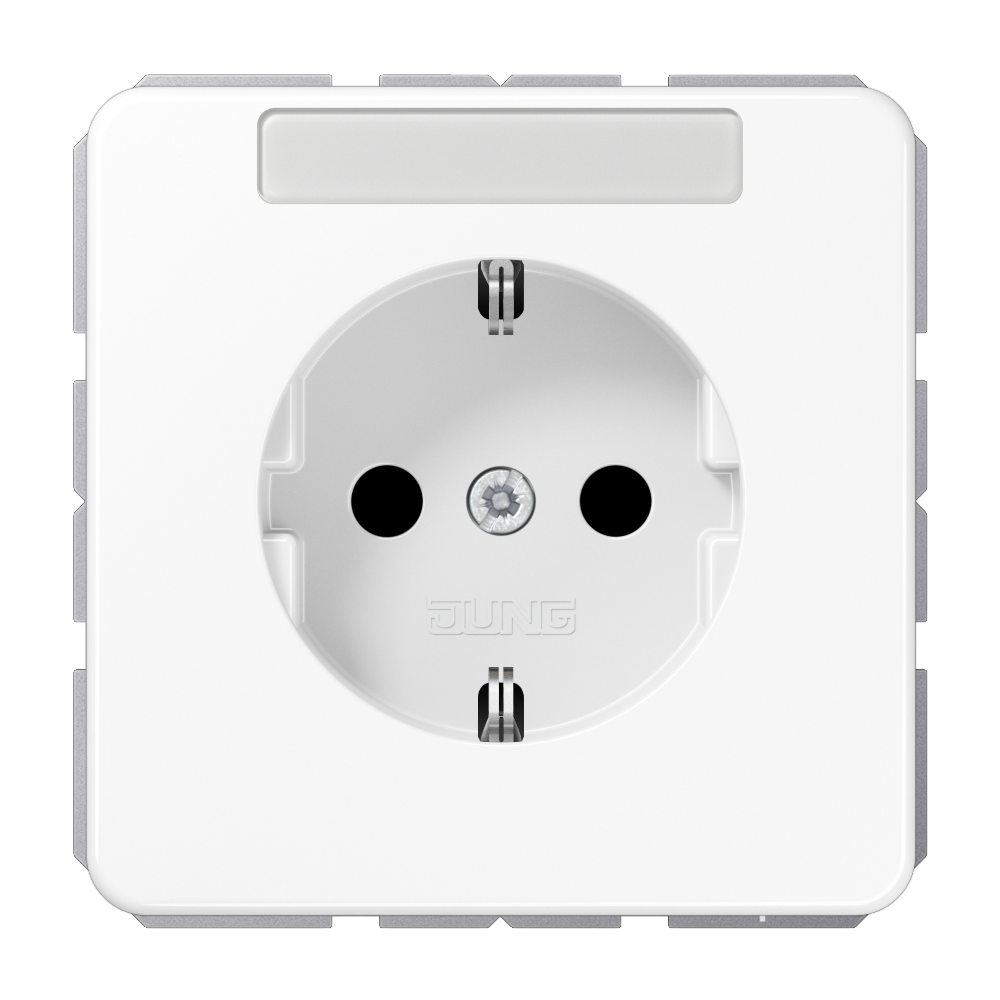

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, thermoplastic, CD range, white

CD 1520 BFKINA WW

SCHUKO® socket, Safety Plus, with inscription field, thermoplastic, white

CD 1520 BFKINA WW

with enhanced contact protection / shutter (Safety Plus)
with inscription field 6 x 37 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: CD 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	CD 1520 BFKINA WW
EAN/GTIN:	4011377077553
Colour:	white
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	67 mm
Height:	67 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.081 KG
Length	71 MM
Height	45 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	0.912 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	100 pc.
Weight	9.546 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	327.472 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
