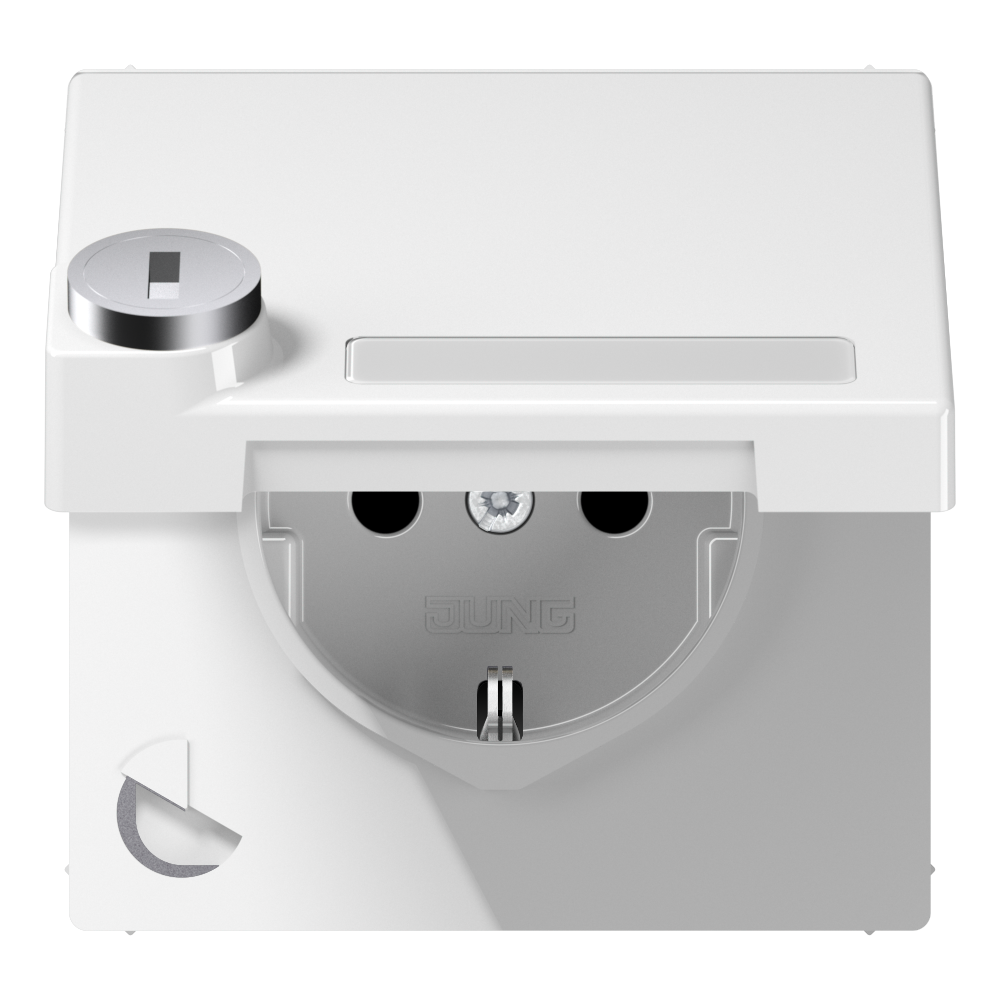

SCHUKO® socket, 16 A 250 V ~, with inscription field, Safety Plus, hinged lid, with safety lock, thermoplastic, LS range, white

LS 1520 NAKLSL WW

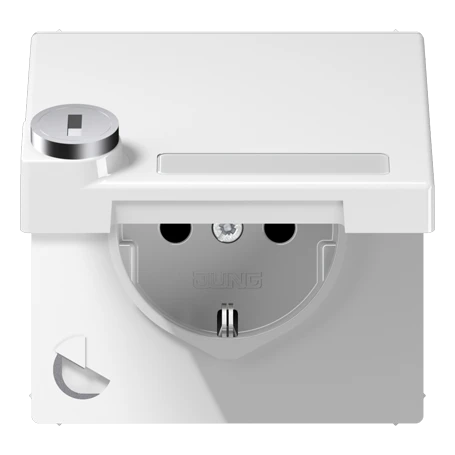

SCHUKO® socket, Safety Plus, with inscription field, with safety lock, thermoplastic, white

LS 1520 NAKLSL WW

with hinged lid (with spring)
with inscription field 9 x 39 mm
with safety lock (24 different locks)
with 2 keys
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: LS 90 NA
Spare key ref.-no.: 802 SL to 825 SL (When ordering, please indicate lock number, e.g. 813 SL)

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	LS 1520 NAKLSL WW
EAN/GTIN:	4011377157880
Colour:	white
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...
