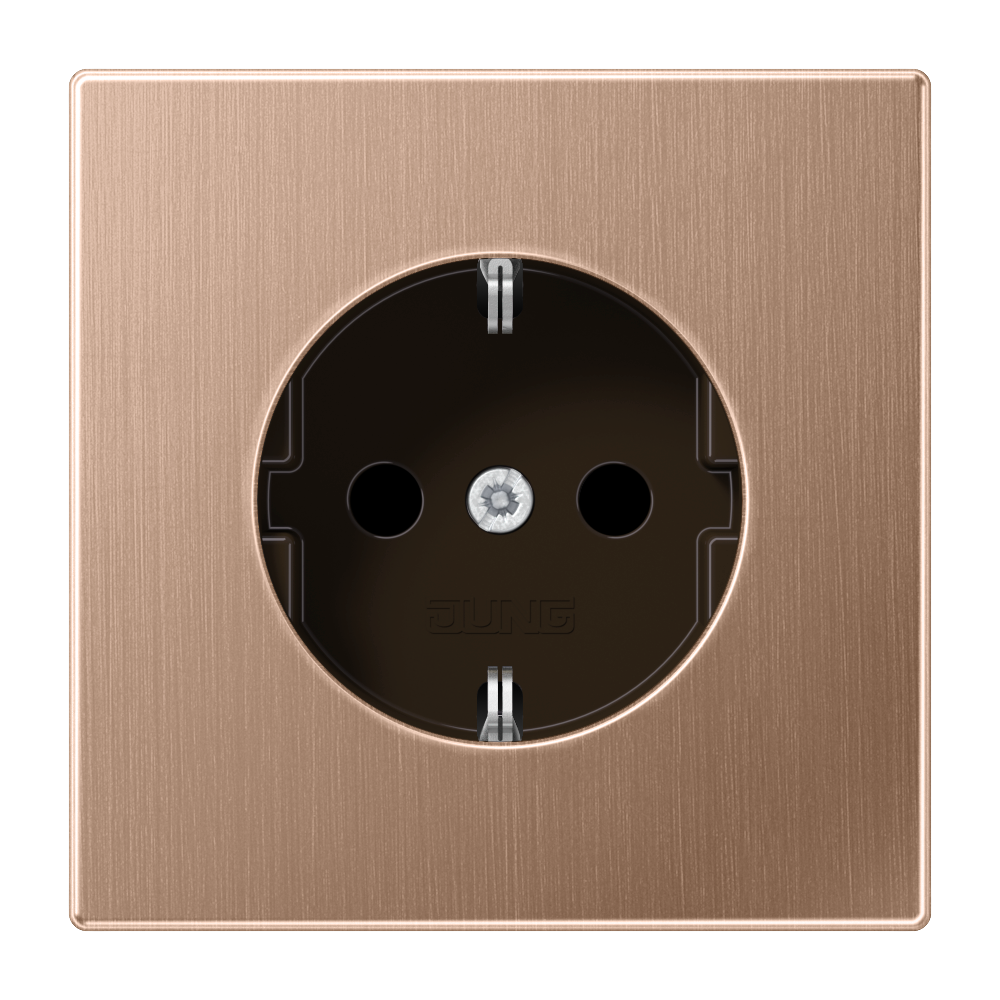

SCHUKO® socket, 16 A 250 V ~, LS range, brushed bronze

BRG 1520

BRG 1520

with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW
Delivery time: approx. 8 weeks

Read less... Read more...

new

Individual colour printing possible

Article number:	BRG 1520
EAN/GTIN:	4011377373259
Colour:	brushed bronze
Material:	stainless steel 1.4303 X4 CrNi 18-12, PVD-coated
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.107 KG
Length	70 MM
Height	40 MM
Width	70 MM
Carton
Packaging unit	10 pc.
Weight	1.171 KG
Length	290 MM
Height	80 MM
Width	180 MM
Outer carton
Packaging unit	100 pc.
Weight	12.136 KG
Length	575 MM
Height	190 MM
Width	395 MM
Palette
Packaging unit	3200 pc.
Weight	410.352 KG
Length	1200 MM
Height	1620 MM
Width	800 MM
