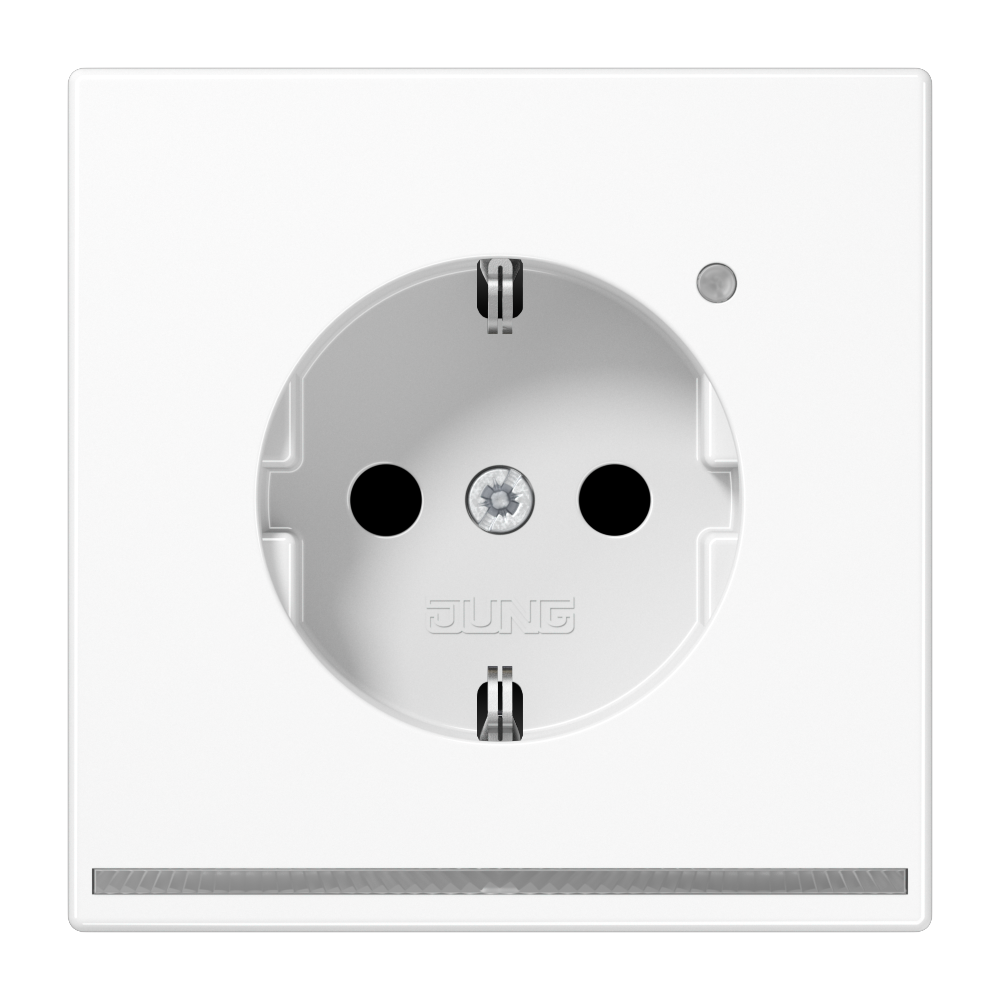

SCHUKO® socket, 16 A 250 V ~, with LED floor pilot light, Safety Plus, thermoplastic, LS range, white

LS 1520-O WW LNW

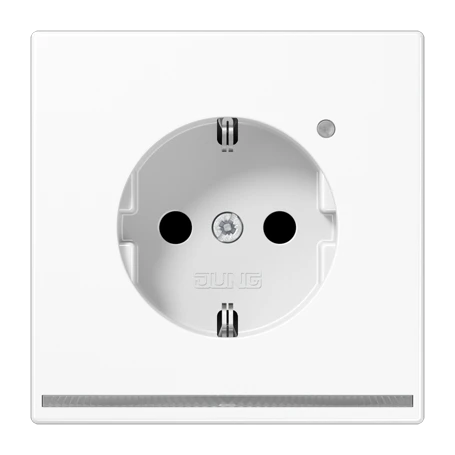

SCHUKO® socket with LED floor pilot light, Safety Plus, thermoplastic, white

LS 1520-O WW LNW

with LED floor pilot light
with integrated brightness sensor
with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

installation into deep flush box
with white LEDs (colour temperature 3500 K)
power consumption stand-by / ON: 0.3 / 0.5 W
Supporting frame, claws and claw screws are integrated into the earth protection.

Thermoplastic (breakproof) high-gloss

Read less... Read more...

Individual colour printing possible

Article number:	LS 1520-O WW LNW
EAN/GTIN:	4011377154797
Colour:	white
Material:	thermoplastic

Read less... Read more...
