SCHUKO® socket, 16 A, with USB charger (JUNG Quick Charge®), 1 x type C, Safety Plus, AS/A range, white

A 1520-18 C WW

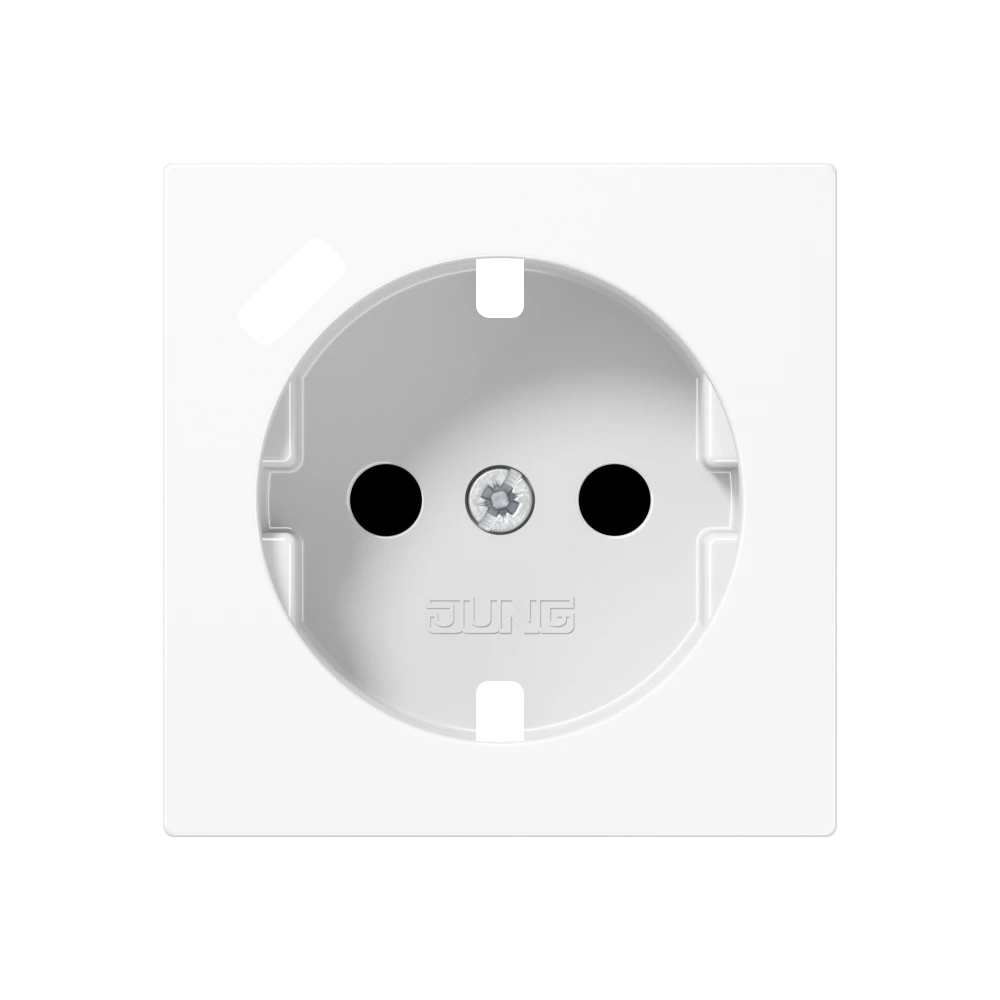

SCHUKO® socket with USB charger (JUNG Quick Charge®), Safety Plus, thermoplastic, white

A 1520-18 C WW

BPIK_C2CCertMark_Bronze_blackontransparent_v3

with enhanced contact protection / shutter (Safety Plus)
with 1 USB port type C
with quick charge function (JUNG Quick Charge^®)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

Installation in flush box with dimensions according to DIN 49073
depth of flush box (inner dimension): min. 57 mm

Thermoplastic (breakproof) high-gloss

Accessories:
Frame 28 mm structure height ref.-no.: A 558.. HBF ..
Cradle to Cradle certified

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A 1520-18 C WW
EAN/GTIN:	4011377184244
Colour:	white
Material:	thermoplastic
Type:	1 x type C
Width:	55 mm
Height:	55 mm

Read less... Read more...

Technical data

Rated voltage:	AC 220 ... 250 V ~
Mains frequency:	50/60 Hz
Rated current:	16 A
Output voltage USB:	DC 9 V / DC 5 V
Output current USB:	2 A / 3 A
Stand-by power:	≤ 25 mW
Ambient temperature:	+5 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Connection mode:	screwless terminals
single wire:	1.5 ... 2.5 mm²
stranded without ferrule:	1.5 ... 2.5 mm²

Read less... Read more...

Downloads

Show all downloads

Operating instructions	EN Select language Select language DE ES FR NL NO
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.12 KG
Length	70 MM
Height	60 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.144 KG
Length	84 MM
Height	74 MM
Width	84 MM
Palette
Packaging unit	1440 pc.
Weight	285.05 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
