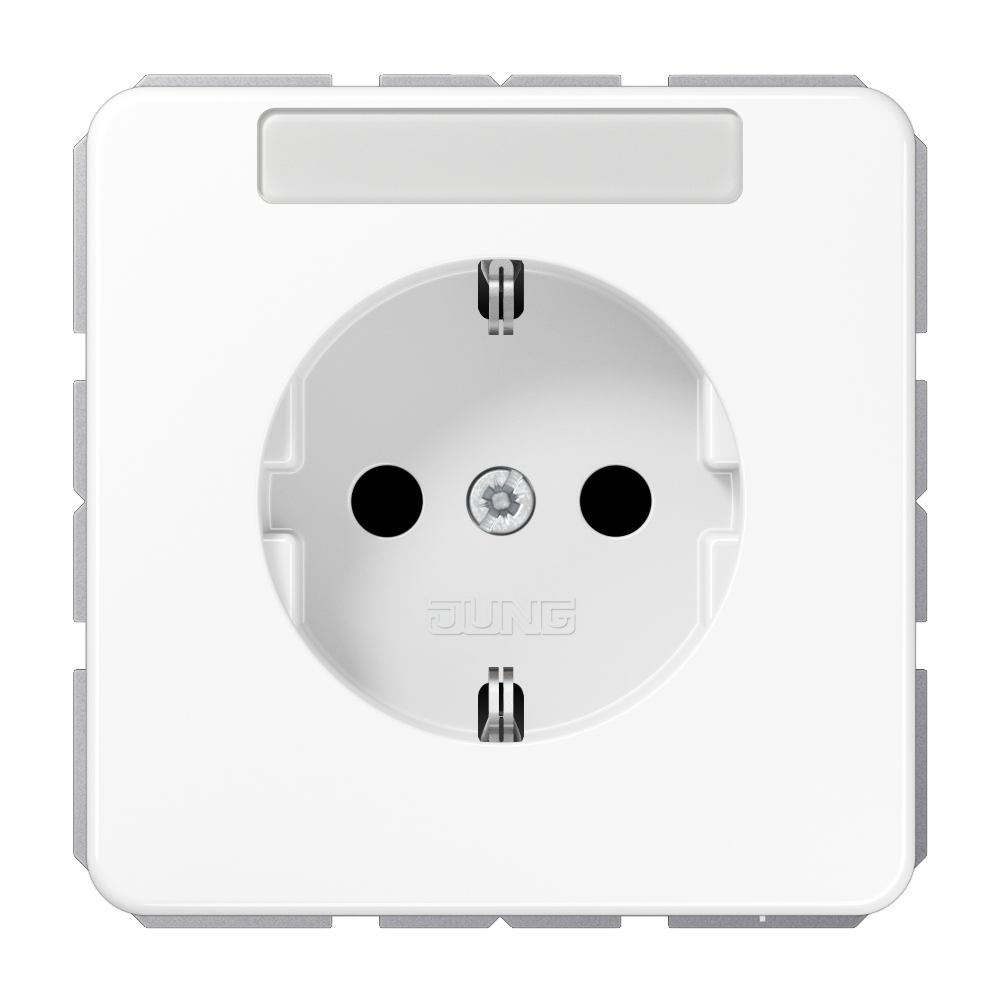

SCHUKO® socket, 16 A 250 V ~, with inscription field, thermoplastic, CD range, white

CD 1520 BFNA WW

SCHUKO® socket, with inscription field, thermoplastic, white

CD 1520 BFNA WW

with inscription field 6 x 37 mm
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Spare part:
Transparent cover with paper inlay ref.-no.: CD 20 NA

Thermoplastic (breakproof) high-gloss

Inscription fields may be customised using our GRAPHIC TOOL (jung.group/gt).

Read less... Read more...

Individual inscription of paper inlays for incription fields possible

Individual colour printing possible

Individual laser engraving possible

Article number:	CD 1520 BFNA WW
EAN/GTIN:	4011377077584
Colour:	white
Material:	thermoplastic
Connection:	screwless terminals for rigid and flexible wires
Width:	67 mm
Height:	67 mm

Read less... Read more...
