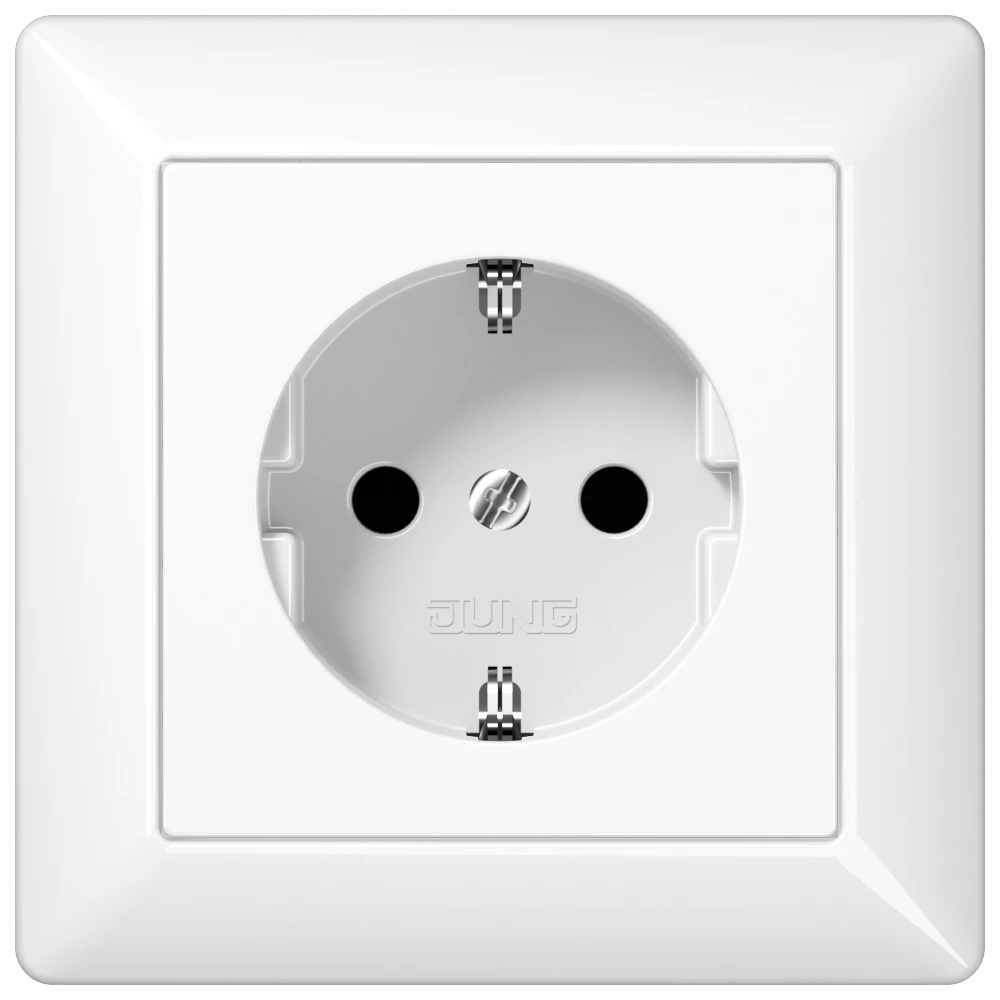

SCHUKO® socket with integrated frame, 16 A 250 V ~, duroplastic, AS range, white
AS 1520 WW
with integrated frame
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2
without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.
Duroplastic (scratch-proof) glossy
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm2
without claws: ref.-no. with additional "N", e.g.: ..1520 N..
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.
Duroplastic (scratch-proof) glossy
Read less...
Read more...
Individual colour printing possible
More articles
Information
| Article number: | AS 1520 WW |
|---|---|
| EAN/GTIN: | 4011377056916 |
| Colour: | white |
| Material: | duroplastic |
| Width: | 80.5 mm |
| Height: | 80.5 mm |
Read less...
Read more...
Downloads
| Tendering text | |
|---|---|
| EC Declaration of Conformity | |
| Article datasheet |
Read less...
Read more...
Logistic
| Single item | |
|---|---|
| Packaging unit | 1 pc. |
| Weight | 0.097 KG |
| Length | 81 MM |
| Height | 39 MM |
| Width | 81 MM |
| Carton | |
| Packaging unit | 10 pc. |
| Weight | 1.072 KG |
| Length | 290 MM |
| Height | 80 MM |
| Width | 180 MM |
| Outer carton | |
| Packaging unit | 200 pc. |
| Weight | 22.155 KG |
| Length | 575 MM |
| Height | 360 MM |
| Width | 395 MM |
| Palette | |
| Packaging unit | 3200 pc. |
| Weight | 376.48 KG |
| Length | 1200 MM |
| Height | 1620 MM |
| Width | 800 MM |
