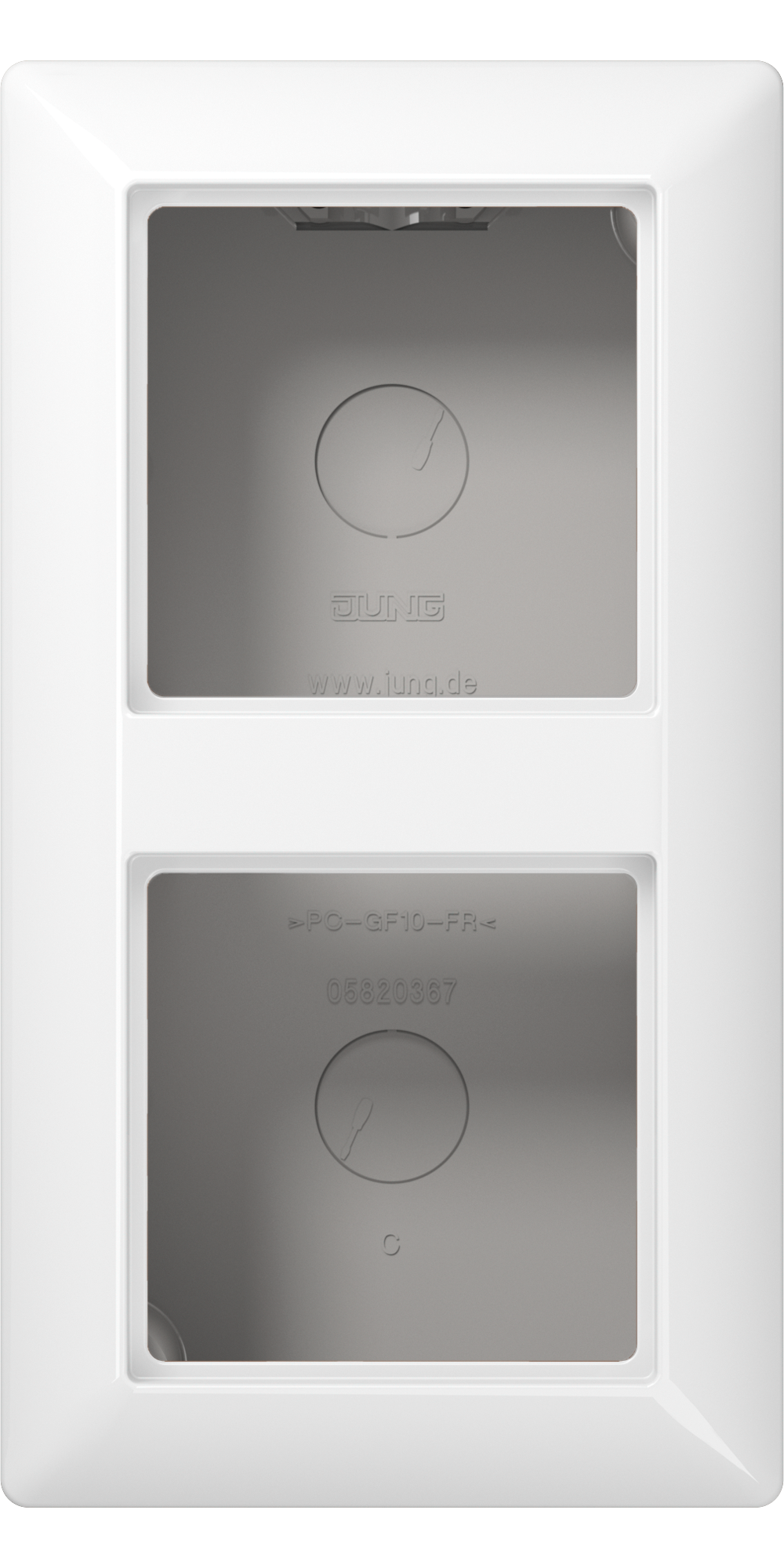

Surface cap 2-gang, AS 500 Surface-mounted, duroplastic, white, vertical and horizontal installation

AS 582 A WW

AS 582 A WW

with integrated frame and non-flammable ground plate
for inserts with covers of the AS and A ranges (except key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
156 x 85 x 47 mm
Installation depth max. 34 mm

Duroplastic (scratch-proof) glossy

Spare part:
mounting box ref.-no.: 582 A

Read less... Read more...

Individual colour printing possible

Article number:	AS 582 A WW
EAN/GTIN:	4011377338456
Colour:	white
Material:	duroplastic
Version:	2-gang

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.19 KG
Length	153 MM
Height	37 MM
Width	82 MM
Carton
Packaging unit	1 pc.
Weight	0.232 KG
Length	159 MM
Height	92 MM
Width	92 MM
Outer carton
Packaging unit	10 pc.
Weight	2.504 KG
Length	460 MM
Height	190 MM
Width	192 MM
Palette
Packaging unit	640 pc.
Weight	182.256 KG
Length	1200 MM
Height	1400 MM
Width	800 MM
