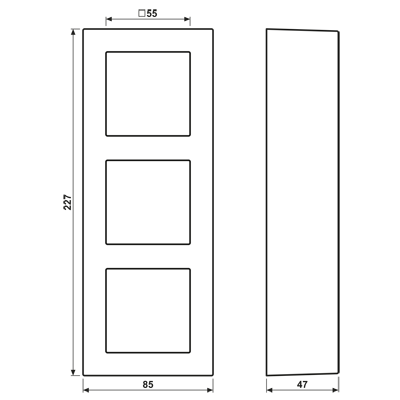

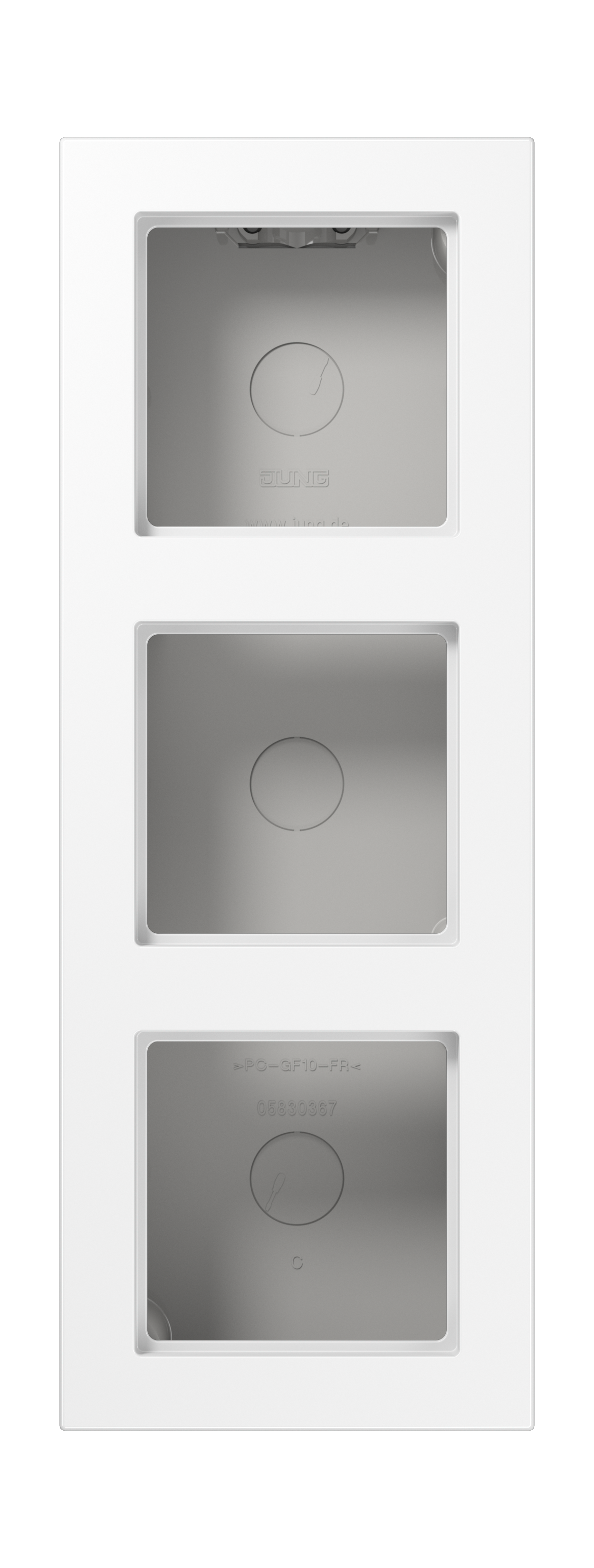

Surface cap 3-gang, A CUBE, thermoplastic, white, vertical and horizontal installation

A 5583 BF A WW

A 5583 BF A WW

with integrated frame and non-flammable ground plate
for inserts with covers of the A range (except key switches ref.-no. ..15, 3-level-switch and socket for Switzerland type 13)
227 x 85 x 47 mm
Installation depth max. 34 mm

Thermoplastic (breakproof) high-gloss

Spare part:
mounting box ref.-no.: 583 A

Read less... Read more...

Individual colour printing possible

Individual laser engraving possible

Article number:	A 5583 BF A WW
EAN/GTIN:	4011377212114
Colour:	white
Material:	thermoplastic
Version:	3-gang

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.234 KG
Length	226 MM
Height	48 MM
Width	84 MM
Carton
Packaging unit	1 pc.
Weight	0.294 KG
Length	232 MM
Height	94 MM
Width	96 MM
Outer carton
Packaging unit	10 pc.
Weight	3.178 KG
Length	460 MM
Height	195 MM
Width	240 MM
Palette
Packaging unit	360 pc.
Weight	142.528 KG
Length	1200 MM
Height	1610 MM
Width	800 MM
