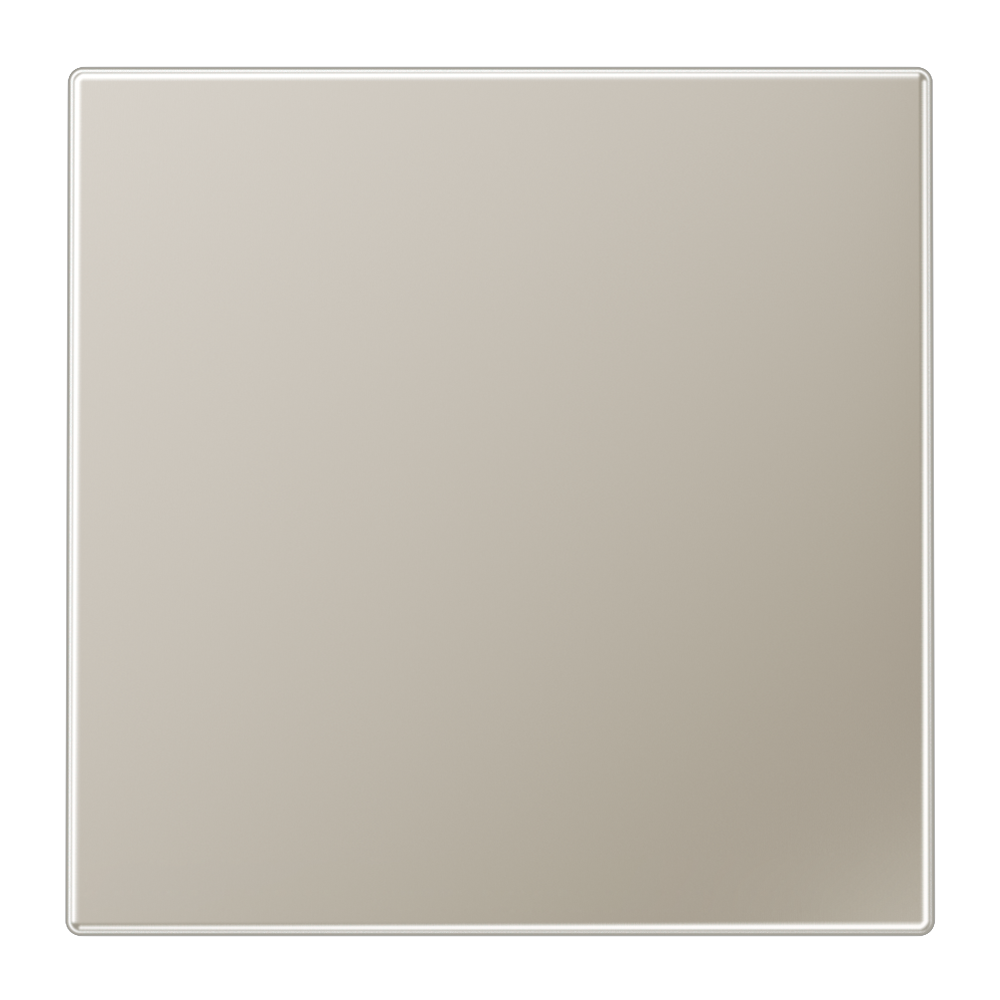

UPS module, thermoplastic lacquered, LS range, stainless steel

NRS ES 0834 USV-L

NRS ES 0834 USV-L

screw fixing only, without claws
without frame
for bridging power failures
installation into deep flush box

for LS range
metal colours (thermoplastic lacquered)

Read less... Read more...

Individual colour printing possible

Article number:	NRS ES 0834 USV-L
EAN/GTIN:	4011377337473
Colour:	stainless steel
Material:	thermoplastic lacquered

Read less... Read more...

Technical data

Input voltage:	DC 24 V from power supply (ref.-no.: NRS .. 0834 NT ..)
Output voltage in battery operation:	DC 22.8 V, ± 10 %
Rated load:	130 mA in battery operation for 1 hour
Maximum load, battery-operated:	300 mA for 15 minutes
Maximum load, mains-operated:	250 mA

Read less... Read more...
