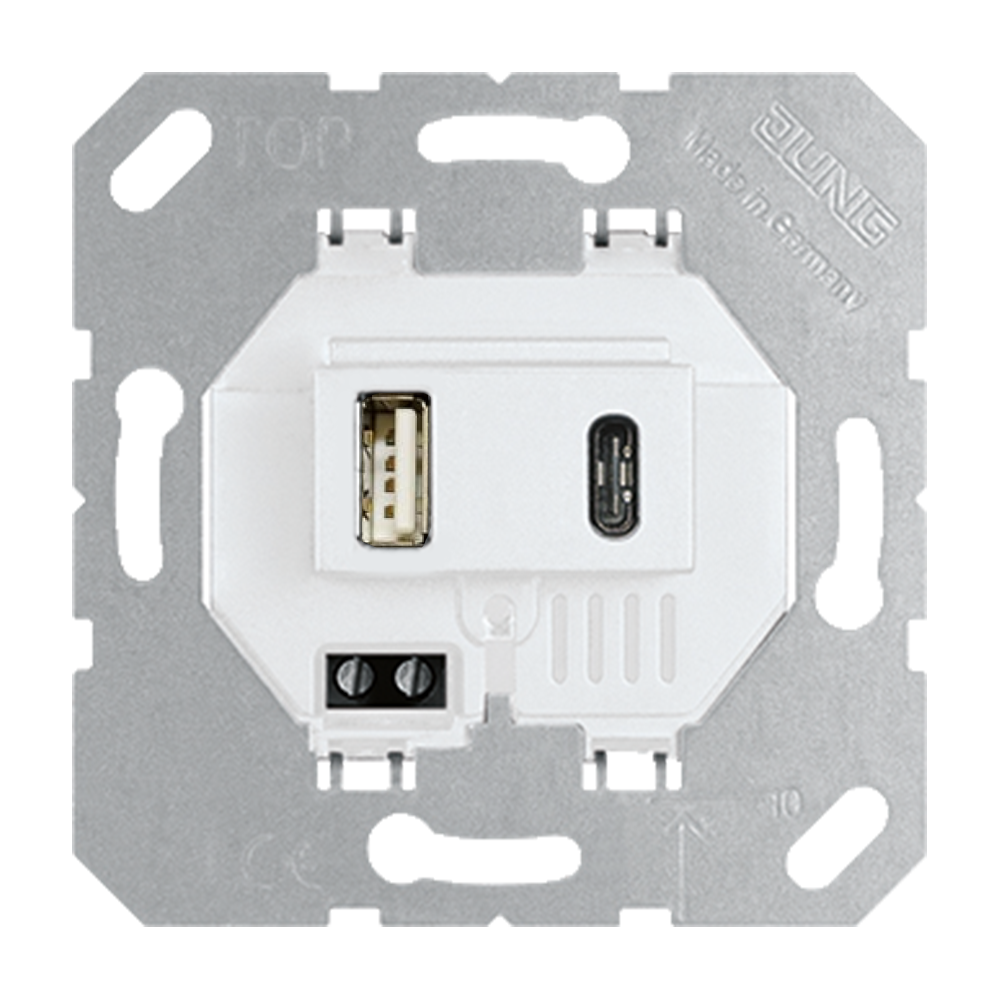

USB charger, 1 x type A + 1 x type C, white

USB 15 CA WW

USB 15 CA WW

with 1 USB port type A and 1 USB port type C
screw fixing only, without claws

Intended use

Battery charging station for mobile devices with USB connection
Installation in flush box with dimensions according to DIN 49073

Product characteristics

Simultaneous charging of 2 devices possible
Installation into multiple frame with other devices possible
Charging current: max. 3000 mA

Centre plates:

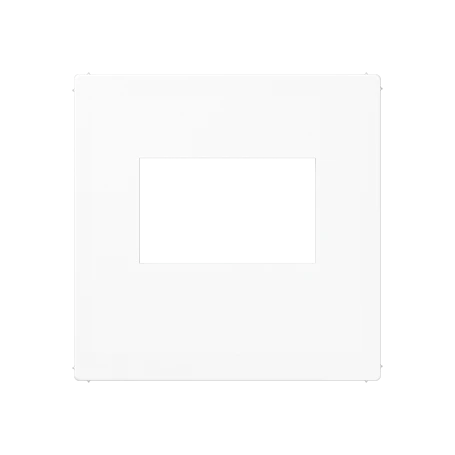

AS / A ranges: ref.-no. A 1569 USB ..
CD range: ref.-no. CD 569 T ..

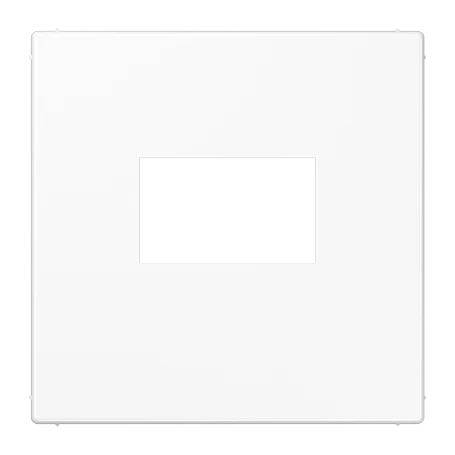

LS range: ref.-no. .. 1969 USB ..
Hinged lids with symbol:

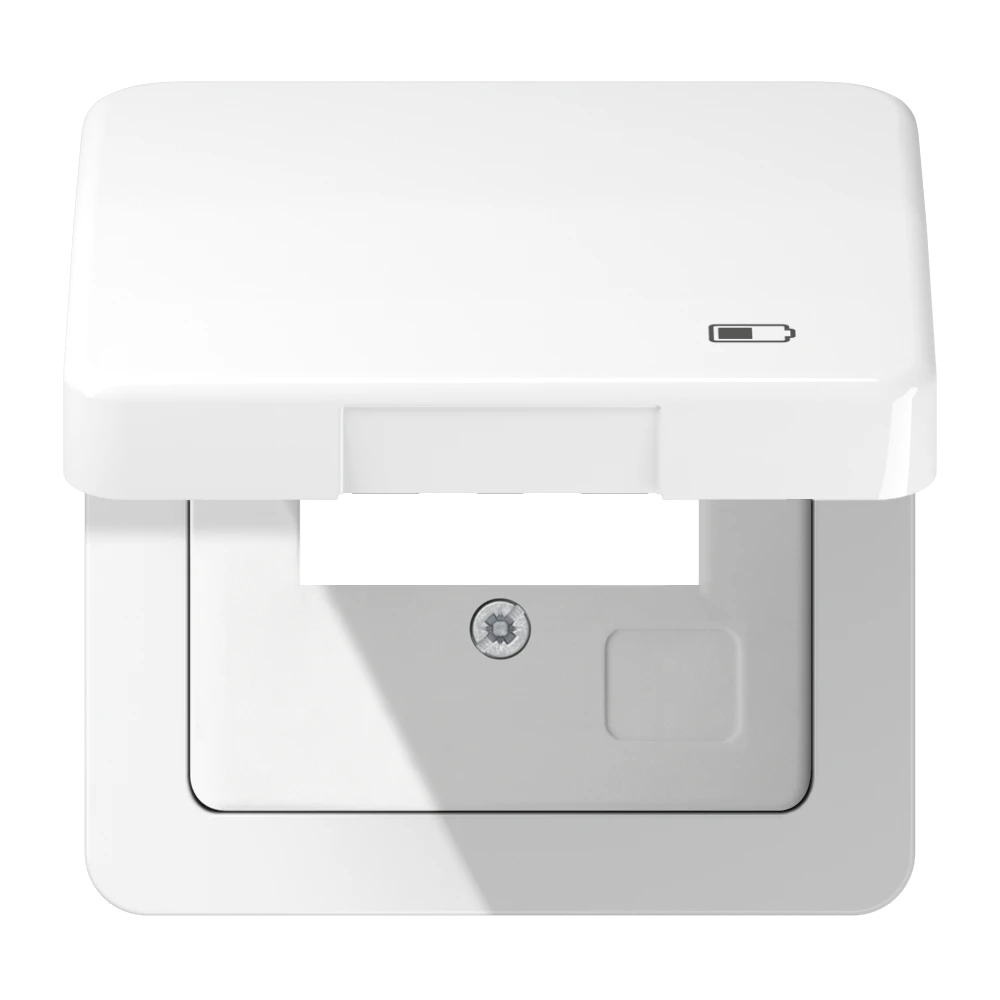

CD range: ref.-no. CD 590 KL USB ..

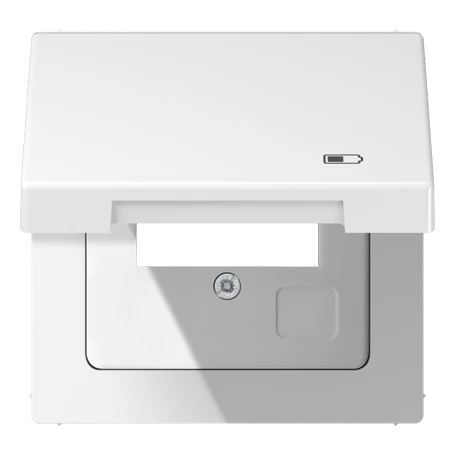

LS range: ref.-no. LS 990 BFKL USB .., .. 2990 KL USB ..

Article number:	USB 15 CA WW
EAN/GTIN:	4011377176836
Colour:	white

Input voltage:	AC 100 ... 240 V ~ ± 10 %
Mains frequency:	50/60 Hz
Ambient temperature:	0 ... +35 °C
Storage/transport temperature:	−20 ... +70 °C
Stand-by power consumption at U_IN = 230 V ~:	≤ 0.1 W
Connection mode:	screw terminals
Output voltage:	DC 5 V (± 5 %)
Output current
AC 120 ... 240 V ~	max. 3000 mA
AC 90 ... 108 V ~	max. 2500 mA

Operating instructions	EN Select language Select language DE ES FR NL NO RU ZH
Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Single item
Packaging unit	1 pc.
Weight	0.08 KG
Length	70 MM
Height	44 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.108 KG
Length	84 MM
Height	70 MM
Width	84 MM
Outer carton
Packaging unit	10 pc.
Weight	1.198 KG
Length	362 MM
Height	88 MM
Width	178 MM
Palette
Packaging unit	1200 pc.
Weight	171.1 KG
Length	1200 MM
Height	1490 MM
Width	800 MM
