including transparent cover ref.-no.: LS 50 NA
including mounting plate, adhesive film and fastening screw
for cover kit 4-gang, ref.-no.: ..504 TSA .. in the LS range
Cannot be combined with frames in FLAT DESIGN.

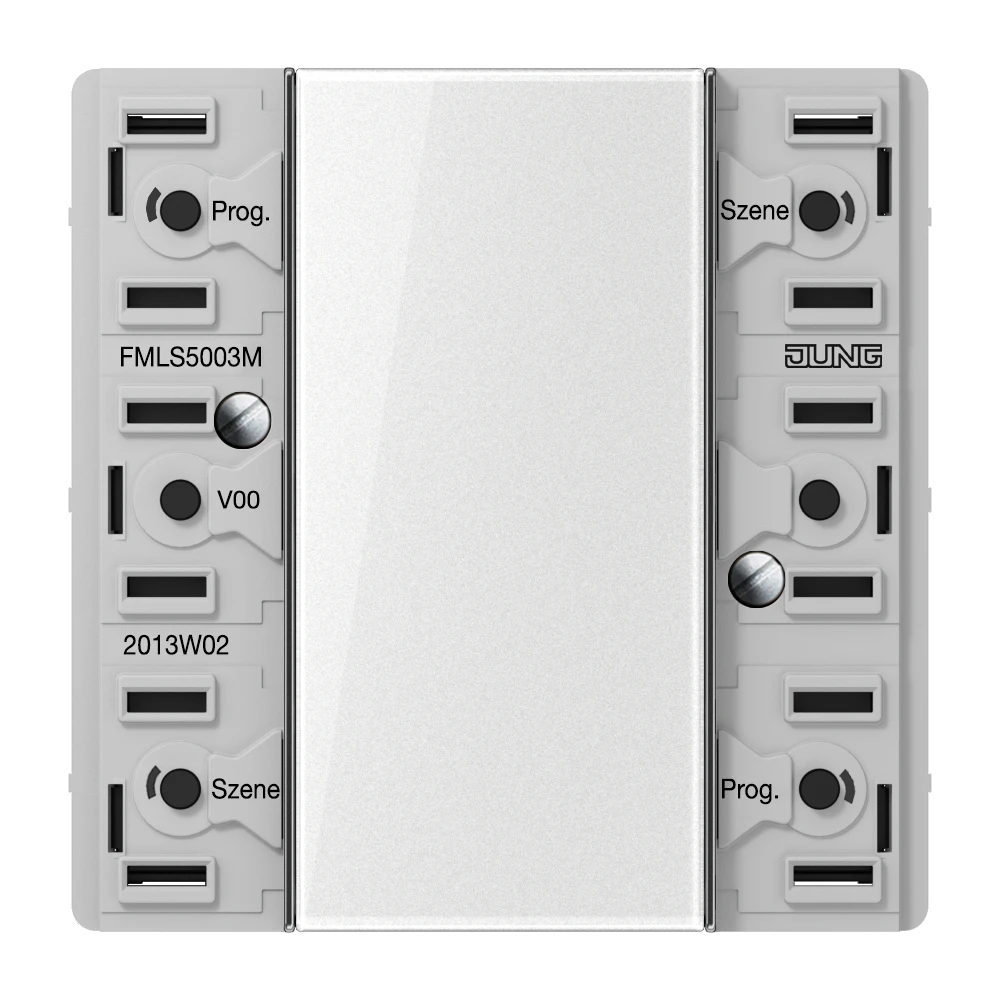

Intended use- Radio sensor for transmission of switching, dimming, blind movement and scene commands
- Operation with radio actuators from the eNet system
- Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics- Two adjacent buttons each belong to one channel
- Display of the actuator status for status poll by a green LED per channel
- Display of the transmission status by a red LED
- Switch-on brightness of dimmer actuators can be saved
- Battery-powered device (battery compartment accessible from front)
- Signalling of transmission errors can be switched off
Can be set with eNet server:
- Scene All On
- Operating locks
Supplementary functions with eNet server:
- Fully-encrypted radio transmission (AES-CCM) from eNet server software version 2.0
- Update of the device software
Spare part:Spare part:transparent cover ref.-no.: LS 50 NA
Accessories:Accessories:Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW, LS 50 NA WWM, LS 50 NA SWM, AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA C-L
Cover, suitable for backlighting ref.-no.: LS 50 NA TX SW-L
