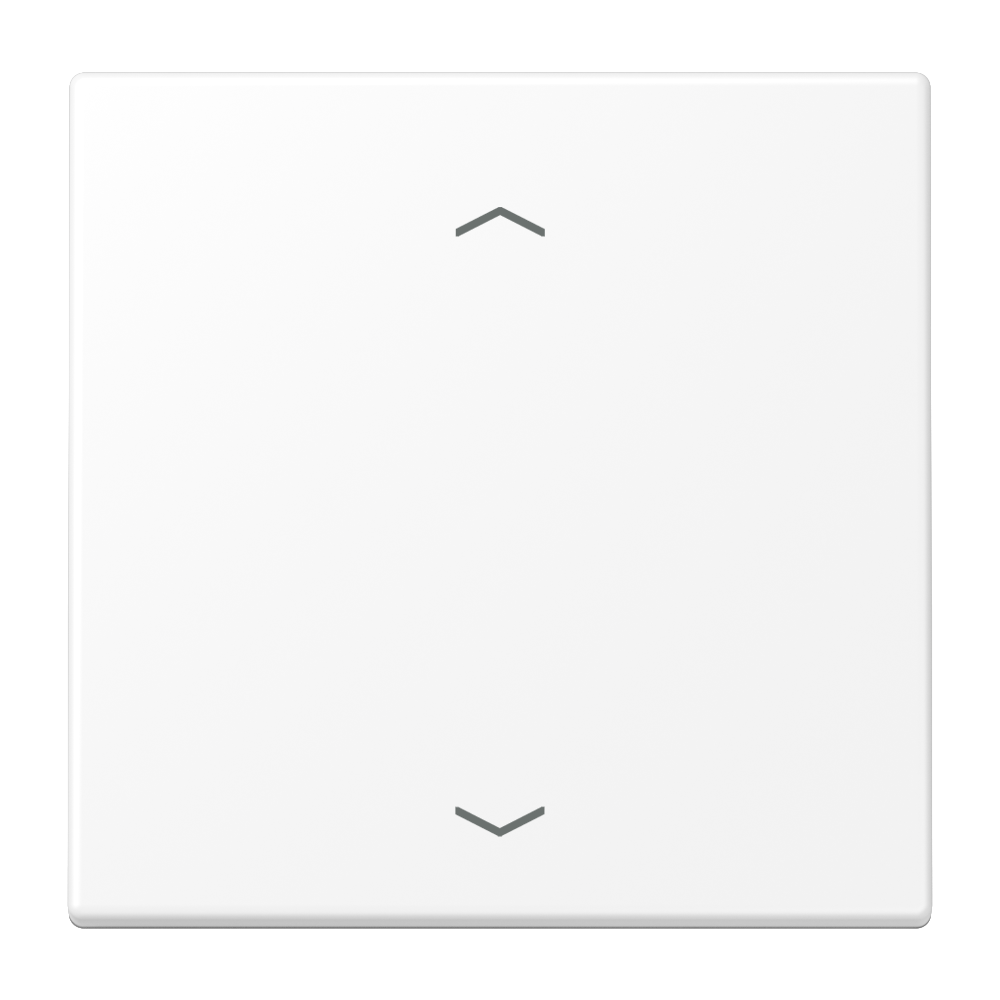

EnOcean radio transmitter, 2-channel, with arrow symbols, thermoplastic lacquered, LS range, matt snow white

ENO LS 990 P WWM

EnOcean radio transmitter, 2-channel, matt snow white
arrow-slider
arrow-slider
  • EnOcean radio transmitter, 2-channel, matt snow white
arrow-left-slim
arrow-right-slim
  • EnOcean radio transmitter, 2-channel, matt snow white
ENO LS 990 P WWM
BPIK_Battery-free_by_EnOcean
BPIK_enocean_alliance_ing_logo_1c_black
BPIK_Elektrogeraete_Ruecknahme
arrow-left-slim
arrow-right-slim
  • EnOcean radio transmitter, 2-channel, matt snow white
2-channel
including mounting plate, adhesive film and retaining screw

Intended use
  • Radio transmitter for the transmission of switching, dimming or shutter commands to radio receivers of the EnOcean radio system
  • Mounting on flush box with dimensions according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)

Product characteristics
  • Battery-free device without external power supply
  • Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
  • Configuration interface: NFC Forum Type 2 Tag (ISO/IEC 14443 Part 2 + 3)
  • Optional: Encrypted transmission with AES-128 and sequence counter


matt lacquered
Read less... Read more...
BPIK_Battery-free_by_EnOcean
BPIK_enocean_alliance_ing_logo_1c_black
BPIK_Elektrogeraete_Ruecknahme
More articles

Information

Article number: ENO LS 990 P WWM
EAN/GTIN: 4011377203990
Colour: matt snow white
Version: 2-channel
Read less... Read more...

Technical data

Carrier frequency:868 MHz (ASK)
Transmission range
in free field:up to 300 m
Transmission range in buildings:approx. 30 m
Transmitting power:−1.9 dBm / 0.7 mW
Ambient temperature:−5 ... +45 °C
Storage/transport temperature:−25 ... +65 °C
Atmospheric humidity:0 ... 95 % (no condensation)
Read less... Read more...
Downloads
Show all downloads
Operating instructions
EN
Select language
Select language
DE
ES
FI
FR
NL
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
EC Declaration of Conformity
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.07 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.807 KG
Length 235 MM
Height 92 MM
Width 175 MM
Read less... Read more...

Frames

LS 981 WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
LSP 981 GLAS

Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)
Glass frame 1-gang, soft white (1-gang, 115 x 115 x 11 mm)
LSZ 981 BF WWM

Frame 1-gang, matt snow white
Frame 1-gang, matt snow white
LS 581 A WWM

Surface cap 1-gang, matt snow white
Surface cap 1-gang, matt snow white

Spare parts

80 KLEFO-2

Adhesive film for 2 radio transmitters
Adhesive film for 2 radio transmitters
80 KLEFO

Adhesive film for 1 radio transmitter
Adhesive film for 1 radio transmitter

Serves as spare part for

ENO LS 42 F

EnOcean module, for 2- and 4-channel applications
EnOcean module, for 2- and 4-channel applications
