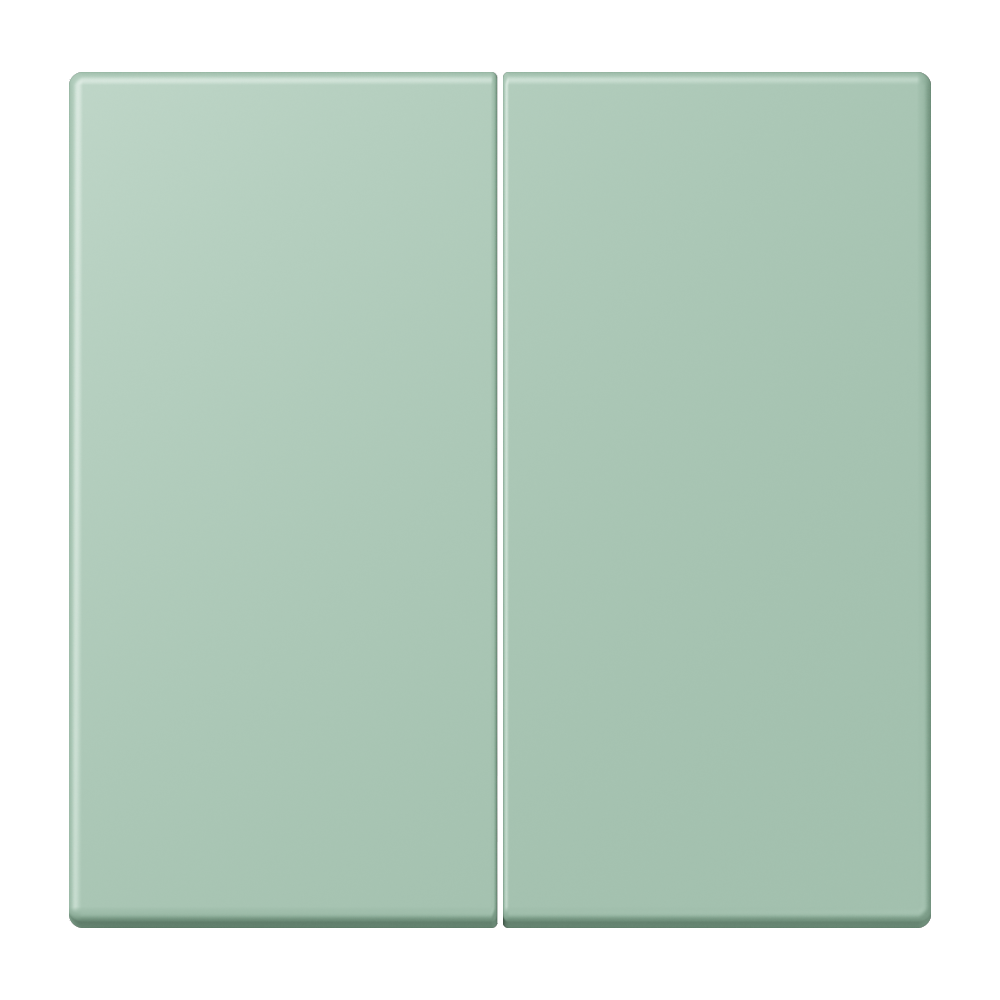

Rocker 2-gang, duroplastic lacquered, LS range, vert anglais clair (32041)

LC 995 217

Rocker 2-gang, vert anglais clair (32041)
arrow-slider
arrow-slider
  • Rocker 2-gang, vert anglais clair (32041)
arrow-left-slim
arrow-right-slim
  • Rocker 2-gang, vert anglais clair (32041)
LC 995 217
arrow-left-slim
arrow-right-slim
  • Rocker 2-gang, vert anglais clair (32041)
for switch ref.-no.: 505 U, 509 U, 505-20 U, 509-20 U
for push-button ref.-no.: 535 U, 539 U
for multi push-button ref.-no.: 532-4 U (not metal versions)
in combination with multi push-button no IP44 possible

matt lacquered

Spare part:
holder plate ref.-no.: CD 95 HP

For illuminated inserts use rocker with lens ref.-no.: ..KO...

Read less... Read more...
Individual colour printing possible
More articles

Information

Article number: LC 995 217
EAN/GTIN: 4011377265110
Colour: vert anglais clair
Material: duroplastic lacquered
Width: 70 mm
Height: 70 mm
Read less... Read more...
Downloads
Show all downloads
Tendering text
EN
Select language
Select language
DE
AT
AE
GB
SG
ES
EE
FR
IT
LT
LV
NL
PL
PT
RU
UA
ZH
Article datasheet
EN
Select language
Select language
DE
AE
GB
SG
US
ES
EE
FR
IT
KR
LT
LV
NL
PL
PT
RU
SE
TR
UA
ZH
Read less... Read more...

Logistic

Single item
Packaging unit 1 pc.
Weight 0.055 KG
Length 82 MM
Height 45 MM
Width 82 MM
Carton
Packaging unit 10 pc.
Weight 0.677 KG
Length 235 MM
Height 92 MM
Width 175 MM
Read less... Read more...

Inserts

All products
509 U

2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~
509-20 U

2-gang switch (insert), 2 x 1-pole, 2-way, 20 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 2-way, 20 AX, 250 V ~
505 U

2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
505-20 U

2-gang switch (insert), 2 x 1-pole, 1-way, 20 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way, 20 AX, 250 V ~

Inserts

509 U

2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~
509-20 U

2-gang switch (insert), 2 x 1-pole, 2-way, 20 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 2-way, 20 AX, 250 V ~
505 U

2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
505-20 U

2-gang switch (insert), 2 x 1-pole, 1-way, 20 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way, 20 AX, 250 V ~
532-4 U

2-gang multi push-button (insert), 2 x 1-pole, 2-way push-button with 4 floating 1-way NO contacts, rocker in neutral position, 10 A, 250 V ~
2-gang multi push-button (insert), 2 x 1-pole, 2-way push-button with 4 floating 1-way NO contacts, rocker in neutral position, 10 A, 250 V ~
501-2 USI

2-gang switch (insert), 2 x 1-pole, 1-way (separate circuits), 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way (separate circuits), 10 AX, 250 V ~
505 EU

2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 1-way, 10 AX, 250 V ~
509 EU

2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~
2-gang switch (insert), 2 x 1-pole, 2-way, 10 AX, 250 V ~

Frames

LC 981 217

Frame 1-gang, vert anglais clair (32041)
Frame 1-gang, vert anglais clair (32041)
LC Z981 BF 217

Frame 1-gang, vert anglais clair (32041)
Frame 1-gang, vert anglais clair (32041)
LC 581 A 217

Surface cap 1-gang, vert anglais clair (32041)
Surface cap 1-gang, vert anglais clair (32041)

Additional items

W-KEIL

Tastenheber
Tastenheber
