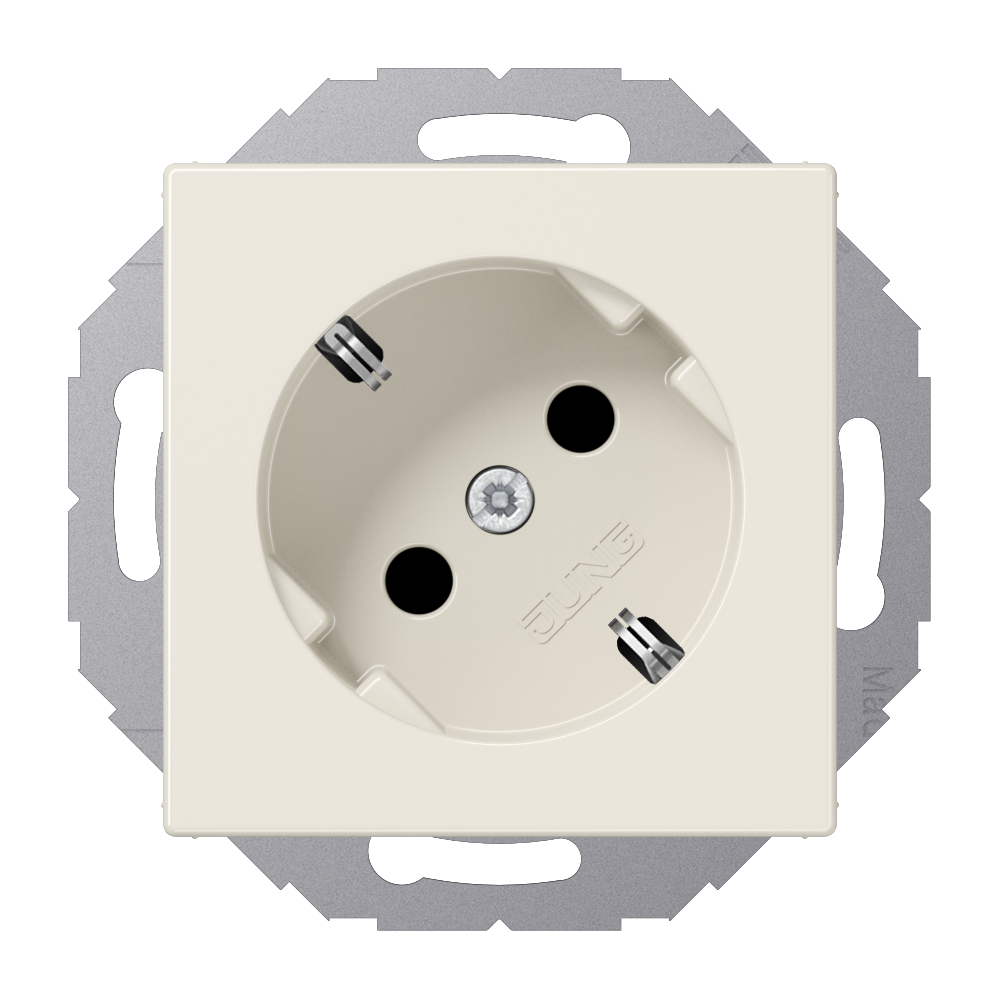

SCHUKO® socket 45°, 16 A 250 V ~, Safety Plus, mit nicht geerdetem Tragring, duroplastic, AS range, ivory

A 520-45 KI

SCHUKO® socket 45°, Safety Plus, duroplastic, ivory

A 520-45 KI

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

especially suitable for vertical combination of several sockets
without claws: ref.-no. with additional "N", e.g.: ..520-45 N..

Duroplastic (scratch-proof) glossy

Read less... Read more...

discontinued

Date of discontinuation 31.10.2026

Individual colour printing possible

Article number:	A 520-45 KI
EAN/GTIN:	4011377994362
Colour:	ivory
Material:	duroplastic
Connection:	screwless terminals for rigid wires up to 2.5 mm2
Width:	55 mm
Height:	55 mm
Date of discontinuation:	31.10.2026

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH
