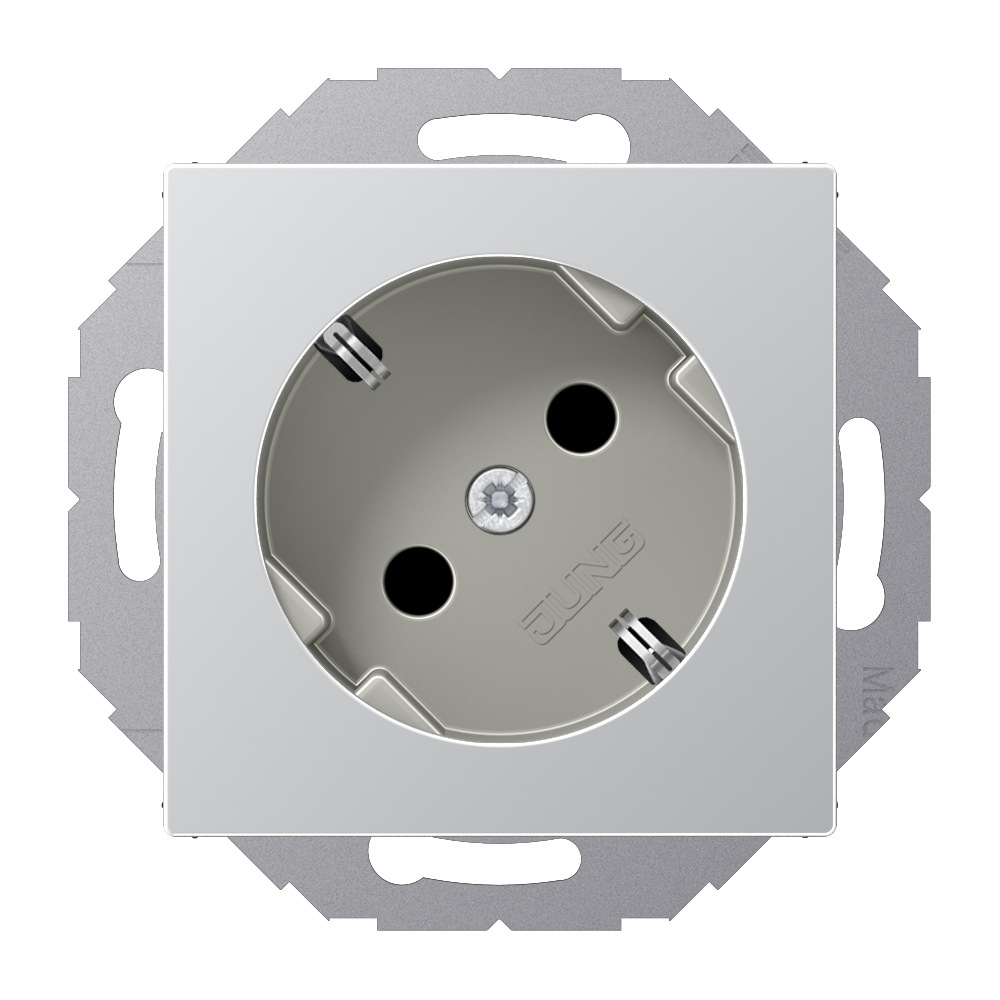

SCHUKO® socket 45°, 16 A 250 V ~, Safety Plus, mit nicht geerdetem Tragring, duroplastic lacquered, A range, aluminium

A 520-45 KI AL

SCHUKO® socket 45°, Safety Plus, duroplastic lacquered, aluminium

A 520-45 KI AL

with enhanced contact protection / shutter (Safety Plus)
with screwless terminals for rigid wires up to 2.5 mm²

especially suitable for vertical combination of several sockets
without claws: ref.-no. with additional "N", e.g.: ..520-45 N..

Duroplastic lacquered

Read less... Read more...

discontinued

Date of discontinuation 31.10.2026

Individual colour printing possible

Individual laser engraving possible

Article number:	A 520-45 KI AL
EAN/GTIN:	4011377994386
Colour:	aluminium
Material:	duroplastic lacquered
Connection:	screwless terminals for rigid wires up to 2.5 mm2
Width:	55 mm
Height:	55 mm
Date of discontinuation:	31.10.2026

Read less... Read more...
