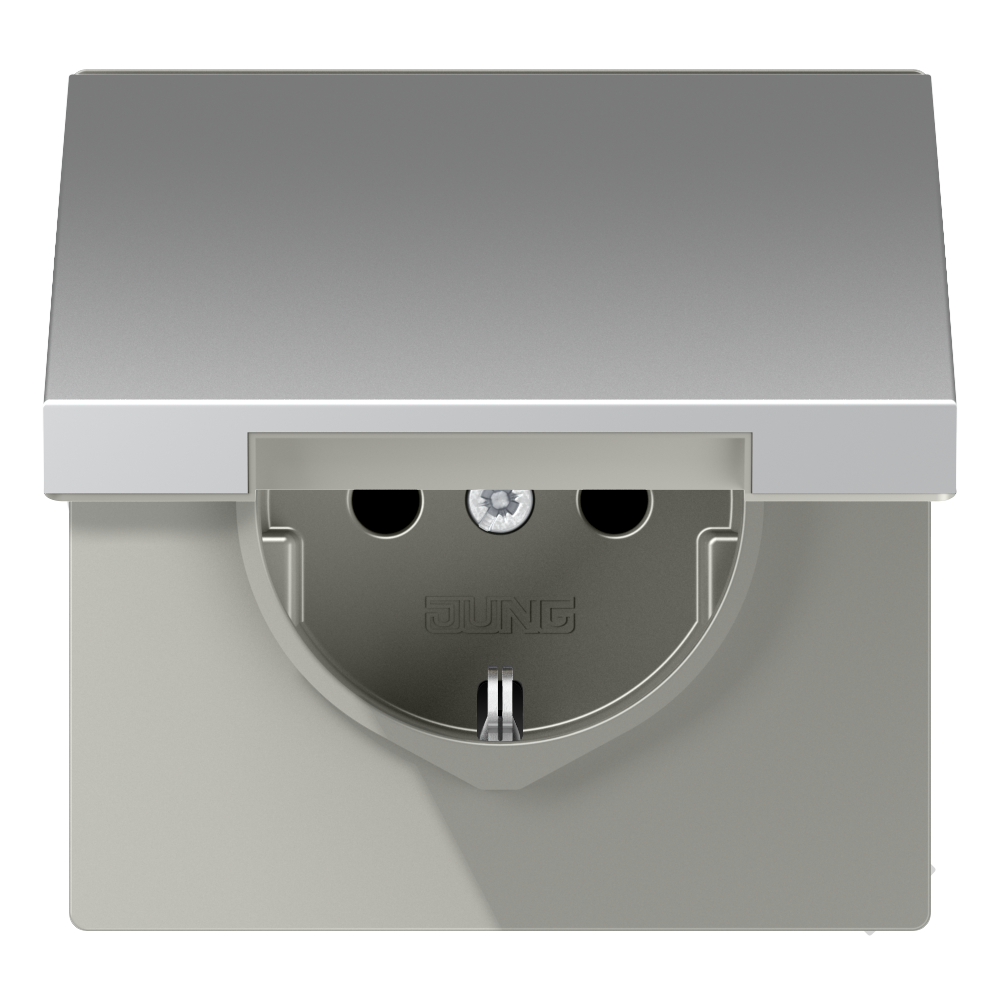

SCHUKO® socket, 16 A 250 V ~, hinged lid, LS range, aluminium

AL 1520 KL

AL 1520 KL

with hinged lid (with spring)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Metal versions not suitable for ceiling installation.
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Read less... Read more...

Degree of protection IP44 is ensured with sealing gasket ref.-no. 551 WU and "IP44 frame" of the respective design range.

Individual colour printing possible

Individual laser engraving possible

Article number:	AL 1520 KL
EAN/GTIN:	4011377064072
Colour:	aluminium
Material:	aluminium AlMg1
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.101 KG
Length	71 MM
Height	40 MM
Width	71 MM
Carton
Packaging unit	10 pc.
Weight	1.115 KG
Length	290 MM
Height	80 MM
Width	180 MM
Palette
Packaging unit	2240 pc.
Weight	324.56 KG
Length	1200 MM
Height	1476 MM
Width	800 MM
