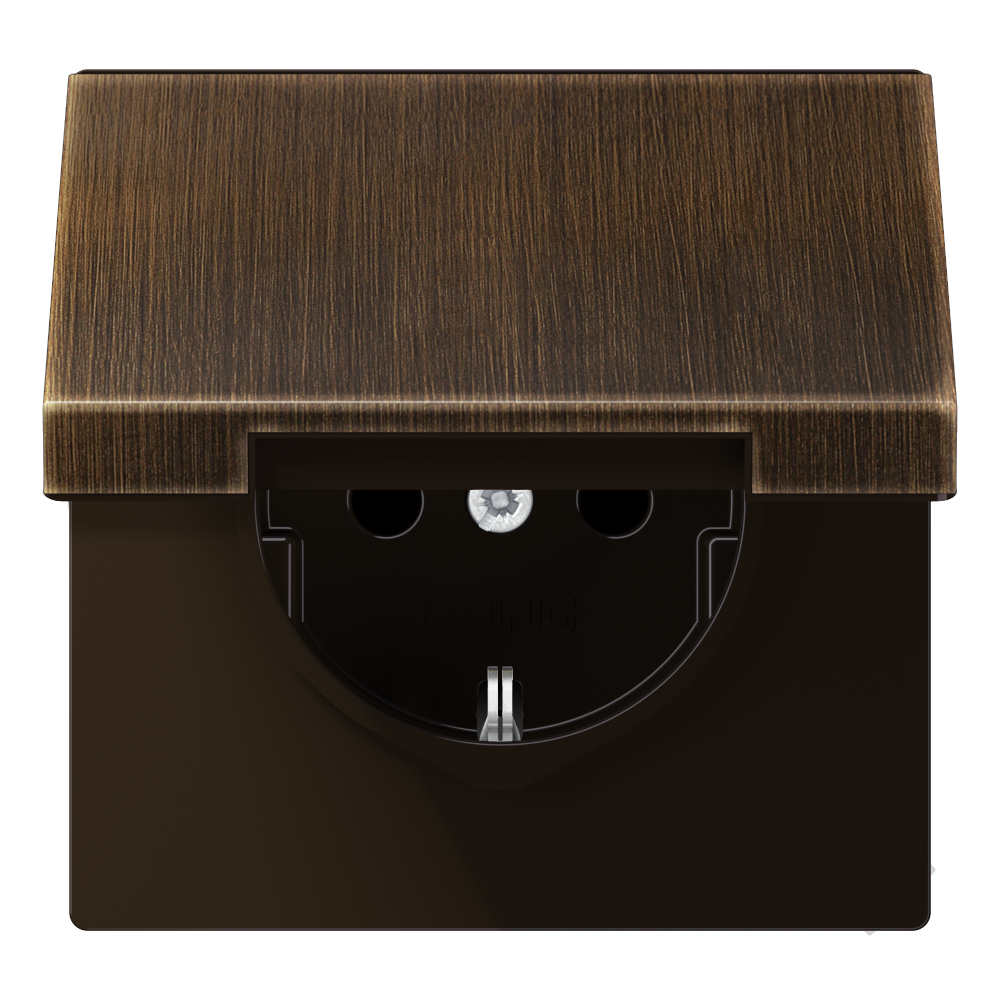

SCHUKO® socket, 16 A 250 V ~, hinged lid, LS range, antique brass

ME 1520 KL AT

ME 1520 KL AT

with hinged lid (with spring)
with screwless terminals for rigid and untreated flexible wires up to 2.5 mm²

without claws: ref.-no. with additional "N", e.g.: ..1520 N..
Metal versions not suitable for ceiling installation.
with screw terminals: ref.-no. ..1521..
Supporting frame, claws and claw screws are integrated into the earth protection.

Metal versions

Accessories:
Black screws ref.-no.: S-NFB SCHUKO SW

Read less... Read more...

Individual colour printing possible

Article number:	ME 1520 KL AT
EAN/GTIN:	4011377113091
Colour:	antique brass
Material:	brass
Connection:	screwless terminals for rigid and flexible wires
Width:	70 mm
Height:	70 mm

Read less... Read more...

Downloads

Show all downloads

Tendering text	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
EC Declaration of Conformity	EN Select language Select language DE AT AE GB SG ES EE FR IT LT LV NL PL PT RU UA ZH
Article datasheet	EN Select language Select language DE AT AE GB SG US ES EE FR IT KR LT LV NL PL PT RU SE TR UA ZH

Read less... Read more...

Logistic

Single item
Packaging unit	1 pc.
Weight	0.112 KG
Length	70 MM
Height	48 MM
Width	70 MM
Carton
Packaging unit	1 pc.
Weight	0.13 KG
Length	85 MM
Height	73 MM
Width	85 MM
Outer carton
Packaging unit	10 pc.
Weight	1.426 KG
Length	360 MM
Height	90 MM
Width	175 MM
